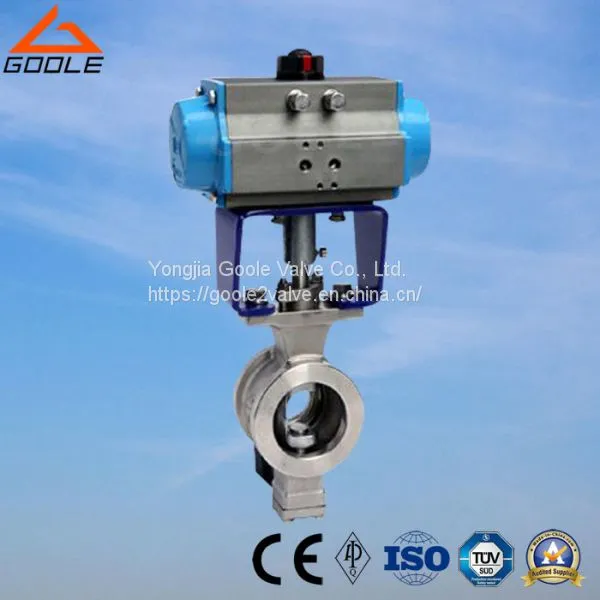

Help CenterZSHV Wafer Type Pneumatic V-Port Ball Valve/V-Port Control Valve
Related Products
-
Self-Operated Pressure Control Valve (GAZZYP / GAZZCP/ GAZZVP)US$ 2 - 50MOQ: 10 Pieces -
Electric Actuated Cage Type Pressure Balanced Flow Control Valve (GZDLM)US$ 2 - 50MOQ: 10 Pieces
-
Electric High Pressure Angle Type Forged Control Valve (GZDLS)US$ 2 - 50MOQ: 10 Pieces
-
Electric Three Way (3-way) Diverting Flow Regulating Valve (ZDLX)US$ 2 - 50MOQ: 10 Pieces
-
PTFE Lining Pneumatic Diaphragm Valve Weir Type (GHTGUS$ 2 - 50MOQ: 10 Pieces
ZSHV Wafer Type Pneumatic V-Port Ball Valve main parameters.
Nominal pressure: PN1.6~6.4MPa
Nominal diameter: 20~400mm
Appliable Temperature : Hard Seal:-40~300ºC
Soft Seal: -40~180ºC
Applicable medium:Water,gas,oil quality and so on.
Driving Means:Manual ,Electric, Worm wheels
Body materials : WCB, CF8, CF8M, CF3M
Stem: 2Cr13, 304, 316
Rotary angle : 90°
Valve Seat : PTFE, 0Crl, 7Ni4Cu4Nb
Core Material : CF8, CF8M, CF3M.
ZSHV Wafer Type Pneumatic V-Port Ball Valve Product Feature.
1. The shear force between the ball and the metal seat type V incision, especially suitable for containing fiber and small solid particle, pulp and other medium.
2. Fully open flow capacity, small pressure loss, and the media will not deposit in the body cavity.
3. Using a spring-loaded movable seat structure , Preventing the occurrence of ball core and valve seat from jamming or other issues, reliable sealing and long service life.
4. The valve has the advantages of accurate regulation and reliable positioning function, approximately equal percentage flow characteristics, large adjustable range, the maximum adjustable ratio 100:1.
Nominal diameter DN, Rated flow coefficient Kv, Allowable pressure difference.
| DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Kv | 22 | 36 | 58 | 82 | 145 | 200 | 355 | 798 | 418 | 2209 | 3185 | 4309 | 5664 |
| P(MpA) | 14 | 8 | 10 | 9 | 20 | 14 | 8 | 6 | 3.5 | 1.6 | 2.5 | 2 | 1.5 |
