Electric Angle Type Single Seat Forged Control Valve (GZDLS)
- 10000 Piece / Pieces per Month
- Ningbo
- T/T L/C Other
- 45 days
Product Details
Brand Name: | GOOLE | Place of Origin: | China | Model Number: | GZDLS |
Material: | Stainless Steel | Application: | General | Structure: | Other, globe |
Standard or Nonstandard: | Standard | Pressure: | Medium Pressure | Power: | Pneumatic |
Media: | Gas | Temperature of Media: | Normal Temperature |
Product Description

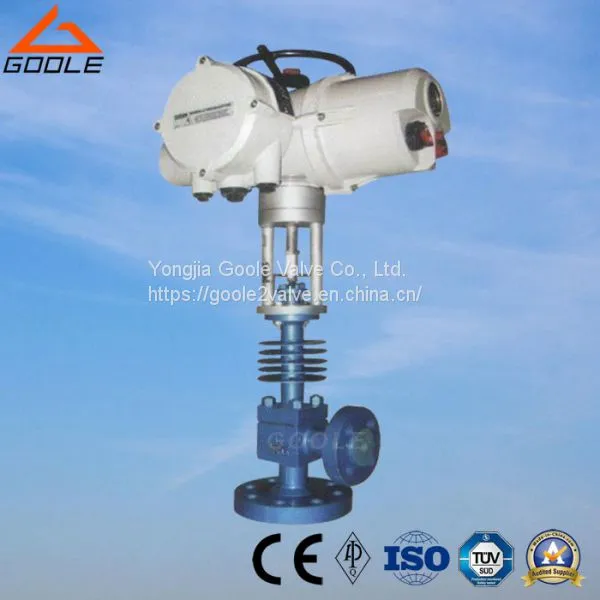

ZDLS Electric Actuated Quick Cross Angle Type Single Seat Flow Control Valve
Brief Introduction
ZDLS Electric Actuated Quick Cross Angle Type Single Seat Flow Control Valve adopt top-guided structure. It has following advantages: Precise valve body , S-Pattern Flow Port, Small Pressure Drop, Big Adjusting Range and High Precision of Flow Cv Value. The Dis-guiding area is big. It also has strong aseismic performance. The sealing performance is conformed to Standard GB/T4213-92.
Such control valve uses small, strong and high precision electric actuator with On-Off Function or with 4-20mA DC or 1-5V direct current signal to realize valve's proportional action, which is more suitable for the working condition required reliable and high sealing performance, High Temperature or Low temperature or High Pressure.
Standard technical specification
Valve Body
Type: Straight Through Single Seat Cast Steel Globe Valve
Size: DN20-300
Pressure: PN16~PN100, Class 150LB ~ Class 600LB
Connection: RF(Standard), Threaded, Welded
Flange Facing: Raised Face
Face to Face dimension: GB12221-89
Material: WCB, 304,316
Bonnet Type: Gland
Packing: V tupe PTFE, Flexible Graphite
Gasket: Plain Type, PTFE, SS+Graphite
Valve Trim
Disc: Single Seat Plug Type
Sleeve: Metal Sealing(Equal Percentage, Linear)
RPTFE (Equal Percentage, Linear)
Actuator
Type: Electric Actuator
Model: 381LSA/XA-08, 381LSA/XA-20, 381LSB/XB-30, 381LSB/XB-50, 381LSC-65, 381LSC-99
381LSC-160, 381LSC-260
Valve Action: Direct Action, Reaction (Force)
Controlling Action: Proportional Linear Controlling or ON-OFF Controlling.
Input Signal: 4~20mA DC or 1~5V DC
Power: AC220V, 50HZ
Output Signal: 4~20mA DC
Power Consumption: A Type-50VA, B Type--150VA, C Type-220VA
Protection Level: IP55
Wire Connection: Normal S Type--G1/2", Explosion-Proof X Type---G3/4"
Ambient Temperature: Normal---10 Deg C~ 60 Deg C, With Space Heater---35 Deg C~ 60Deg C, Explosion-Proof X Type--- -10Deg C ~40 Deg C
Ambient Humidity: Normal S Type--Below 95%, Explosion-Proof X type--45%-85%
Explosion-Proof: ExdIIBT4
Performance
Raded KV Value: Refer to Table 1
Flowing Features: Linear, Equal Percentage
Adjusting Range: 50:1
Leakage Rate: Metal Sealing should be below 0.01% ANSI B16.104-1976 Class IV
Soft Sealing should be below 0.00001% ANSIB16.104-1976 Class VI
Allowable Deviation: 1%
Table 1: Kv Value & Action Time:
DN | Seat Dia | KV | Motor Model | Output Thrust | Rated Stroke | Action Time | |
mm | mm | Linear | Equal % | N | mm | s | |
20 | 20 | 6.9 | 6.3 | 381LSA-08/20 | 800/2000 | 16 | 3.8/7.6 |
25 | 25 | 11 | 10 | ||||
32 | 32 | 17 | 16 | 381LSB-30/50 | 3000/5000 | 25 | 7.2/14.7 |
40 | 40 | 27 | 25 | ||||
50 | 50 | 44 | 40 | ||||
65 | 65 | 69 | 63 | 381LSB-50/SC-65 | 5000/6500 | 40 | 2.5/14.3 |
80 | 80 | 110 | 100 | ||||
100 | 100 | 176 | 160 | ||||
125 | 125 | 275 | 250 | 381LSC-99/160 | 10000/16000 | 60 | 30/60 |
150 | 150 | 440 | 400 | ||||
200 | 200 | 690 | 630 |
Table 2: External Dimension & Weight:
DN | L | A | B | D | R | H1 | H6 | H2 | H3 | H4 | H5 | Weight (Kg) | |||||
mm | PN16/40 | PN63 | 460 | PN16/40 | PN63 | PN16/40 | PN63 | PN16/40 | PN63 | PN16/40 | PN63/100 | ||||||
20 | 95 | 115 | 460 | 230 | 225 | 177 | 107 | 119 | 123 | 135 | 490 | 373 | 459 | 10 | 13 | 10 | 13 |
25 | 100 | 115 | 460 | 230 | 225 | 177 | 107 | 119 | 123 | 135 | 490 | 373 | 459 | 12 | 16 | 12 | 16 |
32 | 105 | 130 | 460 | 230 | 225 | 177 | 114 | 122 | 134 | 142 | 490 | 495 | 459 | 15 | 19 | 15 | 19 |
40 | 115 | 130 | 460 | 230 | 225 | 177 | 132 | 140 | 152 | 160 | 490 | 495 | 459 | 17 | 26 | 17 | 26 |
50 | 125 | 150 | 460 | 230 | 225 | 177 | 137 | 157 | 157 | 177 | 490 | 495 | 429 | 18 | 27 | 18 | 27 |
65 | 145 | 170 | 530 | 230 | 225 | 177 | 164 | 169 | 191 | 196 | 540 | 700 | 520 | 34 | 43 | 34 | 43 |
80 | 155 | 190 | 530 | 230 | 255 | 177 | 174 | 179 | 201 | 206 | 540 | 700 | 520 | 46 | 69 | 46 | 69 |
100 | 175 | 215 | 530 | 230 | 255 | 177 | 189 | 200 | 216 | 227 | 540 | 700 | 520 | 54 | 85 | 54 | 85 |
125 | 200 | 250 | 630 | 260 | 310 | 226 | 213 | 230 | 240 | 257 | 625 | 725 | 570 | 76 | 120 | 76 | 120 |
150 | 225 | 275 | 630 | 260 | 310 | 226 | 243 | 250 | 270 | 277 | 625 | 725 | 570 | 79 | 125 | 79 | 125 |
200 | 275 | 325 | 630 | 260 | 310 | 226 | 298 | 304 | 325 | 331 | 625 | 725 | 570 | 100 | 150 | 100 | 150 |
Why Choose Us?
1. Manufacturer
We are manufacturer of control valve for 16 years, our factory is located in Shaoguan, which in the north of Guangdong Province. We offer OEM/ODM service, and also we have our own band "GOOLE". Our products has won the trust from the customer as our high qulity and good after-sales.
2. High quality
In early days, 15 years ago, we introduce a full set of control valve production technology from Germany. We've been the OEM suplier for German brand valve. It just cost you 50% price to buy the same type same technical standard products compared with German products. GOOLE stick to the concept of 'Quality First, Credit Uppermost, products has been certified by CE, CQC, TUV, ISO14001,etc.
3.Good After-sales
Our sales will reply you as soon as possible for any question about valves. We will track the customer product usage, if customer find any problem, our engineer will follow up at first time. For the accessories, we offer the best price.
