Electric Actuated Double Seat Control Valve (GZDLN)
- 10000 Piece / Pieces per Month
- Ningbo
- T/T L/C Other
- 45 days
Product Details
Brand Name: | GOOLE | Place of Origin: | China | Model Number: | GZDLN |
Material: | Stainless Steel | Application: | General | Structure: | Other, globe |
Standard or Nonstandard: | Standard | Pressure: | Medium Pressure | Power: | Pneumatic |
Media: | Gas | Temperature of Media: | Normal Temperature |
Product Description

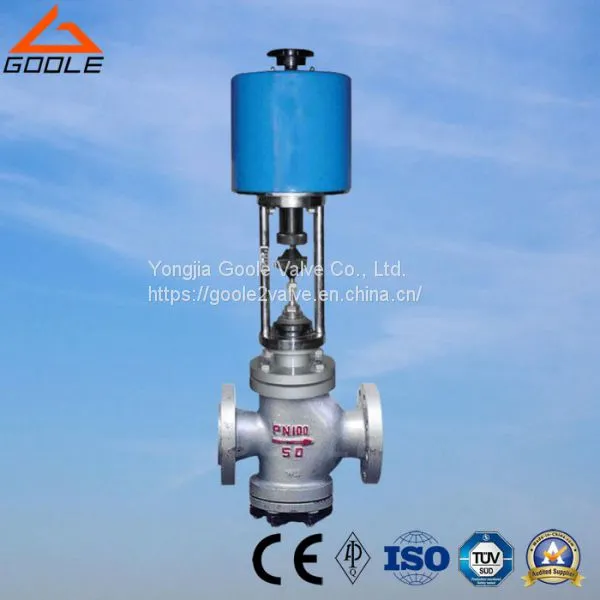

GZDLN Electric Actuated double-seated control valve.
The valve has double seats.The fluid outflow through the valve core of the upper and lower sealing surface.The unbalanced pressure is small.It is a balanced structure,which are widely used in petroleum,chemical,pharmaceutical,metallurgical,power plants,such as the industrial sector,to control of gas liquid medium such as steam.
Valve Body.
Structure:flowing through type globe valve with double-seated.
DN:25~300mm.
PN:1.6~10.0Mpa or class 150~class 600.
Connections:flanged type.
Material:WCB,HT200 ZG230-450 ZG1Cr18Ni9Ti.ZG0Cr18Ni12Mo2Ti.
Upper Cover.
Normal Temp:-20°C~+200°C.
Heat Radiation Type:-40°C~+450°C.
Gland Connection:bolted type.
Packing:V type PTFE.FLEXIBLE GRAPHITE.S.S BELLOWS.
Valve Assembly.
Valve Core:Double guiding&double-seated plug type.
Cv Features:Linear,Equal Percentage or Quick opening.
Material:1Cr18Ni9Ti0Cr18Ni12Mo2Ti.
Actuator.
Model: Electric actuator
Spring range:0.02~0.1/0.04~0.2Mpa.
Air Supply:0.14/0.16/0.28Mpa.
Air Supply Connector:M10*1.
Working Temp:-30~+70°C.
Valve Acting Type:air to close or air to open.
Accessories:positioner,,hand wheel.
Parameters:(with positioner.)
Leakage:<0.5%×Kv.
Intrinsic Erro:+/-1.5%.
Controlling Range:30:1.
Kv,Movement& Action Time
DN | Seat Dia | KV | Motor Model | Output Thrust | Rated Stroke | Action Time | |
mm | mm | Linear | Equal % | N | mm | s | |
20 | 20 | 6.9 | 6.3 | 381LSA-08/20 | 800/2000 | 16 | 3.8/7.6 |
25 | 25 | 11 | 10 | ||||
32 | 32 | 17 | 16 | 381LSB-30/50 | 3000/5000 | 25 | 7.2/14.7 |
40 | 40 | 27 | 25 | ||||
50 | 50 | 44 | 40 | ||||
65 | 65 | 69 | 63 | 381LSB-50/SC-65 | 5000/6500 | 40 | 2.5/14.3 |
80 | 80 | 110 | 100 | ||||
100 | 100 | 176 | 160 | ||||
125 | 125 | 275 | 250 | 381LSC-99/160 | 10000/16000 | 60 | 30/60 |
150 | 150 | 440 | 400 | ||||
200 | 200 | 690 | 630 |
Pneumatic Double Seated Control Valve Dimension.
DN | L | A | B | D | R | H1 | H6 | H2 | H3 | H4 | H5 | Weight (Kg) | |||||
mm | PN16/40 | PN63/100 | 460 | 230 | 225 | 177 | PN16/40 | PN63/100 | PN16/40 | PN63/100 | PN16/40 | PN63/100 | PN16/40 | PN63/100 | |||
20 | 150 | 230 | 460 | 230 | 225 | 177 | 126 | 138 | 142 | 154 | 490 | 373 | 459 | 43 | 49 | 10 | 13 |
25 | 160 | 230 | 460 | 230 | 225 | 177 | 126 | 138 | 142 | 154 | 490 | 373 | 459 | 48 | 54 | 12 | 16 |
32 | 180 | 260 | 460 | 230 | 225 | 177 | 134 | 142 | 154 | 162 | 490 | 495 | 459 | 57 | 61 | 15 | 19 |
40 | 200 | 260 | 460 | 230 | 225 | 177 | 157 | 165 | 177 | 185 | 490 | 495 | 459 | 66 | 70 | 17 | 26 |
50 | 230 | 300 | 460 | 230 | 225 | 177 | 167 | 187 | 187 | 207 | 490 | 495 | 429 | 80 | 84 | 18 | 27 |
65 | 290 | 340 | 530 | 230 | 225 | 177 | 199 | 204 | 226 | 231 | 540 | 700 | 520 | 92 | 97 | 34 | 43 |
80 | 310 | 380 | 530 | 230 | 255 | 177 | 214 | 219 | 241 | 246 | 540 | 700 | 520 | 100 | 105 | 46 | 69 |
100 | 350 | 430 | 530 | 230 | 255 | 177 | 229 | 240 | 256 | 267 | 540 | 700 | 520 | 120 | 125 | 54 | 85 |
125 | 400 | 500 | 630 | 260 | 310 | 226 | 263 | 280 | 290 | 307 | 625 | 725 | 570 | 134 | 138 | 76 | 120 |
150 | 480 | 550 | 630 | 260 | 310 | 226 | 293 | 300 | 320 | 327 | 625 | 725 | 570 | 156 | 163 | 79 | 125 |
200 | 600 | 650 | 630 | 260 | 310 | 226 | 358 | 364 | 385 | 391 | 625 | 725 | 570 | 199 | 206 | 100 | 150 |
Why Choose Us?
1. Manufacturer
We are manufacturer of control valve for 16 years, our factory is located in Shaoguan, which in the north of Guangdong Province. We offer OEM/ODM service, and also we have our own band "GOOLE". Our products has won the trust from the customer as our high qulity and good after-sales.
2. High quality
In early days, 15 years ago, we introduce a full set of control valve production technology from Germany. We've been the OEM suplier for German brand valve. It just cost you 50% price to buy the same type same technical standard products compared with German products. GOOLE stick to the concept of 'Quality First, Credit Uppermost, products has been certified by CE, CQC, TUV, ISO14001,etc.
3.Good After-sales
Our sales will reply you as soon as possible for any question about valves. We will track the customer product usage, if customer find any problem, our engineer will follow up at first time. For the accessories, we offer the best price.
FAQ
1. Q:Can we print our logo on your products?
A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc.
2.Q:What measures you can provide to ensure our our deal?
A: We are the trade assurance supplier on Made-in-china.com. If you place an trade assurance order, you will receive 100% refund of the trade assurance amount for order not meeting agreed
delivery or quality terms.
3.Q:How can I start a new trade assurance order?
A:You can make it as follow:
1) Find a Trade Assurance supplier and negotiation your order terms
2) Confirm your contract on Made-in-china.com
3) Submit your initial payment by T/T .
4) Enjoy Trade Assurance protection up to your covered amount .
4. Q:Does the trade assurance support any amont of order?
A: No, this service just support the order of more than $1000.
5.Q:What's your after-sale?
A: We offer 12 months warranty service, and we also sell the valve parts.
