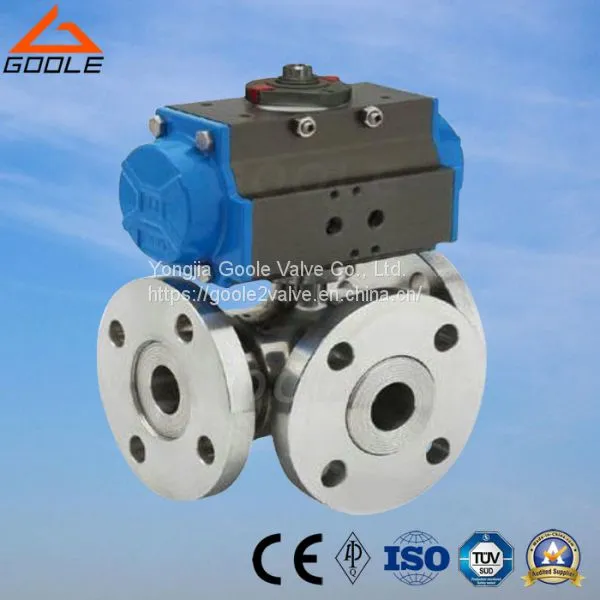

Piston Type Pneumatic L Port Three Way Ball Valve (GZSHL)

Name: Piston Type Pneumatic L Port Three Way Ball Valve (GZSHL)
Brand: GOOLE
SKU: 158984656

Piston Type Pneumatic L Port Three Way Ball Valve (GZSHL) thumbnail-1

Piston Type Pneumatic L Port Three Way Ball Valve (GZSHL) photo-1

US$ 2 - 50 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Brand Name:

GOOLE

Place of Origin:

China

Model Number:

GZSHL

Contact Supplier Request Quote Chat Now

Yongjia Goole Valve Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

45 days

Product Details
Company Profile
Contact Us

Brand Name GOOLE

Place of Origin China

Model Number GZSHL

Material Stainless Steel

Application General

Structure Other, globe

Standard or Nonstandard Standard

Pressure Medium Pressure

Power Pneumatic

Media Gas

Temperature of Media Normal Temperature

Piston Type Pneumatic L Port Three Way Ball Valve ( GZSHL)

Parameter Details.
Port Size : 2"--12"
Pressure : 150LB--1500LB
Temperature of Media : High Temperature
Media : gas oil and water ect.
Drive means : Manual , pneumatic , electric
Type of connection : Flange , thread , butt welded
Material : SS, CS
Packaging & Delivery : Plywood case or buyer request

Piston Type Pneumatic L Port Three Way Ball Valve ( GZSHL)
1.Three or two seat sealing ball valve enjoys compact structure,beautiful appearance, good sealing performance. It can realize the switch the flow in pipe, also can make the two channels are perpendicular to each other
connection or close.
2. Switch the four seat sealing three ball valve can not only realize the flow, also can make the Three channels are connected to each other, but also to turn off any channel, connected to the other two channels,flexibility control line in medium mixing or shunt.

Piston Type Pneumatic L Port Three Way Ball Valve ( GZSHL)

Form	Type T,L three way ball valve
Inside nominal diameter DN(mm)	DN15-DN300
Nominal pressure	1.6 2.5 4.0 6.4Mpa
Liquid range	Air ,water, gas ,oil and petrochemical products corrosive medium
Working temperature	Hard seal:-40 --300 Soft seal:-40 --180
Spillage	0 conform to ANSIB16.104standard
Main material	Valve body : WCB 304 316 316L Spool: 304 316 316L
Seat form	Stainless steel movable hard seal, PTFE soft seal
Surface preparation	Polishing

Technical parameters
Nominal pressure: PN1.6~6.4MPa
Nominal diameter: 15-300mm
The inherent flow characteristics: quick opening
Appliable Temperature : Hard Seal:-40~300ºC
Soft Seal: -40~180ºC
Applicable medium: Water,gas,oil quality and so on.
Driving Means: Manual ,Electric, Worm wheels, Pneumatic
Flange Type: ANSI, JIS, DIN, GB/T 9113, JB/T 79
Body materials : WCB, CF8, CF8M, CF3M
Stem: 2Cr13, 304, 316
Valve Seat : PTFE, 0Crl7Ni4Cu4Nb
Core Material : CF8, CF8M, CF3M.
Ball Type: Diverting Medium---- Three Way L Type
Mixing Medium---- Three Way T Type

Actuator:
Type: Piston Type Pneumatic Actuator ( GTX Series)
Action: Single Acting( Spring Return)----Air to Open
Double Acting ( Double Cylinder)---Air to Close
Air Supply: 0.4-0.6 MPa
Rotary angle : 90°
Signal Joint size: 1/8"G, NAMUR 1/4" G
Environment Temperature: -20 Deg C ~ 90 Deg C

Valve Action
Air to Close: When the Air Supply failed, the actuator spring will make the valve open.
Air to Open: When the Air Supply failed, the actuator spring will make the valve close.

Accessories ( As per purchaser's requirement)
Positioner, FRL, Handwheel Operator, Limit Switch, Solenoid Valve, Valve position feedback device, exhaust valve, etc.

Performance:
Rate Kv Value: See Table 1
Leakage Rate of the valve seat
Metal Seat: Below 0.01% ( ANSI B16.104-1976 Class IV)
Soft Seat: Below 0.00001% ( ANSI B16.104-1976 Class VI)

Nominal diameter DN, Rated Kv and Action Time

DN	KV	ACTUATOR MODEL	ACTION TIME
DN	KV	ACTUATOR MODEL	FULLY OPEN	FULLY CLOSED
15	20	GTX63	0.5	0.5
20	38	GTX63	0.5	0.5
25	72	GTX63	0.5	0.5
32	110	GTX75	0.5/0.6	0.6/0.8
40	170	GTX75	0.5/0.6	0.6/1.0
50	270	GTX83	0.5/0.6	0.8/1.2
65	380	GTX110	0.7/1.0	0.8/1.2

DN	KV	ACTUATOR MODEL	ACTION TIME
DN	KV	ACTUATOR MODEL	FULLY OPEN	FULLY CLOSED
80	510	GTX118	0.8/1.0	1.0/1.5
100	940	GTX160	1.0/1.2	1.0/2.0
125	1400	GTX210	1.1/1.6	1.3/2.3
150	2200	GTX210	1.2/2.0	1.5/2.5
200	3500	GTX254	3.5/4.5	4.5/6.0
250	5200	GTX254	4.0/5.0	5.0/6.0
300	8500	GTX255	5.0/6.0	5.5/7.0

External Dimension and Weight

DN	L0	L		H1	H2	H3	Weight(kg)
DN	L0	PN16/40	PN63	H1	H2	H3	PN16/40	PN63
15	133	130	165	54	177	47	6.5	7.5
20	133	130	190	54	177	47	7	8.5
25	133	140	216	60	177	52	9	11
32	182	165	229	67	198	59	13.5	16
40	182	165	241	78	198	66	18	21.5
50	182	203	292	88	223	78	26	32
65	222	222	330	98	275	91	33	41
80	294	241	356	121	275	106	48	58
100	380	305	406	144	353	130	88	106
125	450	356	455	148	420	150	115	138
150	450	394	495	176	420	172	200	240
200	603	457	597	226	504	215	245	294
250	603	533	673	281	504	270	340	408
300	603	610	762	320	515	330	456	548

Why Choose Us?
1. Manufacturer
We are manufacturer of control valve for 16 years, our factory is located in Shaoguan, which in the north of Guangdong Province. We offer OEM/ODM service, and also we have our own band "GOOLE". Our products has won the trust from the customer as our high qulity and good after-sales.

2. High quality
In early days, 15 years ago, we introduce a full set of control valve production technology from Germany. We've been the OEM suplier for German brand valve. It just cost you 50% price to buy the same type same technical standard products compared with German products. GOOLE stick to the concept of 'Quality First, Credit Uppermost, products has been certified by CE, CQC, TUV, ISO14001,etc.

3.Good After-sales
Our sales will reply you as soon as possible for any question about valves.  We will track the customer product usage, if customer find any problem, our engineer will follow up at first time. For the accessories, we offer the best price.

FAQ
1. Q:Can we print our logo on your products?
A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc.

2.Q:What measures you can provide to ensure our our deal?
A: We are the trade assurance supplier on . If you place an trade assurance order, you will receive 100% refund of the trade assurance amount for order not meeting agreed
delivery or quality terms.

3.Q:How can I start a new trade assurance order?
A:You can make it as follow:
    1) Find a Trade Assurance supplier and negotiation your order terms
2) Confirm your contract on
   3) Submit your initial payment by T/T .
   4) Enjoy Trade Assurance protection up to your covered amount .

4. Q:Does the trade assurance support any amont of order?
A: No, this service just support the order of more than $1000.

5.Q:What's your after-sale?
A: We offer 12 months warranty service, and we also sell the valve parts.
