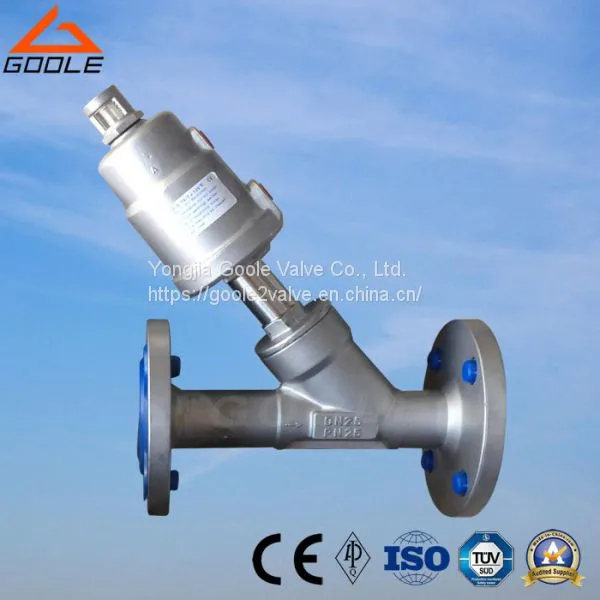

Stainless Steel Y Pattern Pneumatic Flanged Angle Seat Valve (GAYASV)
Features:
1.Visual position indicator: the limit switch or emergency manual device.
2.Easy to install: pneumatic head can rotate 360 'to 360' even limit switch can be
rotated. Easily to install one or two limit switches.
3.Advanced pneumatic controller: low abrasion of piston structure, large capacity
and low consumption volume. Internal components self lubricating maintenance free.
4.Has a variety of control mode: normally open, normally closed, double-action.
5.Requires a smaller pneumatic actuators: fluid flow from the stem above the head.
6.Easy connections: MAMUR standard connection embedded metal connectors.
Optional smaller control head.
7.Long life guide: stem wedge fluoro lung (PTEE) seal prevent dirt into. Self
lubricating maintenance free. Stem by special treatment to ensure that the best fixed
position and can automatic correction.
8. No water hammer effect, fluid flow from stem below the water hammer (water
impact) is absorbed.
9. Advanced body organization: flow Angle block 30% larger than normal smaller
fluid flow better.
Parameters:
Working pressure:0-25bar
Medium temperature range:-10ºC~180ºC
Medium viscosity:Max600cst(m/s)
Working temperature range:-10ºC~+60ºC
Material of body: stainless steel 304/316
Flanged End: RF
Applicable mediums:water,steam,gas,Acid solution
Control function:nominal closed,nominal open.
