Taiwan Manufacturer High Quality of 1207 SMD High Voltage Induction Coil

Taiwan Manufacturer High Quality of 1207 SMD High Voltage Induction Coil thumbnail-1
Taiwan Manufacturer High Quality of 1207 SMD High Voltage Induction Coil thumbnail-2
Taiwan Manufacturer High Quality of 1207 SMD High Voltage Induction Coil thumbnail-3
Taiwan Manufacturer High Quality of 1207 SMD High Voltage Induction Coil thumbnail-4
Taiwan Manufacturer High Quality of 1207 SMD High Voltage Induction Coil thumbnail-5
Taiwan Manufacturer High Quality of 1207 SMD High Voltage Induction Coil thumbnail-6
Taiwan Manufacturer High Quality of 1207 SMD High Voltage Induction Coil photo-1
Taiwan Manufacturer High Quality of 1207 SMD High Voltage Induction Coil photo-2

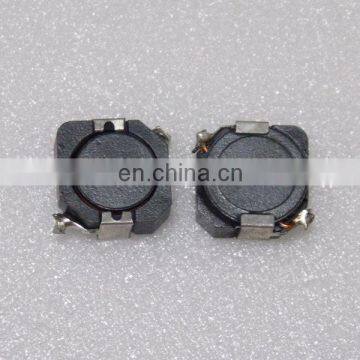

Taiwan Manufacturer High Quality of 1207 SMD High Voltage Induction Coil photo-3

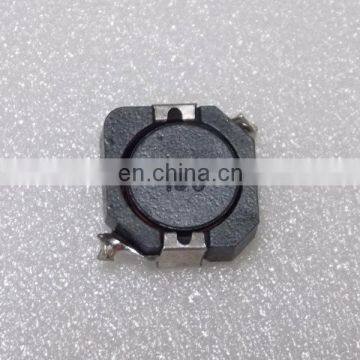

Taiwan Manufacturer High Quality of 1207 SMD High Voltage Induction Coil photo-4

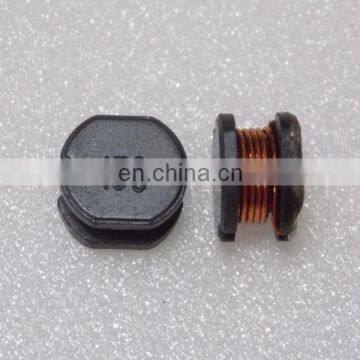

Taiwan Manufacturer High Quality of 1207 SMD High Voltage Induction Coil photo-5
Taiwan Manufacturer High Quality of 1207 SMD High Voltage Induction Coil photo-6
US$ 0.01 - 0.18 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
S'TECH
Model Number:
I02B-140829123
Contact Supplier Request Quote Chat Now
Supertech Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CKS AIRPORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name S'TECH
Model Number I02B-140829123

100% Taiwan Manufacturer high Quality of 1207 SMD High voltage induction coil

Product Description

FEATURE
1. To be high saturation for surface mounting type inductors.
2. Low cost feature.

APPLICATIONS
VTR, QA equipment , LCD television set , nootbook
PC , portable communication equipments , DC to DC
converters , etc.



ORDERING CODE.

(1) PRODUCT TYPE CODE AND SIZE CODE
(2) INDUCTANCE
(3) INDUCTANCE TOLERANCE(K:±10%;M:±20%)
(4) REEL TAPING



Appearance and Dimensions (mm)



UNIT : mm
SIZE CODE A B C D E F G
BS0301CDSU 3.0±0.3 1.3(max) 3.5±0.3 1.2Typ 3.5 1.6 0.8
BS0302CDSU 3.0±0.3 2.3(max) 3.5±0.3 1.2Typ 3.5 1.6 0.8
BS0403CDSU 4.0±0.3 3.2±0.3 4.5±0.3 1.5Typ 4.5 2.1 0.8
BS0502CDSU 5.2±0.3 2.5±0.3 5.8±0.3 2.0Typ 5.5 2.25 1.5
BS0503CDSU 5.2±0.3 3.0±0.3 5.8±0.3 2.0Typ 5.5 2.25 1.5
BS0504CDSU 5.2±0.3 4.5±0.3 5.8±0.3 2.0Typ 5.5 2.25 1.5
BS0703CDSU 7.0±0.3 3.5±0.3 7.8±0.3 2.5Typ 7.5 3.05 1.9
BS0705CDSU 7.0±0.3 5.0±0.3 7.8±0.3 2.5Typ 7.5 3.05 1.9
BS1004CDSU 9.0±0.3 4.0±0.3 10.0±0.3 2.9Typ 9.5 3.65 2.5
BS1005CDSU 9.0±0.3 5.4±0.3 10.0±0.3 2.9Typ 9.5 3.65 2.5





Other sizes are available upon request.

All the data listed in this catalogue are for reference only;



Supertech reservesthe right to alter or revise the specifications without prior notification.



Test Freq. :

BS0301CDSU 1.0 ~ 470μH (100KHz / 0.1V)

BS0302CDSU 1.0 ~ 330μH (100KHz / 0.1V)

BS0403CDSU 1.0 ~ 8.2μH (7.96MHz) , 10 ~ 68μH (2.52MHz) , 82 ~ 1000μH (1KHz / 0.25V)

BS0502CDSU 1.2 ~ 470μH (100KHz / 0.1V)

BS0503CDSU 1.0 ~ 8.2μH (7.96MHz) , 10 ~ 82μH (2.52MHz) , 100 ~ 1000μH (1KHz / 0.25V)

BS0504CDSU 1.0 ~ 8.2μH (7.96MHz) , 10 ~ 82μH (2.52MHz) , 100 ~ 1000μH (1KHz / 0.25V)

BS0703CDSU 10 ~ 82μH (2.52MHz) , 100 ~ 1000μH (1KHz / 0.25V)

BS0705CDSU 10 ~ 82μH (2.52MHz) , 100 ~ 1000μH (1KHz / 0.25V)

BS1004CDSU 10 ~ 82μH (2.52MHz) , 100 ~ 1000μH (1KHz / 0.25V)

BS1005CDSU 10 ~ 82μH (2.52MHz) , 100 ~ 1000μH (1KHz / 0.25V)

Tolerance :

1.0 ~ 8.2μH ± 20%(M)

10 ~ 1000μH ± 10%(K)





Packaging & Shipping

1.TAPED REEL

2 10 REEL per CARTON
3.SHIPMENT BY AIR, SEA , DHL, FEDEX, TNT, EMS IS AVAILABLE



Company Information



Our factory is the professional inductor manufacturer, specialized in
manufacturing inductive components.

Our factory was founded in 1988, and due to its gradual development,
we obtained the quality certification ISO 9001:2000 and ISO14001
which certified by TÜV. Via our highly-trained personnel, engineers,
and agents worldwide, Supertech offer Excellent Quality, Quick Delivery
Service, and Competitive Price to our customers.
