In the era of analog mixer with marshalling and DCA mixer are very expensive, large mixer, the advent of digital tuning, a chance for all of our SoundMan in affordable tuning stage with this feature, we as developers heartfelt thanks to this era, many of the basic technology accumulation and precipitation, to develop a high performance, integrated speakers manager of multifunction digital mixer.
High performance front microphone amplifier
Microphone preamplifier is one of the concerns of professional users, choose TI OPA1632 fully differential amplifier design, can remain under big gain low background noise performance, low distortion, can very good filter at the input common-mode noise and common mode noise and power.
OPA1632 differential op-amp IC integrated precision matching resistance, gain control circuit is simple, therefore when the multichannel circuit very good consistency, 1 is a analog gain step by step, meet the demand of all kinds of high demand microphone, instrument amplifier.
-114db SNR helps to achieve pure sound
Signal-to-noise ratio parameters have direct and obvious effects on sound quality.
When there are too many noise components in the sound signal, the original clean sound is polluted, and the resulting sound degradation is difficult to eliminate, so the performance of the device itself is very critical.
Full mixer -90.5dBu has no power to count ultra-low noise
In all 16 analog channel 0 is a mixing situation, still can achieve - 90 is a bottom, meeting room, private audio room this need to be very quiet, the bottom of our equipment can provide excellent noise performance.
Product features
Chinese and English interface, all functions can be demonstrated offline

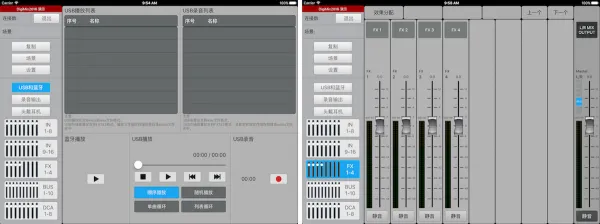

Built-in USB audio recording and playback function
Audio USB player can recognize Chinese song names
The mobile phone computer music has wireless access to the tuning platform through bluetooth
The 16-channel independent feedback suppressor is built in
The integrated audio box manager
With 8 DCA Groups
Your laptop/computer/mobile phone can be controlled
Support iOS and Windows systems
85f integrates wi-fi hotspots and can also connect to external wi-fi via Ethernet ports
8 terminals are supported for simultaneous control

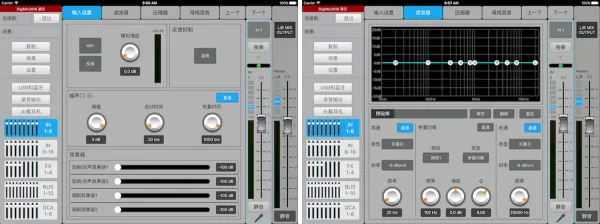

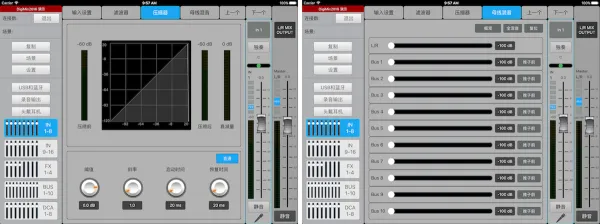

Each input channel has 8 segments of parameter equalization, high and low pass, compression, noise gate and reverse phase
Each output channel has 16 segments of parameter equalization, high and low pass, compression, inverting, and 1-second delay
Four /10 buses, can choose putter front/back
Four built-in effect module
Armfirmware and DSP firmware can be upgraded through the network, which is convenient for later functional upgrade
One hundred sets of scenario preset functions are supported, which can be exported and imported into USB memory for data backup
32 PEQ mode storage
Built-in signal generator: sine wave, pink noise and white noise
The same channel can copy data quickly
C connection mode: balanced input and output cannon
Eight push subsets and eight mute subsets
The name of the student channel can be customized
Front panel LCD screen, used to display current scene name, WIFI SSID name and other key information
The front panel has an input and output signal indicator light
The third party control protocol TCP/IP, rs-232 control instructions
Apple control software
