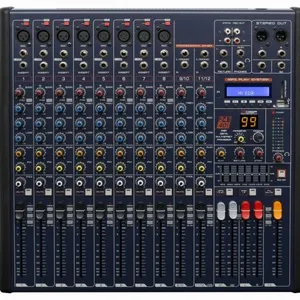

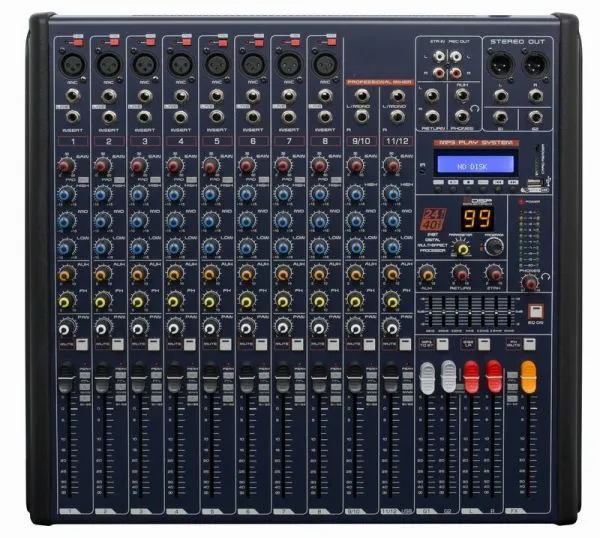

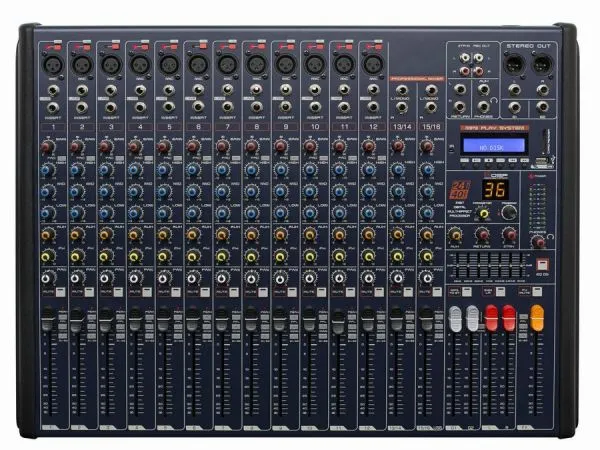

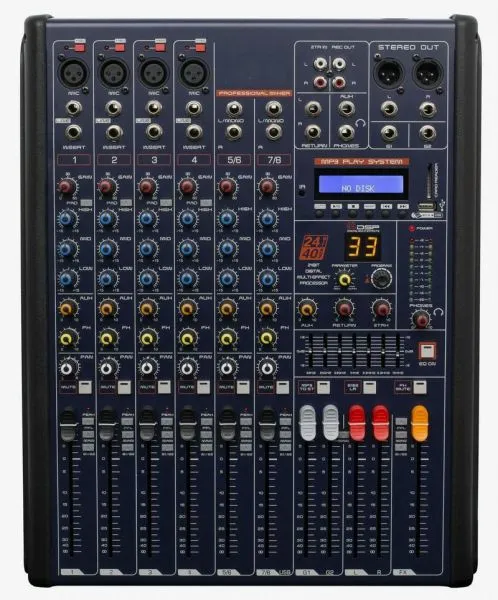

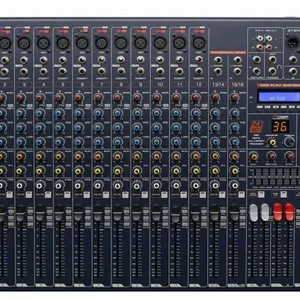

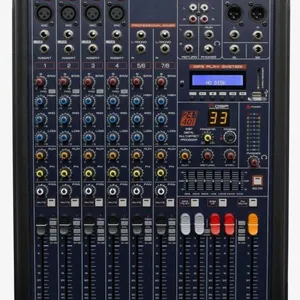

Bluetooth/USB Mixer with 8/12/16 channels

Technical Parameters:

8 channel design

2 marshalling is provided with a separate output end to make the connection more flexible.

7 segment balancing, with 99 DSP effects built in

Separate +48v fantasy power switch

MP3 large-screen player (support SD card)

High quality USB music player. Play with audio and bluetooth

Set 2 secondary send for easy extension devices.1 effect send and 1 return.

100mm long - life high analysis pusher.

Input sensitivity: microphone: -60db

Stereo channel input: -40db

Effect sent Echo send: -20db

Effect returns Echo back: -20db

Output: maximum 4V

SNR S/N: -80db

Equalization:

High frequency high: 15dB/10KHZ

Intermediate frequency Mid: + / 15dB/250KHZ~6KHZ

Low frequency: + / - 15dB/60HZ

Maximum output level Max output level: 20dBm

Harmonic distortion T.H.D: 3d0.1

SNR S/N:80Db

Phantom voltage MIC:48V
