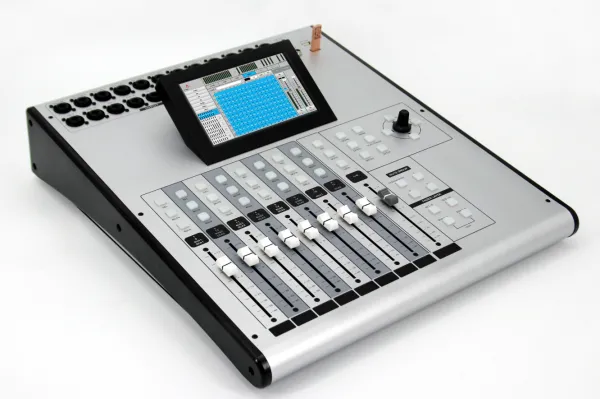

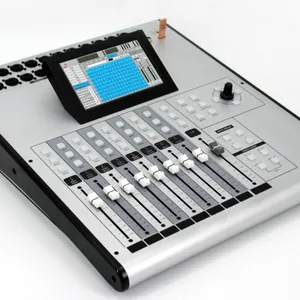

Help CenterDigital Mixer With 7”Touch Control Panel
Related Products
-
Frame Type Wi-fi Controls Multiscreen Synchronous Digital MixerNegotiableMOQ: 1 Piece -
Mini Mixer With 4/7 ChannelsNegotiableMOQ: 1 Piece
-
8 Channels Mixer With Amplifier 500W*2NegotiableMOQ: 1 Piece
-
8 Channels Mixer With Amplifier 700W*2NegotiableMOQ: 1 Piece
-
8 Channels Mixer With Amplifier 1200W*2NegotiableMOQ: 1 Piece
Professional interface
With innovative design and powerful DSP function, the digital tuning platform integrates the digital tuning system effectively, bringing professional functional experience to users.
Everything you'd expect from a top-of-the-line digital tuner, combined with our powerful DSP technology, its powerful capabilities, and far superior audio performance among its peers.
Upgrading or replacing from analog to digital is one of your best choices.
preamplifier
16 analog input, there are eight with digital channel gain words, smooth 1 db step gain control, signal by the high performance low latency 24 analog to digital converter, tiny distortion and low background noise, more adjustable parameters, a simulated mixer cannot ratio, such as digital gain good consistency, and effectively prevent wrong operation.
Mixing speed
With great processing power and advanced features, you still need to quickly tune out the mixer interface and adjust it in time.
Once you start using our digital tuner, you can feel the convenience and convenience of our software operation process.
Convenient and fast operation experience, so that all people can enjoy the convenience and powerful function of digital tuning table.
Touch control
The 1024x600 true-color resistance touch screen and its special key, digital encoder operation panel, able to quickly and conveniently set all Settings.
The friendly software interface and clear navigation design can understand the operation without consulting the manual. The special buttons and screen navigation buttons will guide you to various functional modules quickly.
Such as level meter, PEQ, Limiter, USB audio playback, scene storage, system Settings, etc.
Chinese and English operation interface - to simplify
Era of information explosion, the description has become the past type, the emergence of Chinese and English interface, can be completely ignored the instructions, quick learning operation directly, greatly reduce to the user's language requirement, reduce the application of the threshold of the employment unit personnel.
9 100mm electric thrusters
As standard configuration of digital mixer, electric pusher in a compact space can real-time control all of the channel and the main output, a LR main channel pusher, eight channel pusher, there are four pusher layer, convenient and fast switching, quick look at the volume status.
4 built-in effects
In the field of singing and performing, the built-in effectors can simplify the system wiring and have two classical reverberation and two modulator effect modules.
FX sound effects can be returned to the mix using a dedicated return channel, without using mono and stereo input channels.
100 scenarios are stored
Scenario storage is one of the most useful and significant features that differentiates it from an analog tuner, storing 100 complete scenarios that can be invoked when needed.
All scenarios can be exported to an external USB backup.
PEQ scenario
PEQ scene storage model for a single input channel, your best in training before the show, can be stored in the system, can call on any of the input channels, such as singer, Musical Instruments in debugging before the performance.
USB playback and recording
Able to play the Chinese and English songs in the USB electronic disk, fast forward, next song, fast pause and other functions, very convenient for on-site operation.
ARM processor +Linux system
Samsung 4418 quad-core 1.4G high-performance ARM processor, easy to drive touch screen display and interface, USB playback recording, 22 seconds fast start.
Linux is stable, efficient, and virus-free, with better security.
Function is introduced
C 7 inch resistance touch screen 1024x600 resolution
Eight hundred mm electric push
Switch at any time without restart
Built-in USB audio recording and playback function
Audio USB player can recognize Chinese song names
The 16-channel independent feedback suppressor is built in
The integrated audio box manager
The third party control protocol TCP/IP, rs-232 control instructions
Input channel functions: 8 DCA Groups
LCD touch screen full function control, real-time data synchronization
Optional WIFI hotspots
8 terminals are supported for simultaneous control
Four built-in effect module
The ARM and DSP firmware can be upgraded through the network or USB electronic disk
Each input channel has 8 segments of parameter equalization, noise gate, feedback suppressor, high and low pass, compression and inverting
Each output channel has 16 segments of parameter equalization, high and low pass, compression, inverting, and 1-second delay
C /R, 6BUS, REC(L/R), HeadPhone(L/R)
Six BUS hybrid buses can select putter front and back (PRE/POST)
One hundred sets of scenario preset functions are supported, which can be exported and imported into USB memory for data backup
C / 100 PEQ mode storage
Built-in signal generator: sine wave, pink noise and white noise
The same channel can copy data quickly
C connection mode: balanced input and output cannon
Eight push subsets and eight mute subsets
The name of the channel can be customized
