Product introduction

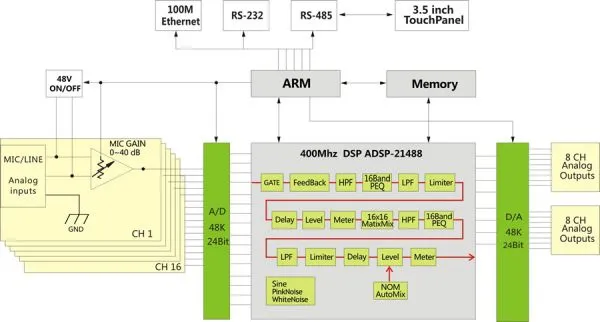

1616, 1608, 0808, professional digital audio processor series, based on the ADI - 21488, 400 MHZ high-performance floating-point DSP processing chip, ultra low noise microphone preamplifier, applicable to professional meetings amplification pickup, as well as a variety of multi-functional professional audio processing applications.
The software supports multiple platforms, humanized operation interface and communication protocol customized by third-party apps.
Support to extend the touch screen control panel installed on multiple walls, the volume can be set through the wall control panel, call mode default.
The channel level of the whole series of products: 16x16, 16x8, 8x8, can meet all kinds of large, medium and small professional audio projects use, used for meeting room, multi-function hall, live performance.
Product features
The fourth generation of ADI high performance DSP processor is adopted.
Specialized microphone preamplifier circuit for low noise level;
Specialized analog circuit design to provide high quality sound effects;
16 independent feedback elimination modules are built in to solve the problem of noise easily.
8524 bit/48kHz high performance A/D, D/A chip;
Multi - wall touch screen for quick control of multichannel volume and call preset;
The touch screen on the lv wall can be customized in both Chinese and English panels, which is suitable for the field language environment.
Customizable wall touch screen volume control channel label;
Front panel LCD display IP address, gateway, firmware information, error alarm prompt;
Simple ASCII communication protocol with open rs-232 interface;
C/IP port open, easy-to-understand ASCII communication protocol;
Multi wall touch screen with rs-485 port;
The front panel has a fault alarm indicator light, and when a serious fault occurs, the red LED flashes
The built-in voltage monitoring function can assist field engineers in finding problems when the circuit is abnormal.
Built-in temperature alarm function, automatically alarm when the internal temperature of the machine box is high;
Armfirmware and DSP firmware can be upgraded through the network, which is convenient for later functional upgrade.
The default function of 32 sets of scenarios is supported, which can be exported to the computer for preservation, or imported from the computer for data backup and recovery.
The software interface can run Windows 2000 /XP/Windows 7 32bit/64bit, which is simple, intuitive and easy to use.
Software to automatically find all processors on the local area network, without user input IP address;
S input per channel: 48 v power supply, choice of MIC/Line, 0 ~ 40 db analog gain, 12 db digital gain, noise gate, feedback suppressor, high-pass, low-pass, 16 segment PEQ, pressure limit, delay (1 second), mixing volume control, reverse phase, mixing before the volume level meter;
Output per channel: 16 PEQ, high pass, low pass, delay (2 seconds), output volume control, pressure limiter, output volume level meter;
Other processing modules: matrix mixer, automatic mixer, signal generator (pink noise, white noise, sine wave);
Important functions, such as parameter reset, scene storage and system reset, need to be confirmed manually. In terms of software functions, user error operation should be avoided as much as possible.
The function of data duplication in the same channel is conducive to the rapid replication of data in the same channel.

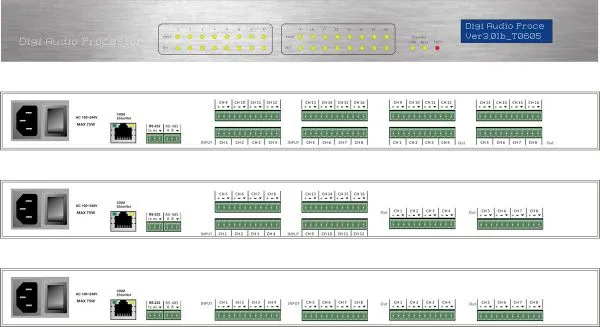

Lv connection mode: balanced input and output, using bare wire interface end;
PC control software
We visited experienced senior sound engineers and professional tuners, communicated deeply about the operation habits of debugging and application personnel, and developed software interfaces that are suitable for industrial applications.
The control software is easy to understand and can be operated quickly without instructions.
Each input value can be entered directly by the keyboard to get the exact value you want, such as -12.2db.
Shift+ select the channel and press the up and down arrow keys to realize 1dB step and step reduction.
For complex parameter adjustments such as PEQ and Limiter, the parameters can be copied and pasted quickly. You can easily realize multi-channel data replication with convenient operation.
Third party communication protocol
Communication protocol type: TCP sever port number: 1698
Stop sending data for 10 seconds, and must reestablish TCP connection to prevent abnormal network exit and port being occupied
Rs-232 default baud rate: 115200
Rs-485 default baud rate: 19200
