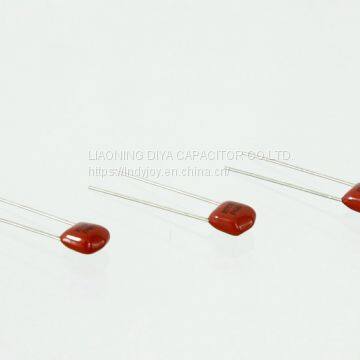

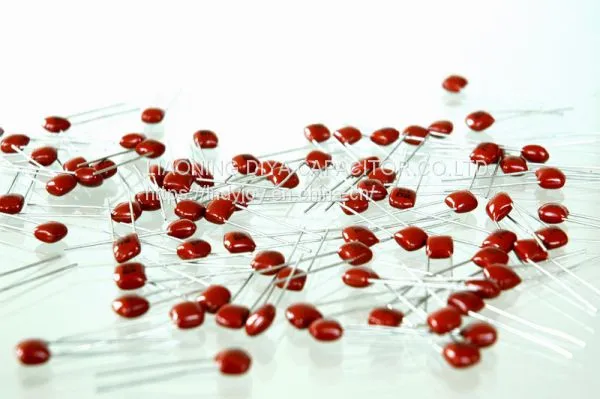

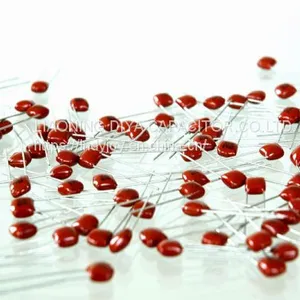

CL21X MINI-SIZE Metallized Polyester Film Capacitor
CNY 0.1 - 1.0
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Brand Name:
DC
Place of Origin:
China
Model Number:
CL21X
Payment & Shipping
Payment Methods:
Port of Shipment:
dalian sea port
Delivery Detail:
7 days
Related Products
-
CL21 (MEF) Metallized Polyester Film CapacitorCNY 0.10 - 5.0MOQ: 10000 Pieces -
CL21B (MEB) Metallized Polyester Film Capacitor-boxCNY 0.15 - 3.5MOQ: 10000 Pieces
-
CL20(MET/MEA) Metallized Polyester Film Capacitor -axialCNY 0.2 - 10MOQ: 10000 Pieces
-
CL21B (MEF) Metallized Polyester Film CapacitorCNY 0.15 - 5MOQ: 10000 Pieces
-
CL71(MEMB)box Type Metallized Film Capcitor (stacked Version)US$ 0.020 - 0.075MOQ: 25000 Pieces
Brand Name
DC
Place of Origin
China
Model Number
CL21X
Type
Polyester Film Capacitor
Application
General Purpose
Rated Voltage
50/63V
Operating Temperature
55/085/21
Package Type
Surface Mount
Capacitance
0.01uF--1.0uF
The small size can be compared favourably with the stacked film capacitor self-healing effect, high stability and reliability, low dissipation factor, available for automatic radial insertion, the application is the same as type CL21
SPECIFICATIONS:
| Reference standard | GB7332(IEC60384-2) |

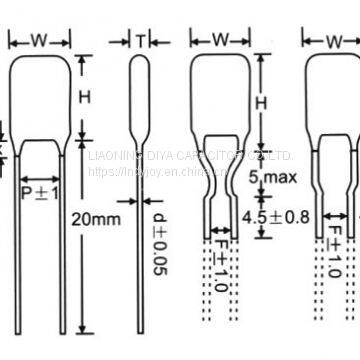

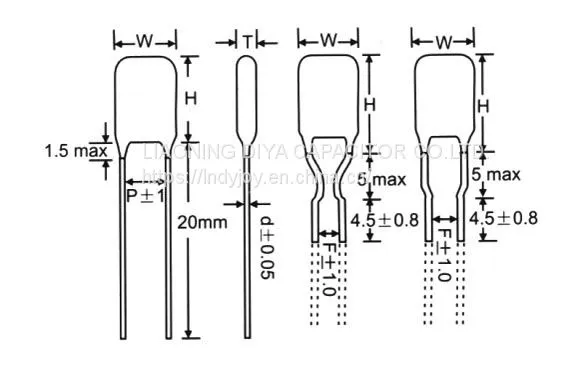

OUTLINE DRAWING |
| Climatic category | 55/085/21 | |
| Voltage proof | 1.5UR(5S) |
|
| Capacitance tolerance | J:±5% K:±10% M:±20% | |
| Dissipation factor | ≤0.008(1KHZ,20℃) | |
| Insulation resistance | CR≤0.33µF ≥15000MΩ | |
| CR>0.33µF ≥5000S(20℃,1min) | ||
DIMENSIONS: Unit:mm
| Capacitance(µF) | 50/63V | ||||
| W Max |
H Max |
T Max |
P(0.5) | d±0.05 | |
| 0.01 | 7.3 | 7.0 | 4.0 | 5.0 | 0.6 |
| 0.012 | 7.3 | 7.0 | 4.0 | 5.0 | 0.6 |
| 0.015 | 7.3 | 7.5 | 4.0 | 5.0 | 0.6 |
| 0.018 | 7.3 | 7.5 | 4.0 | 5.0 | 0.6 |
| 0.022 | 7.3 | 7.0 | 4.5 | 5.0 | 0.6 |
| 0.027 | 7.3 | 7.0 | 4.5 | 5.0 | 0.6 |
| 0.033 | 7.3 | 7.5 | 4.5 | 5.0 | 0.6 |
| 0.039 | 7.3 | 7.5 | 4.5 | 5.0 | 0.6 |
| 0.047 | 7.3 | 7.5 | 4.5 | 5.0 | 0.6 |
| 0.056 | 7.3 | 8.0 | 4.5 | 5.0 | 0.6 |
| 0.068 | 7.3 | 8.0 | 4.5 | 5.0 | 0.6 |
| 0.082 | 7.3 | 8.0 | 4.5 | 5.0 | 0.6 |
| 0.1 | 7.3 | 9.5 | 4.5 | 5.0 | 0.6 |
| 0.12 | 10.2 | 8.0 | 4.5 | 7.5 | 0.6 |
| 0.15 | 10.2 | 9.0 | 4.5 | 7.5 | 0.6 |
| 0.18 | 10.2 | 9.0 | 4.5 | 7.5 | 0.6 |
| 0.22 | 10.2 | 9.5 | 5.0 | 7.5 | 0.6 |
| 0.27 | 10.2 | 10.0 | 5.5 | 7.5 | 0.6 |
| 0.33 | 10.2 | 8.5 | 5.0 | 7.5 | 0.6 |
| 0.39 | 10.2 | 8.5 | 5.0 | 7.5 | 0.6 |
| 0.47 | 10.2 | 9.0 | 5.5 | 7.5 | 0.6 |
| 0.56 | 10.2 | 9.0 | 6.0 | 7.5 | 0.6 |
| 0.68 | 10.2 | 9.5 | 6.5 | 7.5 | 0.6 |
| 0.82 | 10.2 | 10.0 | 7.0 | 7.5 | 0.6 |
| 1.0 | 10.2 | 11.0 | 7.5 | 7.5 | 0.6 |
