CL71(MEMB)box Type Metallized Film Capcitor (stacked Version)

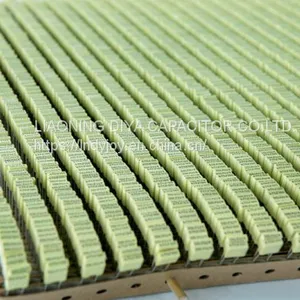

CL71(MEMB)box Type Metallized Film Capcitor (stacked Version) thumbnail-1
CL71(MEMB)box Type Metallized Film Capcitor (stacked Version) thumbnail-2

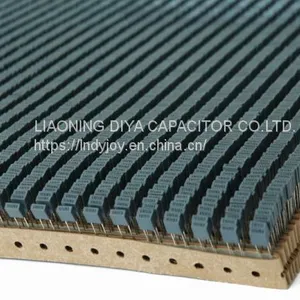

CL71(MEMB)box Type Metallized Film Capcitor (stacked Version) thumbnail-3
CL71(MEMB)box Type Metallized Film Capcitor (stacked Version) thumbnail-4
CL71(MEMB)box Type Metallized Film Capcitor (stacked Version) photo-1

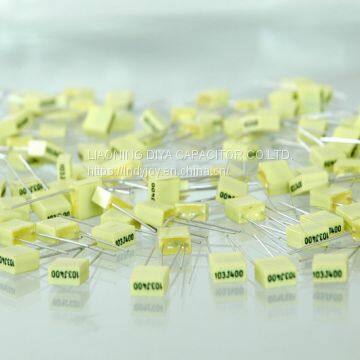

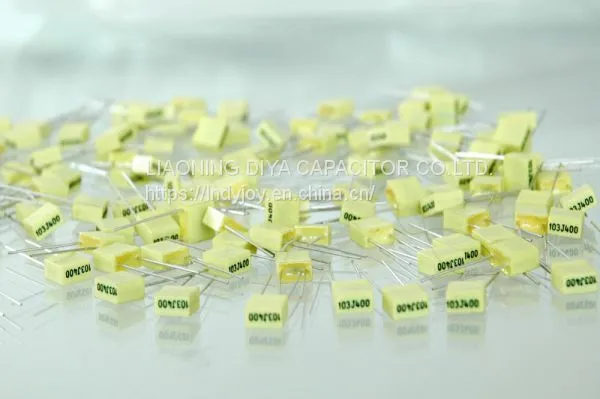

CL71(MEMB)box Type Metallized Film Capcitor (stacked Version) photo-2

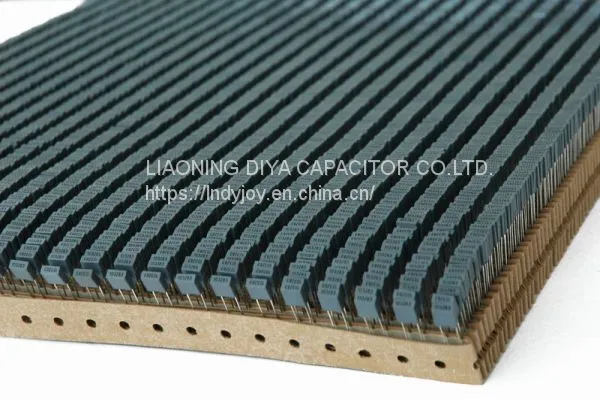

CL71(MEMB)box Type Metallized Film Capcitor (stacked Version) photo-3

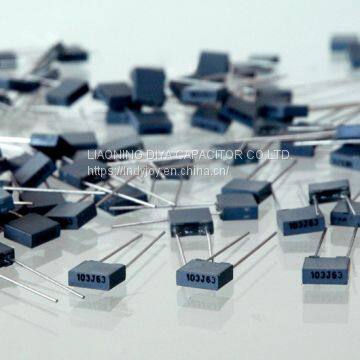

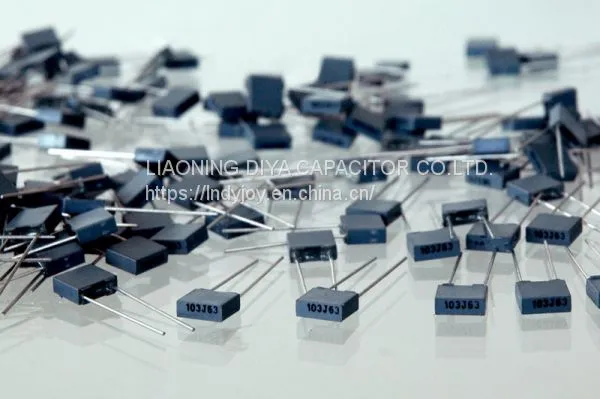

CL71(MEMB)box Type Metallized Film Capcitor (stacked Version) photo-4
US$ 0.020 - 0.075 MOQ: 25000 Pieces
Key Specifications
Get Latest Price
Brand Name:
DX
Place of Origin:
China
Model Number:
CL71
Contact Supplier Request Quote Chat Now
Liaoning Diya Capacitor Co.ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
dalian sea port
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DX
Place of Origin China
Model Number CL71
Type Polyester Film Capacitor
Application General Purpose
Rated Voltage 63V,100V
Operating Temperature 55/100/56
Package Type Through Hole
Capacitance 0.001-1.0uF

    This kind of capacitor applies stacked construction. it is sealed by the flame-retardant epoxy resin. it has good reliable, low loss , good electrical features, uniform dimension and self-healing effect. it is suitable for all kinds of radial taping and can be automatic assemble, it can be widely appplied in all kinds of circuit of DC and pulse.

Reference standardGB/T15448-95(IEC384-19)

OUTLINE DRAWING
Climatic category55/100/56
Voltage proof1.6 UR
Capacitance toleranceJ:±5%K:±10%M:±20%
Dissipation factor≤0.01(1KHZ,20℃)
Insulation resistanceCR≤0.33µF　≥15000MΩ
CR≤0.33 µF　≥5000S(20℃,10v,1min)


DIMENSIONS : 　　　　　　　　　　　　　　　　　　　　　　 　　　　Unit:mm

µF
63V
100V

W
Max(mm)
H
Max(mm)
T
Max(mm)
P
D±0.05
W
Max(mm)
H
Max(mm)
T
Max(mm)
P
D±0.05
0.001
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.0015
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.0022
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.0033
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.0047
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.0056
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.0068
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.0082
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.01
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.012
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.015
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.018
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.022
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.027
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.033
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.039
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.047
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.056
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.068
7.2
6.5
2.5
5.0
0.5
7.2
6.5
2.5
5.0
0.5
0.082
7.2
6.5
2.5
5.0
0.5
7.2
7.5
3.5
5.0
0.5
0.1
7.2
6.5
2.5
5.0
0.5
7.2
7.5
3.5
5.0
0.5
0.12
7.2
6.5
2.5
5.0
0.5
7.2
9.5
4.5
5.0
0.6
0.15
7.2
7.5
3.5
5.0
0.5
7.2
9.5
4.5
5.0
0.6
0.18
7.2
7.5
3.5
5.0
0.5
7.2
9.5
4.5
5.0
0.6
0.22
7.2
7.5
3.5
5.0
0.5
7.2
10
5
5.0
0.6
0.27
7.2
9.5
4.5
5.0
0.6
7.2
11.0
6
5.0
0.6
0.33
7.2
9.5
4.5
5.0
0.6
7.2
11.0
6
5.0
0.6
0.39
7.2
9.5
4.5
5.0
0.6





0.47
7.2
9.5
4.5
5.0
0.6





0.56
7.2
10
5.0
5.0
0.6





0.68
7.2
11
6.0
5.0
0.6





0.82
7.2
11
6.0
5.0
0.6





1.0
7.2
11
6.0
5.0
0.6






Note:We   can offer your specific demand by technology   treaty.
