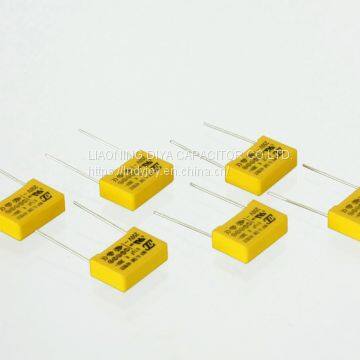

X2 capacitor
- 5000000 Piece / Pieces per Month
- dalian sea port
- T/T
- 7 days
Product Details
Brand Name: | DC | Place of Origin: | China | Model Number: | X2 |
Type: | Polypropylene Film Capacitor | Application: | Other, suitable for cross-line noise reduction circuit and other ac applications | Rated Voltage: | 275/280/305VAC |
Operating Temperature: | 40/105/21 | Package Type: | Through Hole | Capacitance: | 0.01-4.7uF |
Product Description
X2 capacitor are non-inductively wound with metallized polypropylene film as the dielectric/electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epocy resin, the indentical outer appearance, very low loss at high frequency, suitable or high current, High insulation resistance, long life due to self-healing effect, withstanding 2.5KV impulse voltage. as an across-the-line type noise suppression capacitor and suitable for AC prupose.
SPECIFICATIONS:
Reference Standard | G/T14472(IEC 60384-14) | OUTLINE DRAWING |
Climatic category | 40/100/21 | |
Rated voltage | 280VBC | |
Capacitance range | 0.001~4.7µF | |
Capacitance tolerance | J:±5% K:±10% M:±20% | |
Voltage proof | 4.3UR(5S) | |
Dissipation factor | ≤0.3%(20℃,10KHz) | |
Insulation resistance | ≥15000MΩ CR≤0.33µF ≥5000S CR>0.33µF(20℃,1min) |
DIMENSIONS:
capacity(µF) | P=7.5 | P=10 | P=15 | P=22.5 | P=27.5 | ||||||||||
W Max | H Max | T Max | W Max | H Max | T Max | W Max | H Max | T Max | W Max | H Max | T Max | W Max | H Max | T Max | |
±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | |
0.001 | 10.5 | 9 | 4 | ||||||||||||
0.0012 | 10.5 | 9 | 4 | ||||||||||||
0.0015 | 10.5 | 9 | 4 | ||||||||||||
0.0018 | 10.5 | 9 | 4 | ||||||||||||
0.0022 | 10.5 | 9 | 4 | ||||||||||||
0.0027 | 10.5 | 9 | 4 | ||||||||||||
0.0033 | 10.5 | 9 | 4 | ||||||||||||
0.0039 | 10.5 | 9 | 4 | ||||||||||||
0.0047 | 10.5 | 9 | 4 | ||||||||||||
0.0056 | 10.5 | 9 | 4 | ||||||||||||
0.0068 | 10.5 | 9 | 4 | ||||||||||||
0.0082 | 10.5 | 9 | 4 | ||||||||||||
0.01 | 10.5 | 9 | 4 | ||||||||||||
0.012 | 10.5 | 9 | 4 | ||||||||||||
0.015 | 10.5 | 9 | 4 | ||||||||||||
0.018 | 10.5 | 9 | 4 | 13 | 9 | 4 | |||||||||
0.022 | 10.5 | 9 | 4 | 13 | 9 | 4 | |||||||||
0.027 | 10.5 | 11 | 5 | 13 | 9 | 4 | |||||||||
0.033 | 10.5 | 11 | 5 | 13 | 11 | 5 | |||||||||
0.039 | 10.5 | 12 | 6 | 13 | 11 | 5 | |||||||||
0.047 | 10.5 | 12 | 6 | 13 | 11 | 5 | |||||||||
0.056 | 13 | 11 | 5 | 18 | 11 | 5 | |||||||||
0.068 | 13 | 12 | 6 | 18 | 11 | 5 | |||||||||
0.082 | 13 | 12 | 6 | 18 | 11 | 5 | |||||||||
0.1 | 13 | 12 | 6 | 18 | 11 | 5 | |||||||||
0.12 | 18 | 12 | 6 | ||||||||||||
0.15 | 18 | 12 | 6 | 26.5 | 15 | 6 | |||||||||
0.18 | 18 | 13.5 | 7.5 | 26.5 | 15 | 6 | |||||||||
0.22 | 18 | 13.5 | 7.5 | 26.5 | 15 | 6 | |||||||||
0.27 | 18 | 14.5 | 8.5 | 26.5 | 16.0 | 7 | |||||||||
0.33 | 18 | 16 | 10 | 26.5 | 16.0 | 7 | |||||||||
0.39 | 18 | 19 | 11 | 26.5 | 17.0 | 8.5 | |||||||||
0.47 | 18 | 19 | 11 | 26.5 | 17.0 | 8.5 | 32 | 18 | 9 | ||||||
0.56 | 26.5 | 18.5 | 10 | 32 | 18 | 9 | |||||||||
0.68 | 26.5 | 18.5 | 10 | 32 | 18 | 9 | |||||||||
0.82 | 26.5 | 22.0 | 12 | 32 | 20 | 11 | |||||||||
1 | 26.5 | 22.0 | 12 | 32 | 20 | 11 | |||||||||
1.2 | 32 | 22 | 13 | ||||||||||||
1.5 | 32 | 22 | 13 | ||||||||||||
1.8 | 32 | 24.5 | 15 | ||||||||||||
2.2 | 32 | 28 | 14 | ||||||||||||
2.7 | 32 | 33 | 18 | ||||||||||||
3.3 | 32 | 33 | 18 | ||||||||||||
3.9 | 32 | 37 | 22 | ||||||||||||
4.7 | 32 | 37 | 22 |
Note:We can offer your specific demand by technology treaty.
