Front Shovel, Mini, Small, Wheeled, Wheel Loader,SY956

Name: Front Shovel, Mini, Small, Wheeled, Wheel Loader,SY956
Brand: SYNBON
SKU: 158805048
Availability: InStock

US$ 46500 - 49900 MOQ: 1 Piece

Key Specifications

Brand Name:

SYNBON

Place of Origin:

China

Model Number:

SY956

Synbon Machinery Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

30 days

Brand Name SYNBON

Place of Origin China

Model Number SY956

Type Front Loader

Certification EPA,CE,ISO9001,

After-sales Service Provided Overseas third-party support available

Condition New

Dimension(Long * Breadth * High) 7920*3050*3400mm

Moving Type Wheel Loader

Rated Load 5000kg

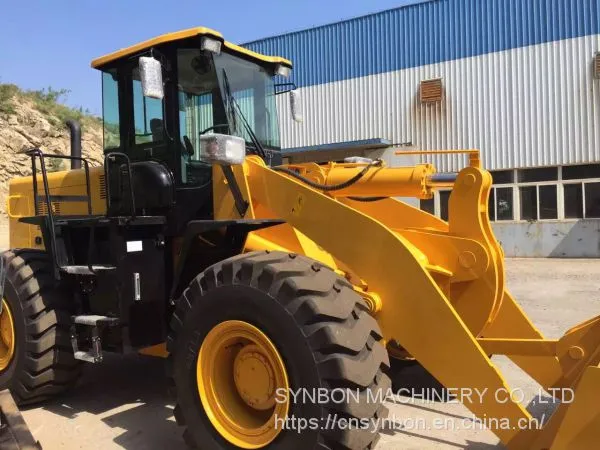

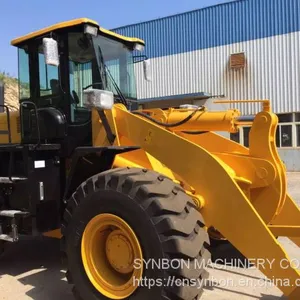

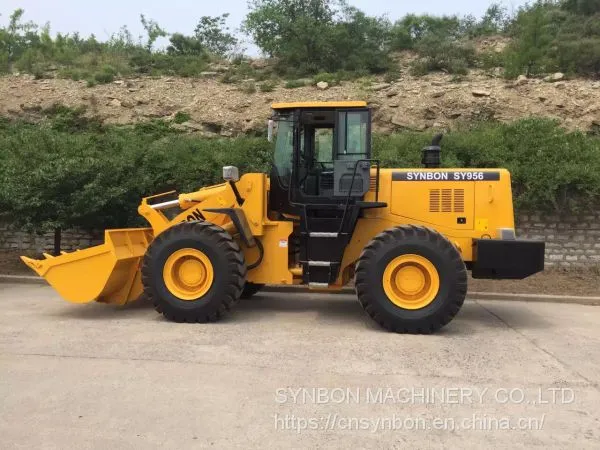

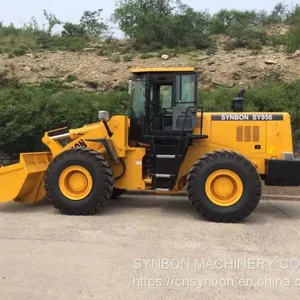

SYNBON SY956 WHEEL LOADER

1、 Equipped with Yuchai engine of high quality with strong torque and power.

2、 the hydraulic steering system provides much stability; powered shifting allows much convenience and flexibility in operating.

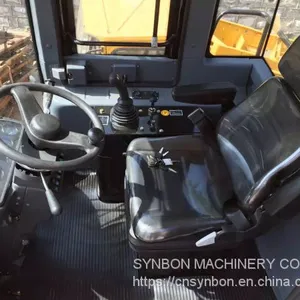

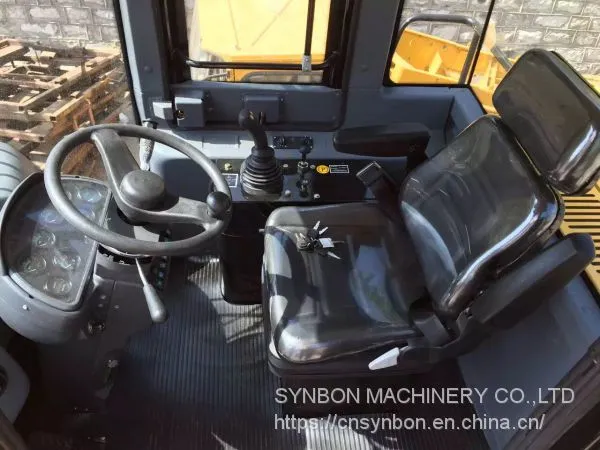

3、 A new type of sealed cab with an all-in-one dashboard is designed, which keeps a driver safe and comfortable.

4、 Pilot and air conditioners are standard equipments, whereas Cummins Engine, rock bucket,coal hopper, quick coupler and fork are optional ones.

rated load	5000kg
overall weight	16200kg
rated bucket capacity	3m³
maximum tractive force	152KN
maximum breakout force	≥170KN
maximum grade ability	30℃
maximum dump height	3150mm
maximum dump reach	1250mm
overall dimension (L×W×H)	792030503400mm
minimum turning radius	6640mm

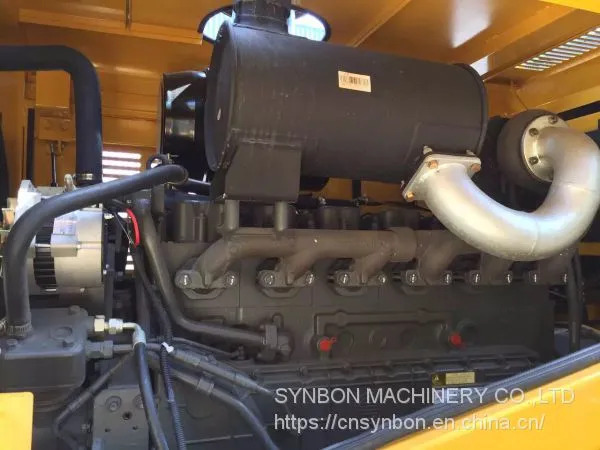

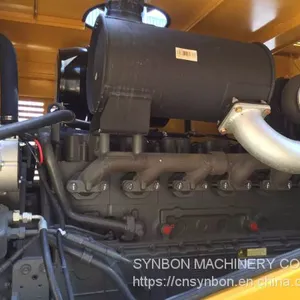

model	WD615G.220
type	lnline water cooling dry cylinder injection
No. of cylinder-bore/stroke	6－126×130mm
rated power	160kw--2200r/min
maximum torque	860N.m
min fuel-consume ratio	≤215g/kw.h
torque converter	HANGCHI
gearbox mode	Power shift normally engaged straight gear
gear shift	4 forward shift 3reverse shift
maximum speed	38km/h
main reducing spiral	bevel gear grade 1reduction
decelerating mode	planetary reduction,grade 1
wheel base (mm)	3200mm
wheel tread	2250mm
minimum ground clearance	450mm
system working pressure	18MPa
boom lifting time	5.95±0.2s
total time	10.95±0.5s
fuel tank capacity	300L
function of leveling automatically	yes
service brake	air over hydraulic disc brake on 4 wheels
parking brake	manual parking brake
type specification	23.5-25
front tyre pressure	0.4Mpa
rear tyre pressure	0.35Mpa
