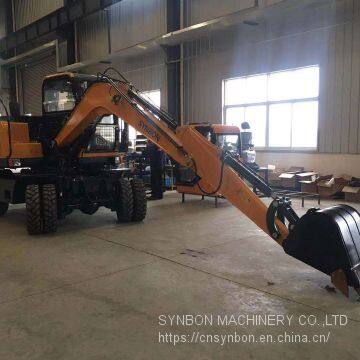

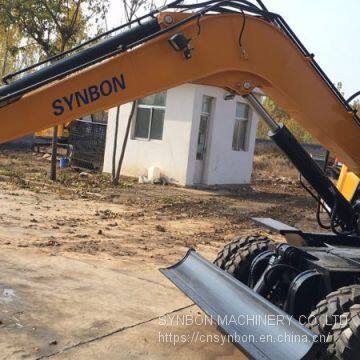

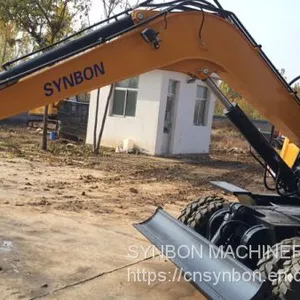

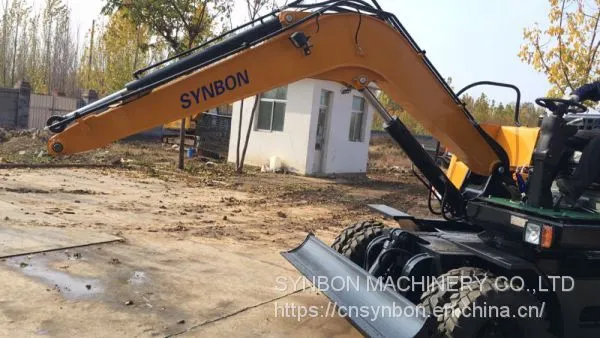

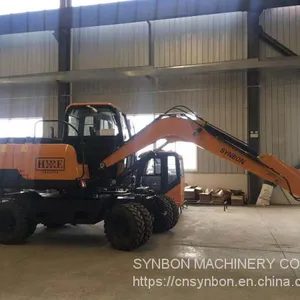

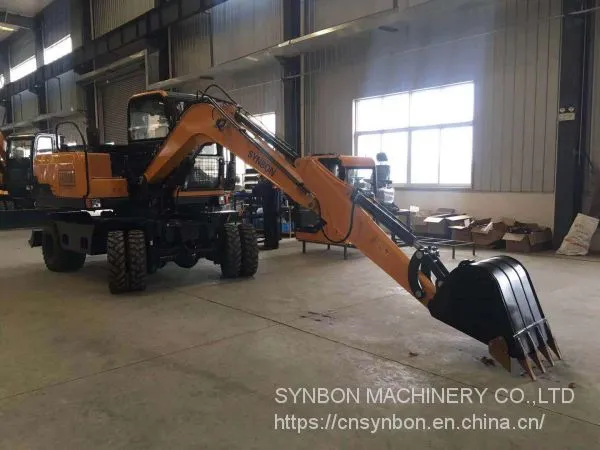

SYNBON WHEEL EXCAVATOR SYL-150
Product introduction:
1. domestic engine, power strong, cost-effective
2. imported hydraulic system or domestic load-sensitive system, high operating efficiency
3. hydraulic walk, optional three-speed control system
4. equipped with broken pipes, improve operating performance
5. Humanized design, comfortable operation, convenient maintenance
Type |
SYL150 WHEELED EXCAVATOR |
|
|
Main configuration and technical parameter |
Engine type |
YC4A125Z-T20 |
Rated power/speed |
100KW/2300r/min |
|
Steering width |
2500mm |
|
Tail turning radius |
2250mm |
|
Wheelbase |
2620mm |
|
Wheel tread |
1965mm |
|
Hydraulic system pressure |
31.5Mpa |
|
Bucket capacity |
0.7cbm |
|
Reverse speed |
11r/min |
|
Gradeability |
35% |
|
Maximum excavating force |
80KN |
|
Maximum excavating distance |
8310mm |
|
Maximum excavating depth |
5023mm |
|
Maximum excavating height |
9102mm |
|
Maximum dumping height |
6653mm |
|
Whole machine mass |
14020KG |
|
Tyre type |
8.25-20 |
|
Travel speed |
7.9-14km/h |
|
air conditioner |
within |
|
rotate |
360° |
|
size |
7600*2700*3090mm |
|
Main dimension as below:
Overall Length |
7600mm |
Overall Tall |
3090mm |
Overall Width |
2700mm |
Tyre Type |
8.25-20 |
Radius, Swing Center to Rear End |
2250mm |
Wheelbase |
2620mm |
Whell Tread |
1965mm |
Overall Height to Boom |
3450mm |
Steering Width |
2500mm |
Counterweight Ground Clearance |
1090mm |
Main parameter below
Max. Digging Height |
9102mm |
Max. Dumping Height |
6653mm |
Max. Digging Depth |
5023mm |
Max. Digging Radius |
8310mm |
rated power |
92kw |
Hydraulic System Pressure |
31.5MPa |
Bucket Volume |
0.7m3 |
Max. Digging Force |
80KN |
Gradeability |
35% |
Rotation Speed |
11r/min |
Travel Speed |
11-18km/h |
Approximate Weight |
14020kg |
