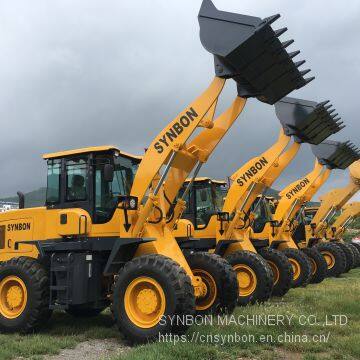

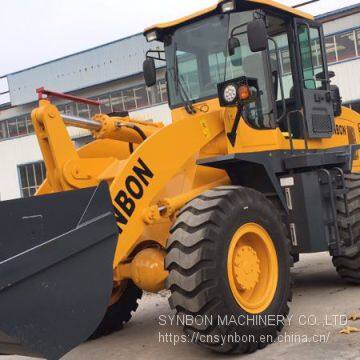

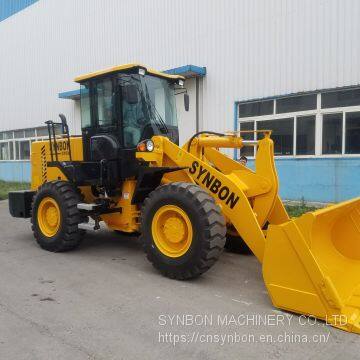

SYNBON wheel loader SY-936
1、 Equipped with Yuchai engine of high quality with strong torque and power.
2、 the hydraulic steering system provides much stability; powered shifting allows much convenience and flexibility in operating.
3、 A new type of sealed cab with an all-in-one dashboard is designed, which keeps a driver safe and comfortable.
4、 Pilot and air conditioners are standard equipments, whereas Cummins Engine, rock bucket,coal hopper, quick coupler and fork are optional ones.
Performance |
rated loading |
3000kg |
overall weight |
9600kg |
|
bucket capacity |
1.7-2.5m3 |
|
maximum traction force |
95KN |
|
maximum breakout force |
127KN |
|
maximum grade ability |
30℃ |
|
maximum dump height |
3100mm |
|
maximum dump reach |
1006mm |
|
overall dimension (L×W×H) |
6890*2430*3070mm |
|
minimum turning radius |
5097mm |
|
Engine |
model |
Weichai Duetz |
type |
Vertical, in-line, water cooled, 4-stroke diesel engine |
|
NO. of cylinder-bore*stroke |
6-108*125 |
|
rated power |
92kw—2200r/min |
|
maximum torque |
500N.m |
|
min. fuel-consume ratio |
≦210Kw h |
|
Transmission system |
torque converter |
YJ315-X |
gearbox mode |
Power shaft normally engaged straight gear |
|
gears |
4 forward 2 reverse |
|
maximum speed |
40km/h |
|
Drive axles |
main reducing spiral |
bevel gear grade 1reduction |
decelerating mode |
Planetary reduction grade 1 |
|
wheel base (mm) |
2660mm |
|
wheel tread |
1800mm |
|
ground clearance |
400mm |
|
Hydraulic system |
system working pressure |
16,5MPa |
boom lifting time |
4.83 |
|
total time |
9.15±0.5s |
|
Brake system |
service brake |
air assist disc brake on 4 wheels |
parking brake |
Manual disk brake |
|
Tyre |
type specification |
17.5-25 |
front tyre pressure |
0.4Mpa |
|
rear tyre pressure |
0.35Mpa |
