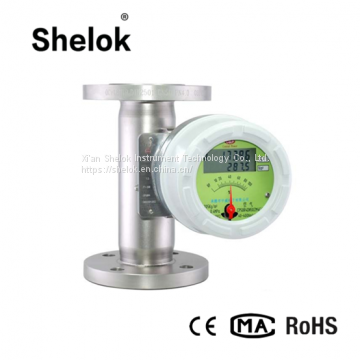

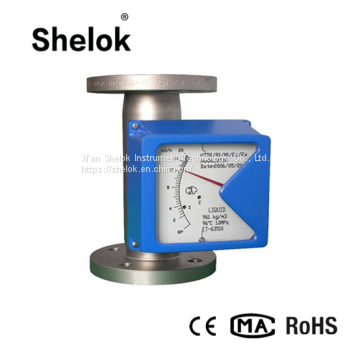

Flange type 4-20ma output digital rotameter flowmeter for Gas
Gas rotameter for measuring with a rota. It first converts the flow rate to the turbine speed, and then converts the speed into an electrical signal proportional to the flow rate. This flow meter is used to detect instantaneous flow and total accumulated flow, the output signal is frequency, easy to digitiz
digital rotameter
Main features of digital rotameter flowmeter for Gas
l Firm work, little maintenance and long life
l Low requirements to straight pipe part
l Broader ratio of flow rate 10:1
l Two-wire LCD indicator; instant/accumulated display of flow rate are available; backlight option.
l Single axis and sensitive display
l Rotation of non-contact magnetic coupling
l Can be applied to hazardous occasions such as flammable and explosive ones
l All-metal structure, fit for high temperature, high pressure and mediums with strong erosion.
l power supply such as two-wire system, battery, alternating current option
l Multi-parameters calibration function
l Function of date recovery, date copy and power-off protection
Technical parameters of digital rotameter
u Measuring range : water ( 20°C) 1- 200000 I/h
Air ( 20°C, 0.1013 Mpa) 003-4000m3/h
Make reference to flow rate sheet, order for special flow rate
u Ratio of spans : standard type 10 : 1 special type 20 : 1
u Accuracy : standard type class1.5 special type class1.0
u Pressure Class : standard type : DN15-DN50 4.0Mpa DN80 –DN200 1.6Mpa
Special type : DN15-DN50 25Mpa DN80 –DN200 16Mpa
Pressure class of clamp cover is 11.6 Mpa
Contact the plant for special type before choosing the type and ordering
u Pressure loss : 7kPa-70kPa
u Medium temperature : standard type : -80°C~ + 200°C : PTFE : 0°C~ 85°C
High temperature type : at most 400°C
u Medium viscosity : DN 15 : viscosity < 5mPa.s ( F15.1-F15.3 )
Viscosity < 30mPa.s ( F15.4-F15.8 )
DN 25 : < 250mPa.s
DN 50-DN 150 : < 300mPa.s
u Ambient temperature : liquid crystal type –30°C~+85°C
Pointer type –40°C~ +120°C
u Connection forms: standard type: DIN 2510 standard flange
Special type : flange and thread appointed by users of any standard
u Cable interface : M20 × 1.5
u Power Supply : standard type : 24V DC two-wire 4~20 mA ( 10.8 VDC ~ 36 VDC)
u Alarm output : upper limit and lower limit instant flow rate alarm
u Explosion-proof symbols: intrinsically safe ia II CT6 ,Explosion separation type d II CT6

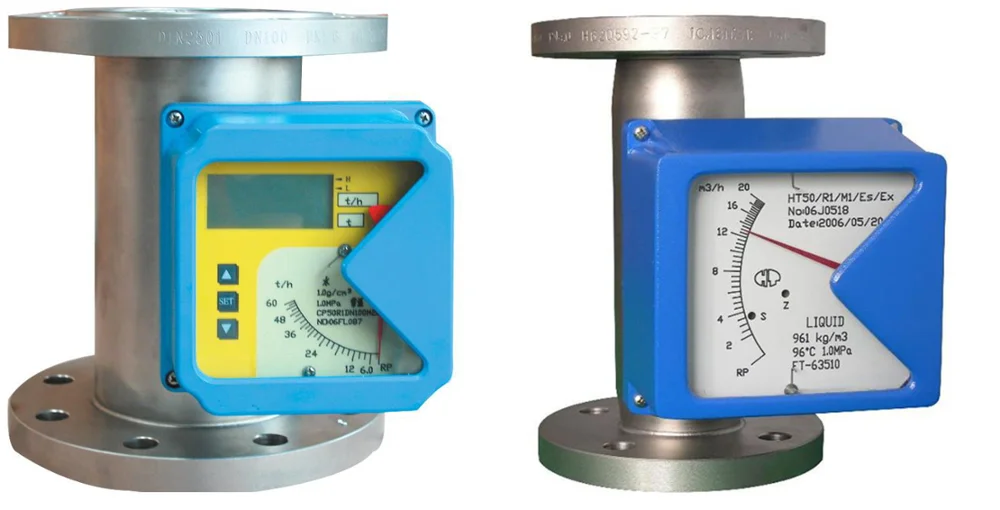

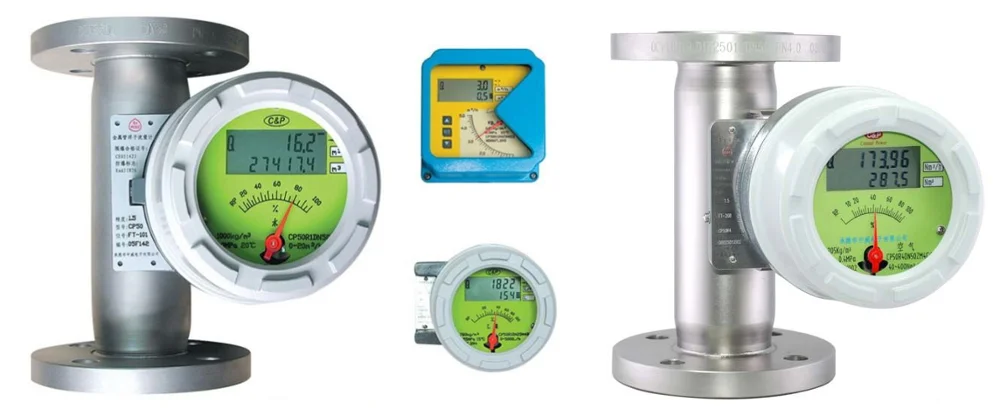

Detailed Images
Company Information:
Standard export carton packing.
DELIVERY TIME:3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
