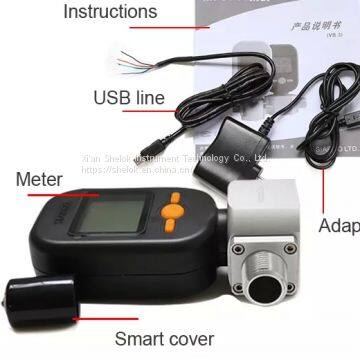

MF5712 Gas tiny flow meter



1.General Description MF5712 Gas tiny flow meter

MF5700 series mass flow meters feature cost effective ultra low power operating on 4 AA
batteries. The portable design has excellent exchangeable mechanical adaptors, easy data
accessible and user programmable capabilities. The internal data storage can also help for
purpose flow applicatio



2.Features and Applications MF5712 Gas tiny flow meter
- Ultra low power by batteries or optional external AC adaptor
- Potable design with rotatable meter head and easy exchangeable mechanical adaptors
- Customizable flow range with over 30:1 turn-down
- Rs485 Modbus protocol ready for networking
- User programmable range alarm for safety and other monitoring/control functionality
- Internal data storage for additional data safety
- Hygienic and oxygen safe copper body for various fluids



3. Technical parameters MF5712 Gas tiny flow meter

ParametersMF5706MF5712Units
Measuring range0-10, 0-25L/Min0-200L/min
Power supplyBattery or 5-12VDC adapter battery or 5-12VDC adapter
Output method RS485 optionalRS485 optional
Display LCDLCD
Display unit L/Min  M3L/Min  M3
Display resolution 0.01L/min0.1L/min
Accuracy 2%2%
Functions of keyboard Password set, back-to-zero, Alert set Password set, back-to-zero, Alert set
pressure of working0.8Mpa0.8Mpa
Connection 1/4" NPT 1/2" NPT
Working temperature -10 to + 55-10 to + 55Deg.C
Weight Net 350g  Copper 350g  Al.
Protection gradeIP40IP40

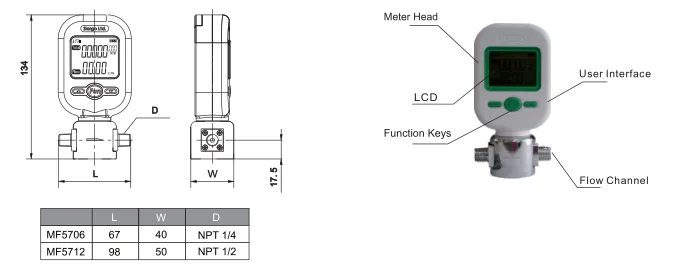

paste-pic-dp_uuid_5oo79

timg (1).jpg


Product Tags: tiny flow meter , Gas flow meter , MF5712 flow meter
