MF5700 Series Air Mass Flow Meter/Digital Air Small Totameter

MF5700 Series Air Mass Flow Meter/Digital  Air Small Totameter

Description 5700 Series Air Mass Flow Meter/Digital  Air Small Totameter

MF5700 series mass flow meters feature cost effective ultra low power operating on 4 AA batteries. The portable design has excellent exchangeable mechanical adaptors, easy data accessible and user programmable capabilities. The internal data storage can also help for purpose flow application.

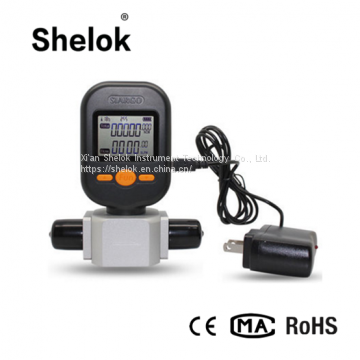

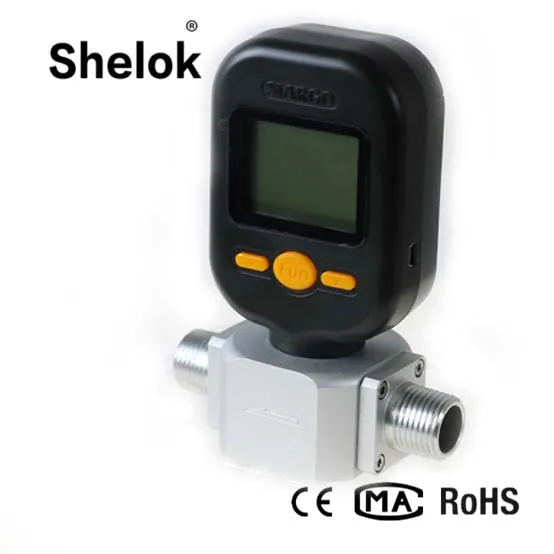

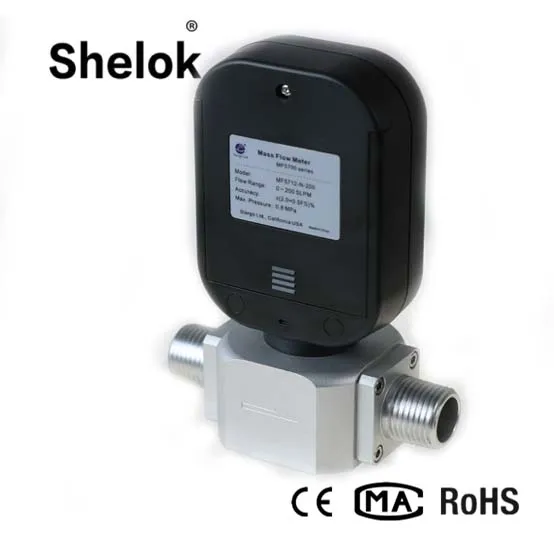

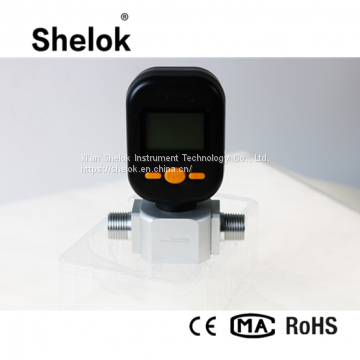

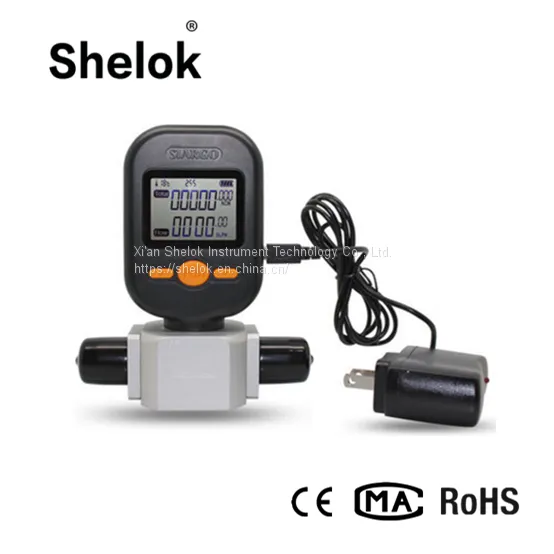

Detailed Images 5700 Series Air Mass Flow Meter/Digital  Air Small Totameter

Specification 5700 Series Air Mass Flow Meter/Digital  Air Small Totameter

Parameter                    MF5706                    MF5712                    Unit

Flow Range                 0~10, 25                     0~200                    SLPM

Tum-down Radio                              30:1

Accuracy                                  ±(2.0+0.5FS)                            %

Repeatability                                      0.5                                           %

Response Time                                  ≤2                                  Sec.

Power Supply       4 AA batteries (LR6) /5~10Vdc (with 220 Vac adaptor)

Output                                    RS 485 (Optional)

Display                                             LCD

Display Units    Instant flow rate: SLPM; Flow accumulation: NCM

Display Instant flow rate  0.01                            0.1                     SLPM

Resolution  Flow accumulation              0.001                              NCM

Continuous Working time   >60 days (with batteries)

Max. Pressure                            ≤0.8                                    Mpa

Working Temperature             -10℃ ~ +55 ℃

Storage Temperature              -20℃ ~ +65 ℃

Humidity                    <95% RH(No Icing or condensation)

Keyboard                                        3keys

User Interface                              mini USB

Calibration                       Air@ 20C, 101. 325kPa

DN                                6                                      12                       mm

Mechanical Connection   NPT 1/4                    NPT/1/2

Weight                                        350                                                 g

*For other gases calibration    please contact SHELOK

Features 5700 Series Air Mass Flow Meter/Digital  Air Small Totameter

 - Ultra low power by batteries or optional external AC adaptor
- Potable design with rotatable meter head and easy exchangeable mechanical adaptors
- Customizable flow range with over 30:1 turn-down
- Rs485 Modbus protocol ready for networking
- User programmable range alarm for safety and other monitoring/control functionality
- Internal data storage for additional data safety
- Hygienic and oxygen safe copper body for various fluids

Application 5700 Series Air Mass Flow Meter/Digital  Air Small Totameter

 MF5700 series mass flow meters suitable For Different Gas (Like Air,Compressed Air, Oxygen, Nitrogen, CO2; And Other Inactive Gas Ect. )

Instant Flow Rate Testing And Flow Accumlation Calculation.
