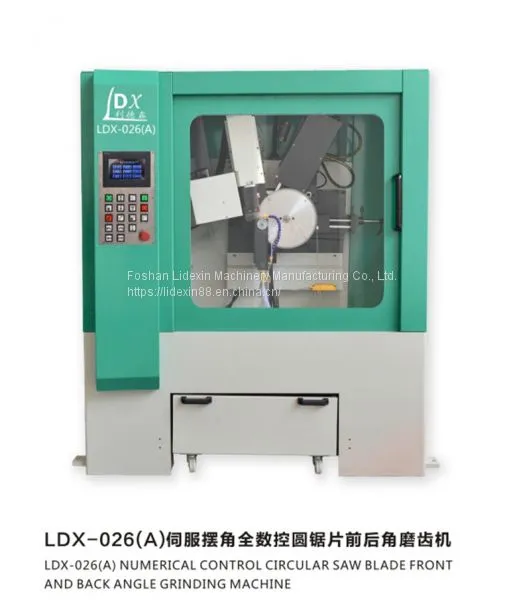

LDX-026(A) Servo Swing Angle CNC Circular Saw Grinding Machine
Technical features:

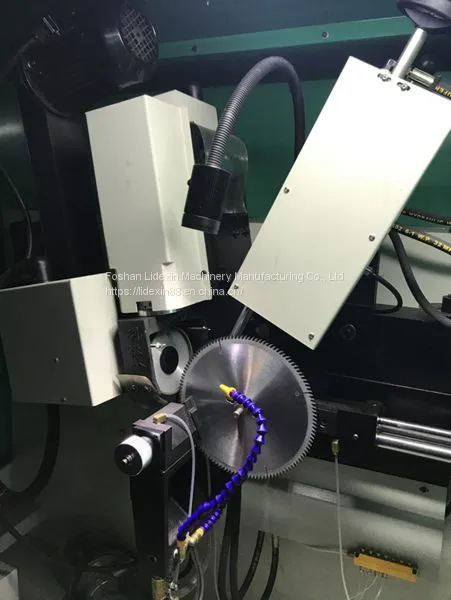

This machine refers to the characteristics of domestic and foreign models, it is a mechanical equipment for grinding and recycling of alloy circular saw blades, and it is also a necessary equipment for the production of new alloy circular saw blades. The standard type of this equipment can be between 100-¢800mm in diameter. All the tooth shapes contained in the front and rear corners of the alloy circular saw blade are subjected to grinding. A single machine can grind 30 to 60 pieces of alloy circular saw blades every day for 8 hours. It is a common equipment used by saw blade manufacturers and saw blade manufacturers. . PLC control, color touch screen display, infeed system uses precision Mitsubishi servo motor, flat ladder teeth can be finished grinding once, the same tooth can also be repeated grinding 2-3 times, grinding accuracy can be controlled within 0.05mm, the operation is easy to learn , No need to unlock and lock the button, the system will automatically lock according to the operating requirements, in the premise of sharp grinding alloy blade, but also fully extend the life of the alloy saw blade, each piece can be reused 15-30 times, this equipment is The majority of users praise.
Technical Parameters:
Machining blade diameter range: ¢80-¢800mm ¢500-¢2000mm
Blade Center Aperture: ¢10-220mm ¢10-¢220mm
Saw blade thickness (steel plate): 1-7mm 1-12
Pitch: 7-100mm 7-100mm
Tooth surface angle: -5°-+30°-22°-+22°
Tooth tip back angle: 6-45° 6-45°
Tooth slope left and right: Tooth top/tooth surface 45° Tooth top/tooth surface 45°
Sharpening stroke range: up to 25mm (adjustable) tooth/min Maximum 25mm (adjustable) tooth/min
Stepless speed change: 0.5-6mm/s 0.5-6mm/s
Working speed: max 20 teeth/min max 12 teeth/min
Feed stroke: 1-28mm (infinitely variable speed) 1-32mm (continuously variable speed)
Wheel size (diameter X hole): ¢125mmX¢32mm ¢125mmX¢32mm
Negative chamfer grinding: -27° -27°
Grinding head rotation angle: 90°, 180° 90°, 180°
Grinding wheel speed: 26m/s 26m/s
Coolant pump flow: 501/min 501/min
Coolant cylinder volume: 85L 120L
Total power: 2.6KW 3KW
Voltage: Three-phase 380V Three-phase 380V
Total amount of machinery: 900KG 1850KG
Mechanical size (length X models X height): 1500X1300X1900 1900X1300X2000
