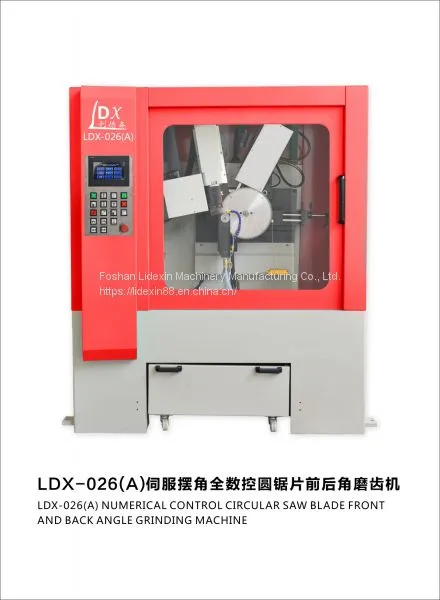

LDX-026（A)Servo Swing Angle Full CNC Alloy Saw Blade Front and Rear Angle Grinding Machine

LDX-026（A)Servo Swing Angle Full CNC Alloy Saw Blade Front and Rear Angle Grinding Machine thumbnail-1
LDX-026（A)Servo Swing Angle Full CNC Alloy Saw Blade Front and Rear Angle Grinding Machine thumbnail-2
LDX-026（A)Servo Swing Angle Full CNC Alloy Saw Blade Front and Rear Angle Grinding Machine thumbnail-3
LDX-026（A)Servo Swing Angle Full CNC Alloy Saw Blade Front and Rear Angle Grinding Machine thumbnail-4
LDX-026（A)Servo Swing Angle Full CNC Alloy Saw Blade Front and Rear Angle Grinding Machine thumbnail-5
LDX-026（A)Servo Swing Angle Full CNC Alloy Saw Blade Front and Rear Angle Grinding Machine photo-1
LDX-026（A)Servo Swing Angle Full CNC Alloy Saw Blade Front and Rear Angle Grinding Machine photo-2
LDX-026（A)Servo Swing Angle Full CNC Alloy Saw Blade Front and Rear Angle Grinding Machine photo-3
LDX-026（A)Servo Swing Angle Full CNC Alloy Saw Blade Front and Rear Angle Grinding Machine photo-4
LDX-026（A)Servo Swing Angle Full CNC Alloy Saw Blade Front and Rear Angle Grinding Machine photo-5
US$ 88000 - 108000 MOQ: 1 Stone
Key Specifications
Get Latest Price
Brand Name:
Li De xin
Place of Origin:
Bermuda
Model Number:
LDX-026(A)
Contact Supplier Request Quote Chat Now
Foshan Lidexin Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu Wharf
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Li De xin
Place of Origin Bermuda
Model Number LDX-026(A)

LDX-026(A)伺服摆角全数控圆锯片磨齿机

技术特点：

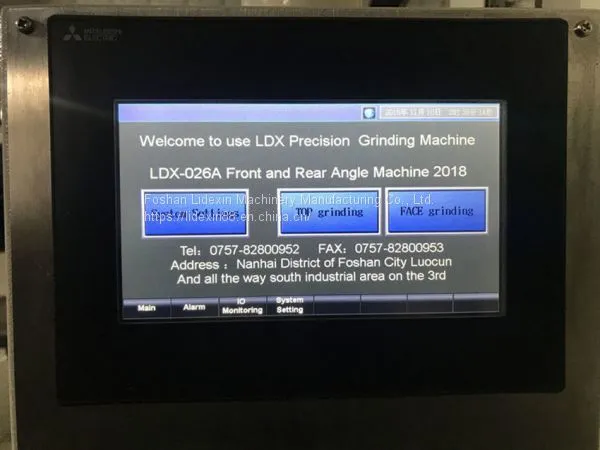

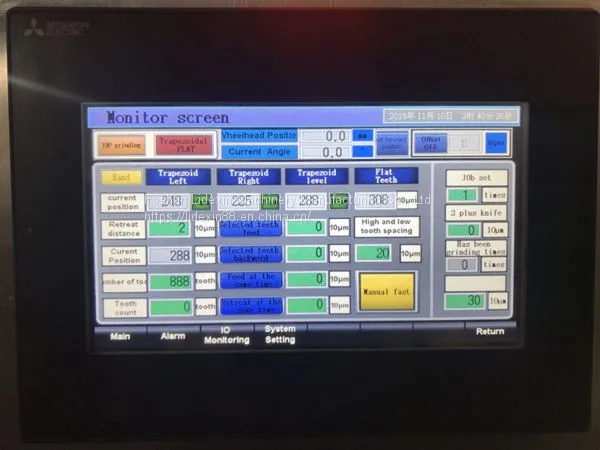

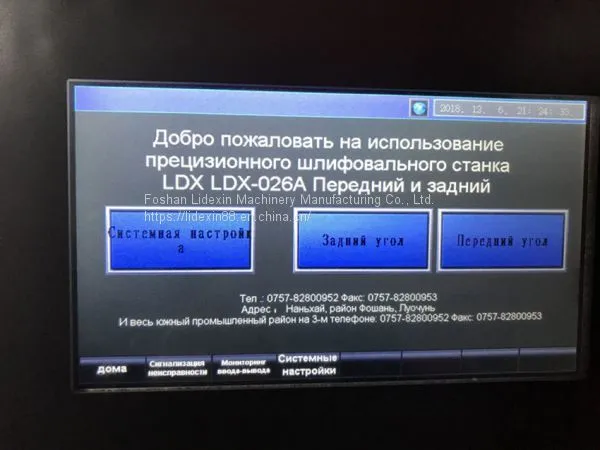

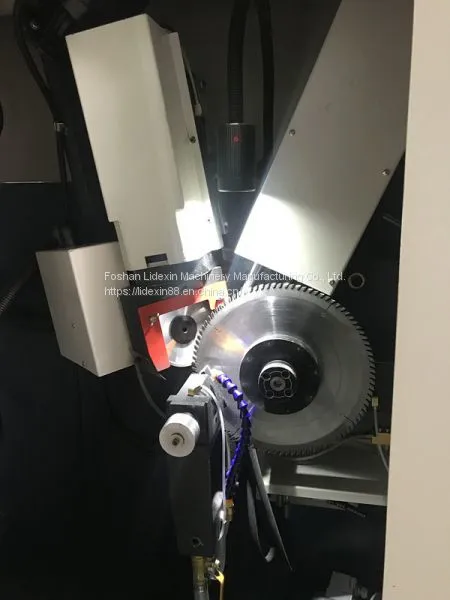

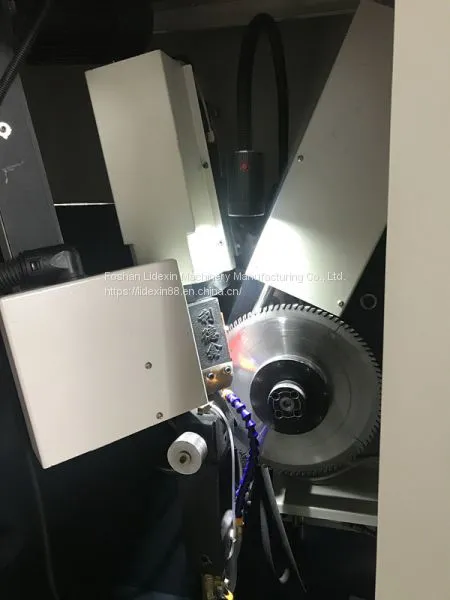

该机参考了国内外机型特点，是针对合金圆锯片进行修磨再利用的机械设备，也是生产新合金圆锯片的必要设备，本设备标准型可对直径￠100-￠800mm之间的合金圆锯片前角、后角包含的所有齿型进行修磨，单台机每天8小时可以修磨合金圆锯片30-60片，是锯片使用厂家和锯片制造厂家常用的设备。PLC控制，彩色触摸屏显示，进刀系统采用精密的三菱伺服电机，平梯齿可一次修磨完成，同齿也可重复修磨2-3次，研磨精度可以控制在0.05mm以内，操作简单易学，无需解锁和锁定按钮，系统自动根据操作要求自动锁定，在将合金锯片修磨锋利的前提下，还可充分延长合金锯片使用寿命，每片可重复使用15-30次，此设备得到了广大用户好评。



技术参数：

加工锯片直径范围：￠80-￠800mm             ￠500-￠2000mm

锯片中心孔径：￠10-220mm                    ￠10-￠220mm

锯片厚度（钢板）：1-7mm                      1-12

齿距：7-100mm                               7-100mm

齿面角度：—5°-+30°                      —22°-+22°

齿顶背角：6-45°                           6-45°

齿左右斜度：齿顶/齿面45°                  齿顶/齿面45°

刃磨行程范围：最大25mm（可调）齿/分         最大25mm（可调）齿/分

无极变速：0.5-6mm/s                          0.5-6mm/s

工作速度：最大20齿/分                        最大12齿/分

进给行程：1-28mm(无极变速)                   1-32mm(无级变速)

砂轮尺寸（外径X孔）：￠125mmX￠32mm          ￠125mmX￠32mm

负倒角研磨：-27°                            -27°

磨头可旋转角度：90°，180°                   90°，180°

砂轮转速度：26m/s                              26m/s

冷却液水泵流量：501/min                       501/min

冷却液缸容积： 85L                            120L

总功率：2.6KW                                 3KW

电压：三相380V                               三相380V

机械总量：900KG                               1850KG

机械尺寸（长X款X高）：1500X1300X1900           1900X1300X2000

Product Tags: TCT saw blade grinding machine , Saw blade grinding machine , Circular saw blade grinding machine
