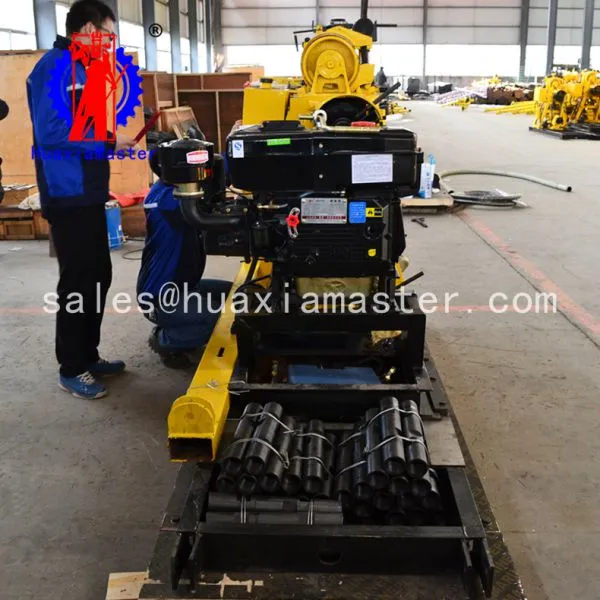

HZ-200YY drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, holes in concrete structure, river levees, civil wells and earth temperature central air-conditioner.
1. Characteristic of HZ-200YY hydraulic drilling rig
a. the highest speed can reach 1045r/min with 5 gears, improved drill efficiency
b. adopted 53x59 drilling rod, high rigidity and strong delivery torque.
c. equipped with national patent technology-taper clutch, make the machine easy to operate and free maintenance.
d. use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.
e. vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.
2. Parameters of HZ-200YY hydraulic drilling rig
Max open hole diameter |
300mm |
End hole diameter |
75mm |
Drill rod diameter |
60mm |
Drilling angle |
90° |
Drill weight (without power) |
975kg |
Triangle conveyer belt |
B950 * 4; B1700 * 3 |
Main machine moving distance |
300mm |
Power |
Diesel engine 22HP |
Electric motor 15kw | |
Spindle | |
Spindle speed |
64/128/287/557r/min |
Spindle stroke |
450mm |
Hoist | |
Max. lifting capacity |
2400kg |
Single line lifting speed |
0.41, 0.82, 1.64m/s |
Wire rope diameter |
13mm |
Wire rope length |
35m |
Reel diameter |
140mm |
Hug floodgate diameter |
260mm |
Hug floodgate belt width |
70mm |
Mud pump | |
Type |
Horizontal single-urn twin-action |
Displacement |
Diesel engine 170L/min |
Electric motor 150L/min | |
Maximum pressure |
3Mpa |
Work pressure |
1.5Mpa |
Inlet pipe diameter |
40mm |
Outlet pipe diameter |
30mm |
Triangle conveyer belt |
B1728mm |
