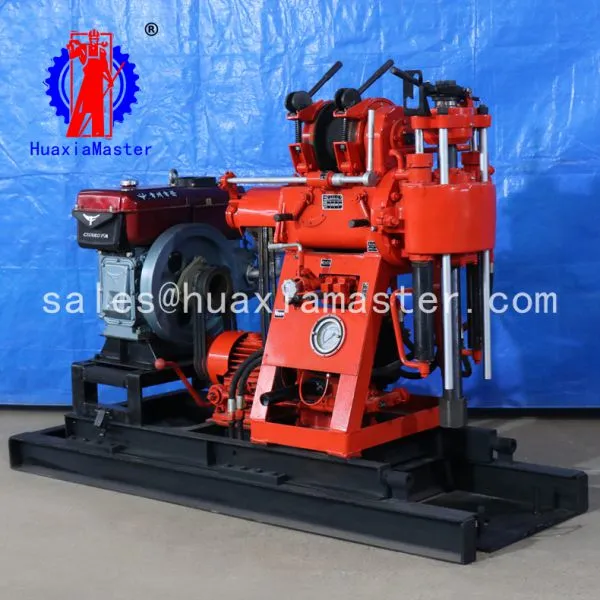

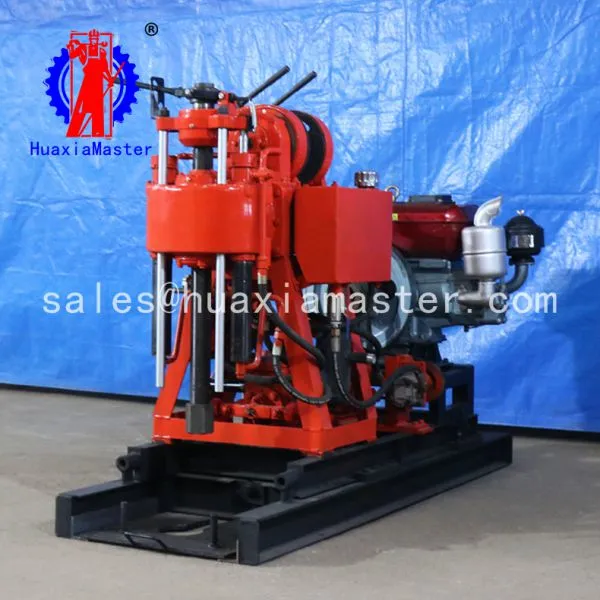

Help CenterXY-100 Hydraulic Core Drilling Rig
Related Products
-
XY-150 Hydraulic Core Drilling RigUS$ 4500 - 5000MOQ: 1 Set -
XY-180 Hydraulic Core Drilling RigUS$ 4500 - 5000MOQ: 1 Set
-
XY-200 Hydraulic Drilling Machine in Drilling MachineUS$ 4500 - 5000MOQ: 1 Set
-
XY-3 Factory Price Portable Core Bore Rig Water Well Drilling Machine for SaleUS$ 4500 - 5000MOQ: 1 Set
-
XYX-3 Wheeled Hydraulic Water Well Drilling Rig Machine for SaleUS$ 4500 - 5000MOQ: 1 Set
1. Application range of XY-100 hydraulic drilling rig
XY-100 core drilling rig is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects.
2. Technical Specification of XY-100 core drilling rig
Drilling depth |
110 |
Maximum open hole caliber |
220mm |
End hole caliber |
75mm |
Drill rod caliber |
50mm /42mm |
Drilling angle |
90 |
Drilling rig weight (Exclude diesel engine) |
610kg |
Unity machine dimensions |
2.1*0.9*1.3m |
Spindle | |
Spindle speed |
130/300/480/730/830/1045 r/min |
Spindle stroke |
450mm |
Hoist | |
Max. Lifting capacity with single rope |
1600kg |
Lifting speed with single rope |
1.06/0.67/0.32 m/s |
Wirerope caliber |
13mm |
Wirerope cubic measure |
35mm |
Hug floodgate caliber |
254mm |
Hug folldgate belt width |
50mm |
Distance between drill and hole |
230mm |
Mud pump | |
Type |
Horizontal single-urn twin-action |
Displacement (with diesel engine/electric motor) |
170L/min |
Max. pressure |
1.5Mpa |
Work pressure |
0.7Mpa |
Power | |
Diesle engine |
S1100 |
Electric motor |
Y160M-4 / 10KW |
Drilling depth |
110 |
Maximum open hole caliber |
220mm |
End hole caliber |
75mm |
Drill rod caliber |
50mm /42mm |
Drilling angle |
90 |
Drilling rig weight (Exclude diesel engine) |
610kg |
Unity machine dimensions |
2.1*0.9*1.3m |
Spindle | |
Spindle speed |
130/300/480/730/830/1045 r/min |
Spindle stroke |
450mm |
Hoist | |
Max. Lifting capacity with single rope |
1600kg |
Lifting speed with single rope |
1.06/0.67/0.32 m/s |
Wirerope caliber |
13mm |
Wirerope cubic measure |
35mm |
Hug floodgate caliber |
254mm |
Hug folldgate belt width |
50mm |
Distance between drill and hole |
230mm |
Mud pump | |
Type |
Horizontal single-urn twin-action |
Displacement (with diesel engine/electric motor) |
170L/min |
Max. pressure |
1.5Mpa |
Work pressure |
0.7Mpa |
Power | |
Diesle engine |
S1100 |
Electric motor |
Y160M-4 / 10KW |
