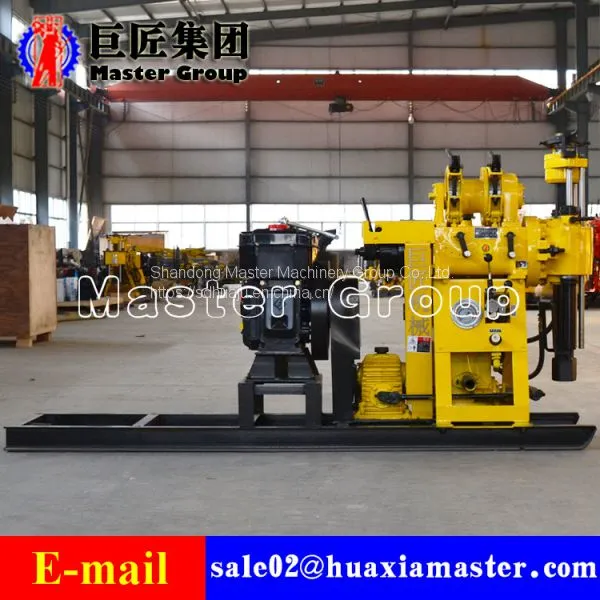

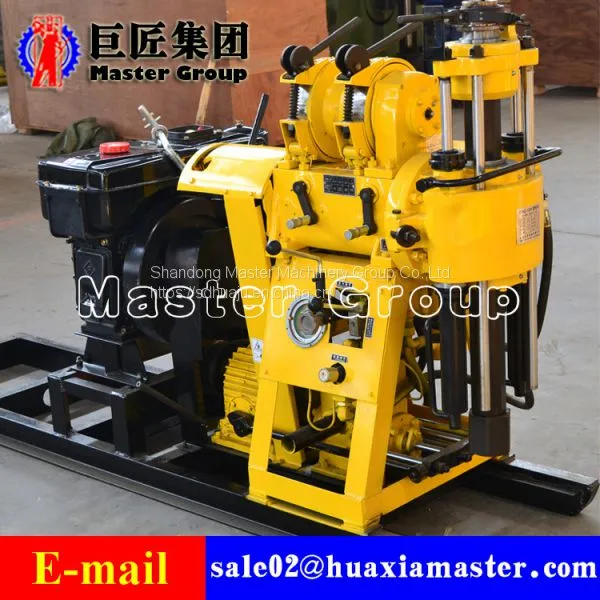

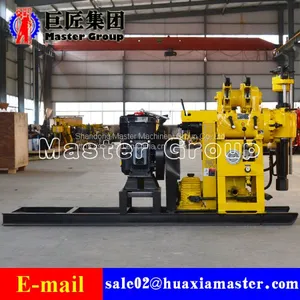

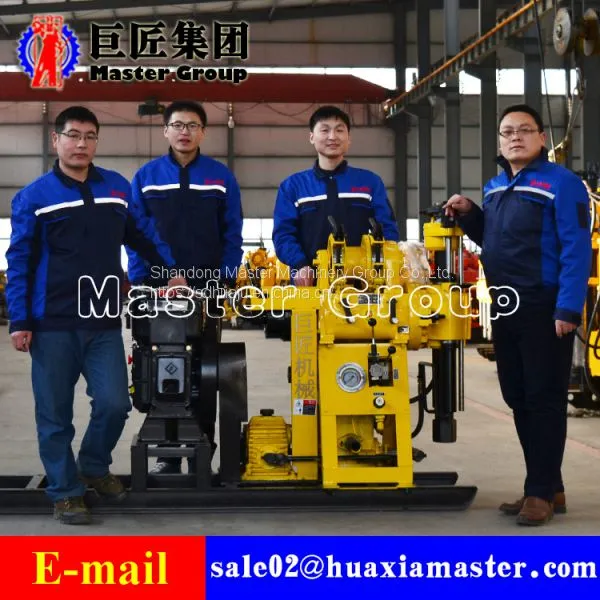

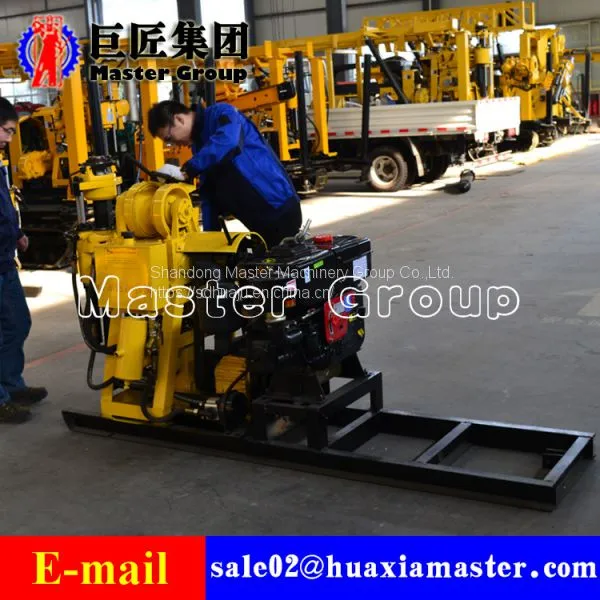

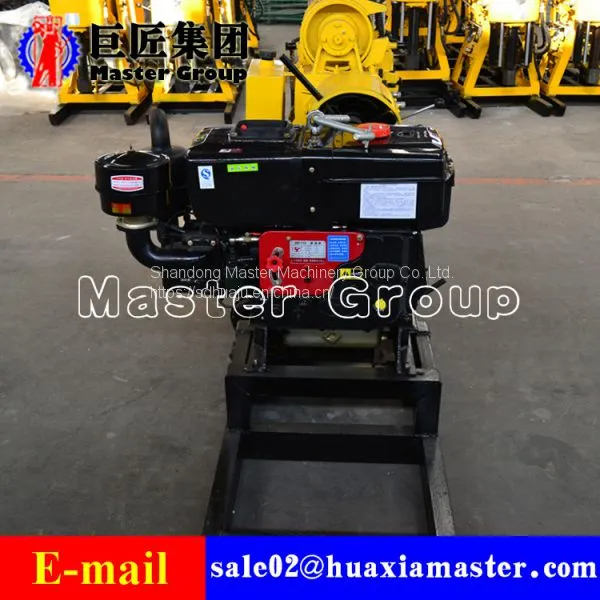

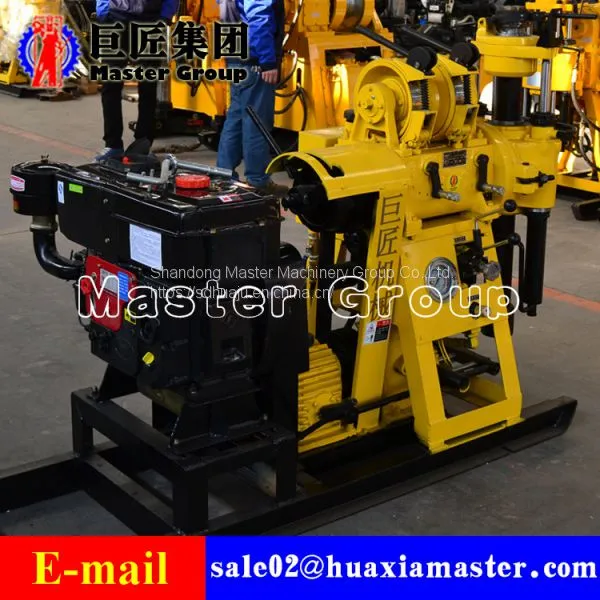

Help CenterHZ-130Y Small Water Well Drilling Rig / Hydraulic Water Well Digging Machine 130m Depth Borewell Drills
Related Products
-
Small Portable Full Hydraulic Water Well Drilling Rig Drilling Rig / Portable Digging Machines / Borehole Drilling MachineUS$ 5000 - 5100MOQ: 1 Set -
Truck Mounted Deep Bore Hole Drill Rigs - High Quality Hydraulic Water Well Drilling RigUS$ 5500 - 5600MOQ: 1 Set
-
Crawler Hydraulic Rotary Drilling Machine Water Well Drilling Rig Machine On SaleUS$ 6000 - 6200MOQ: 1 Set
-
New Design Most Capable Water Drilling Rigs, Portable Borehole Drilling Machine With Good QualityUS$ 6000 - 6100MOQ: 1 Set
-
Tractor Mounted Drilling Machine,water Well Drilling Machine,portable Water Well Drilling Rig for SaleUS$ 6200 - 6300MOQ: 1 Set
1. Applications of HZ-130Y Hydraulic Rotary Drilling Rig
geological survey and exploration,
basic exploration for roads
high-rise buildings,
inspection holes for various concrete structures,
river embankments
grouting holes
direct grouting,
civil water well
ground temperature central air conditioners.
2. Features of HZ-130Y Hydraulic Rotary Drilling Rig
l Hoist installation holder, forming structure of double support wheel, can withstand strong impact.
l Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
l This machine adopts the conical clutch of national patent technology, which has the characteristics of large transmission torque, convenient operation and no maintenance required.
l Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission
3. Specifications of HZ-130Y Hydraulic Rotary Drilling Rig
HZ-130Y Hydraulic Rotary Drilling Rig | |
Drilling depth |
130m |
Maximum open hole caliber |
220mm |
End hole caliber |
75mm |
Drill rod caliber |
50mm |
Drilling angle |
90-75° |
Drill weight (Not include power) |
750kg |
Spindle | |
Spindle speed |
142 285 570r/min |
Spindle stroke |
450mm |
Hoist | |
Max.single line hoisting capacity |
1600kg |
Single line lifting speed |
0.41/0.82/1.64m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Tightrope caliber |
27m |
Mud pump | |
Type |
Horizontal single urn twin-action |
Electric motor |
95/77 l/min |
Maximum pressure |
1.2mpa |
href="" Work pressure |
0.7mpa |
Water inlet caliber |
30mm |
Water to exit caliber |
20mm |
Triangle conveyer belt |
B1575mm |
