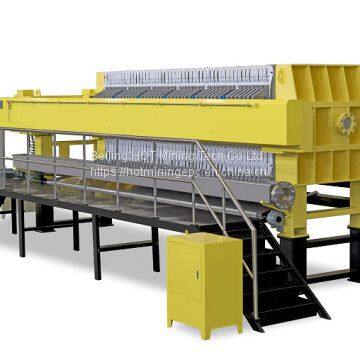

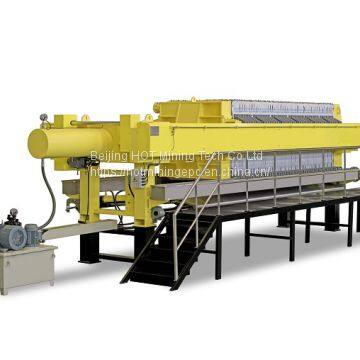

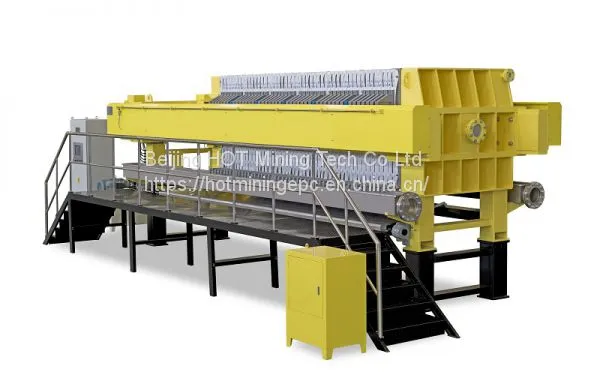

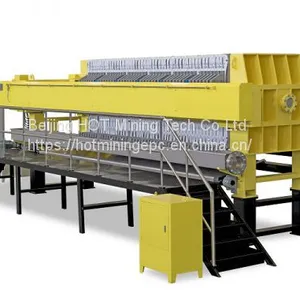

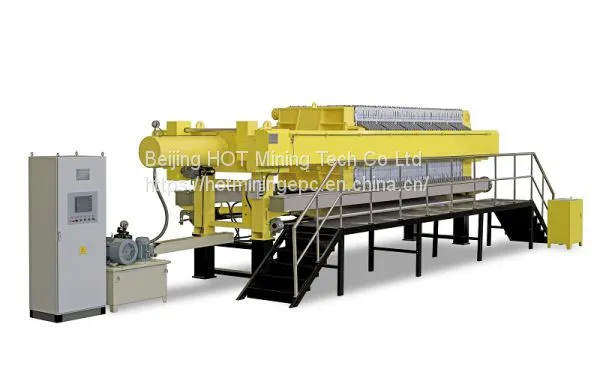

Membrane Filter Press
Brief introduction of membrane filter press：
Membrane filter press is a solid and liquid separation machine. It is mainly consist of frame, filter plate, hydraulic pressing system and electric control cabinet. It has the advantage of hydraulic pressure, automatic maintain pressure. It works stably .It has a compact structure and easy to use. Our filter press machine has the advantage of large capacity, energy and labor saving etc.
Membrane filter press is widely used in pharmaceutical, chemical and metallurgy industries. It can also be used in standard parts, non-standard screws, dyes, food, brewing, ceramics, oil refining, sewage treatment and other environmental protecting industries.
Working principle of membrane filter press:
Membrane filter press takes filter cloth as the medium to separate solid and liquid. It is a separating machine with wide range of particle size. The filter cloth spreads on the filter board surface. It is supported by the swelling groove of filter board. When the filter board is clamped, filter cloth turns to sealing materials, and the cavity between every two filter board forms a separated filter room. During the filter processing, the materials come through the central opening into the filter room, the filtrate pushed by the feeding pressure to flow out of the filter board . Membraner filter press can be divided into two types according to filtrate discharging ways: open channel flow and under channel flow.
Features membrane filter press：
a.Automatic control and continuous working
b.Low energy cost and long service life
c.High dewatering efficiency and high solid containing rate of mud cake
d.Easy maintenance and management
e.Low noise and less chemicals
f.Economical and reliable, wide application.
Technical parameters of membrane filter press:
Application of membrane filter press:
Fitler press is widely used in the sludge dewatering of city waste water treatment plants, textile dyeing, electroplating, papermaking, leather, brewing, food processing, coal washing, the petroleum chemical industry, chemistry, metallurgy, pharmacy, ceramics etc. industries. It is also suitable for separating solid from liquid and liquid leaching process.
