Product Description

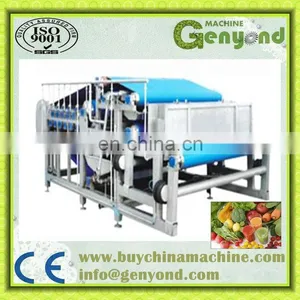

belt type juice filter press
Carefully developed and become, is a highly efficient extrusion equipment, in the fruit juice and vegetable juice production is a key equipment to the juice yield high and low.Can be widely used in berries, kernel fruit and vegetables juice industry.The equipment adopts the multistage fold to stick pressure and multistage pneumatic roller pressure, crushing strength, high rate of juice.At the same time also has the discharged, energy saving, high degree of automation, continuous working, strong commonality, filter, filter cake water filter low, operation and maintenance is convenient wait for a characteristic, is a higher rate of juice, juice equipment.Use of such a juicing equipment can make juice juice yield increased by 20 to 35%, the juice rate is as high as 75 ~ 80% (depending on the raw material), can greatly reduce the production cost, improve the economic benefits of enterprises.
This equipment can also be used for food, chemical industry, environmental protection, light industry and so on some of the powder and the slurry pressure filtration dehydration of the object.
Parameter ( Industrial Belt pressure filter for sale)
Parameter | Model | ||||
| G-2500H | G-2500L | G-1750 | G-1200 | G-800 |
Capacity t/h | 18-22 | 18-22 | 8-12 | 4-6 | 1-3 |
Belt Width mm | 2500 | 2500 | 1750 | 1200 | 800 |
Belt length mm | 17000 | 14320 | 14320 | 14000 | 9000 |
Belt speed m/s | 3.5-8 | 3.5-8 | 3.5-8 | 3.5-8 | 3.5-8 |
Main motor power kw | 5.5 | 4 | 3 | 2.2 | 1.5 |
Fabric motor kw | 0.55 | 0.55 | 0.37 | 0.37 | 0.25 |
Single squeeze juice rate | 78% | 75% | 75% | 75% | 75% |
Press roll number | 24 | 20 | 20 | 20 | 20 |
Air bag pressure mp | 0.4-0.55 | 0.4-0.55 | 0.4-0.55 | 0.4 | 0.4 |
Feature ( Industrial Belt pressure filter for sale ):
Structure design of heavy load, high rate of juice;All stainless steel manufacturing, in line with food hygiene standards;Filter belt, airbag, reducer adopts foreign famous quality products, stable and reliable;Perfect automatic CIP cleaning system, without manual intervention;Inverter control walking speed belt, upper and lower filter with interchangeable;Touch screen operation control system, intuitive and friendly interface.
Welcome to orde now !
Thanks for your business and supporting !
Contact :Mary, E-mail:sinomachine AT
Skype:genyondmachine1. Mobile:+86-13818596142
Company Profile
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
