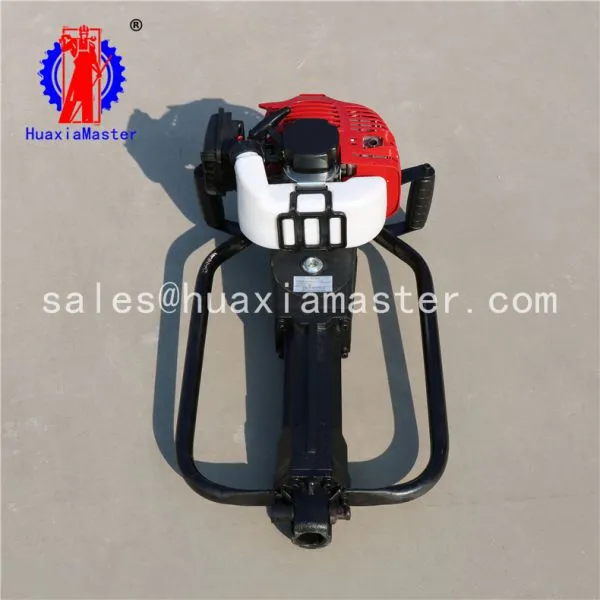

1.The brief introduction of QTZ-1 soil sample drilling rig
QTZ-1 portable soil drilling rig is a portable and portable soil sampling drilling machine developed by our company Shandong Master Machinery Group Co.,Ltd, which is comparable to a huge hydraulic and pneumatic drilling rig. The drilling rig is a dynamic (gasoline) driller (soil sampler) developed, The rig uses gasoline power, is simple in operation, high in safety and stable in performance. It can greatly reduce the labor force of the soil sampling personnel, taking into account the rapid and simple sampling speed.
2.The range of application of QTZ-1 portable soil drilling rig
a.Geotechnical engineering investigation,environmental soil survey,agricultural soil survey.
b.Groundwater survey,coastal geological survey,wetland environment investigation.
c.Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
3.The technical parameter of QTZ-1 portable drilling rig
QTZ-1 portable earth drilling rig | ||
|
Power |
Power |
2.8hp |
Fire mode |
Backflush pull rope |
|
Oil consumption |
0.5l/h |
|
Impact times |
1500r /min |
|
Impact energy |
20j-55j |
|
Core depth |
5m-10m |
|
Host weight |
23kg |
|
4.The packing list of QTZ-1 portable drilling rig
Name |
Model |
Unit |
Quantity |
Portable driller |
QTZ-1 |
platform |
1 |
Square buckle |
Φ34*200mm |
pcs |
1 |
Take over |
Φ34*170mm |
pcs |
4 |
Square buckle drill rod |
Φ34*910mm |
root |
5 |
Square buckle head |
Φ54/34 |
pcs |
1 |
Collar |
Φ54*140mm |
pcs |
1 |
Open tube |
Φ54*600mm |
root |
1 |
Inner edge pipe boots |
Φ54*90mm |
pcs |
1 |
Outer edge pipe boots |
Φ54*90mm |
pcs |
1 |
Square buckle head |
Φ73/34 |
pcs |
1 |
Collar |
Φ73*140mm |
pcs |
1 |
Open tube |
Φ73*600mm |
root |
1 |
Inner edge pipe boots |
Φ73*90mm |
pcs |
1 |
Outer edge pipe boots |
Φ73*90mm |
pcs |
1 |
Portable sounding hammer |
10kg |
pcs |
1 |
Square contact probe |
Φ34*98mm |
pcs |
1 |
Square buckle and pull the counter cap |
pcs |
1 |
|

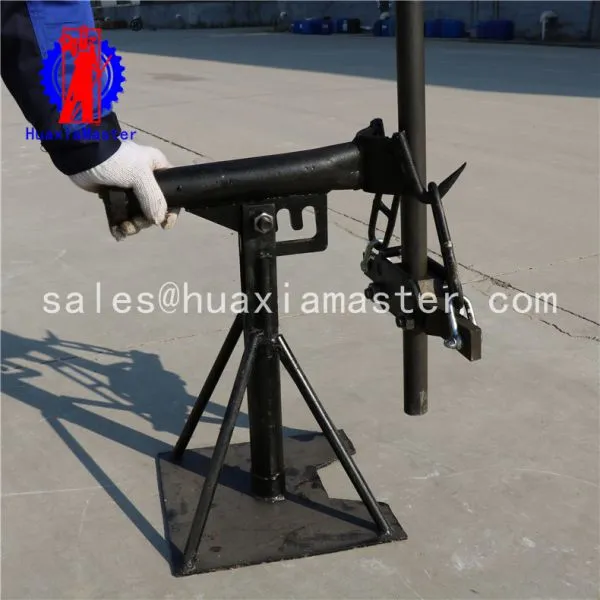

Puller |
Three force arm |
platform |
1 |
The ratio of oil |
25:1 |
pcs |
1 |
Tool kit |
set |
1 |
