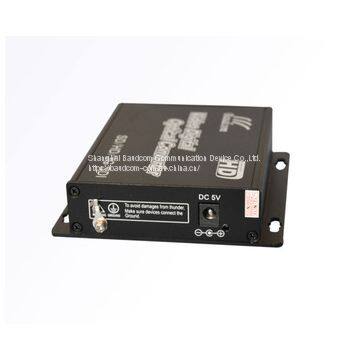

3G HD SDI Digital Video fiber optic transceiver

Internationally advanced SOC digital signal processing technology and full digital video non-compression transmission technology are used in full digital video + optional optical transceiver, to real-time synchronize one-way high-definition SDI video and data/ switching value in single-core optical fiber and achieve lossless and high-quality transfer. Advanced high-stability components are used in optic circuit and core circuit of high-definition full digital video optical transmitter and receiver, and all optical/electric interfaces are in accordance with international standards, free of adjustment prior to mounting and applicable in various operating environments.

2．Overview

2.1   Features

l       Full digital non-compression broadcast level transmission;

l       point -to-point, cascade connected, distributed network connection supported, and with steady SNR;

l       level 3 lightning protection;

l       free of cross interference resulted from FM/PM/AM optical transmitter and receiver;

l       all high-resolution video signal supported;

l       Lossless video regeneration & relaying supported;

 2．Overview

2.1   Features

l       Full digital non-compression broadcast level transmission;

l       point -to-point, cascade connected, distributed network connection supported, and with steady SNR;

l       level 3 lightning protection;

l       free of cross interference resulted from FM/PM/AM optical transmitter and receiver;

l       all high-resolution video signal supported;

l       Lossless video regeneration & relaying supported;

l       super optic dynamic range and free of adjustment prior to use;

l       surface coating technique;

l       fiber optic WDM/CWDM/DWDM technique;

l       1000 M optical fiber transmission, easy for update;

l       industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;

l       on-power hot plug;

l       wall-mounted or 2U rack-mounted;

l       user's customization and OEM supported.

3.  Operating Environment

3.1  Operating Voltage

AC 220V/ DC +5V

3.2.  Operating Humidity

Operating Temperature: -40℃to+85℃

Storage Temperature:  -55℃ to +85℃

Humidity:  0 to 95%condensation free

4.  Quality Assurance

MTBF > 100,000 hours;

Replacement within one year and non-charge repair within three years guaranteed.

5.  Application Industries

Intelligent transport monitoring system, safety and security monitoring system, campus network, industrial monitoring (electric power, chemical industry, steel, oil, railway and water conservancy etc.); military monitoring (warehouse, guard and confidentiality etc.)  TV program transfer system.
