4 Channel Video Fiber Multiplexer

4 Channel Video Fiber Multiplexer thumbnail-1
4 Channel Video Fiber Multiplexer thumbnail-2
4 Channel Video Fiber Multiplexer photo-1

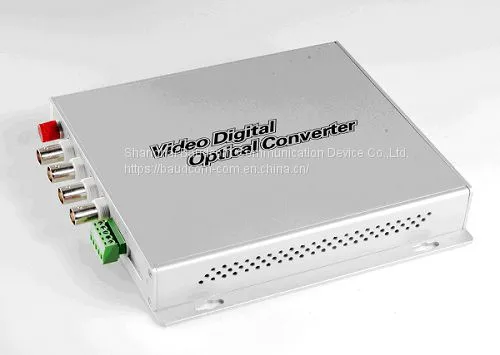

4 Channel Video Fiber Multiplexer photo-2
US$ 21 - 31 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Baudcom
Place of Origin:
China
Model Number:
BD-DV4P0000ST
Contact Supplier Request Quote Chat Now
Shanghai Baudcom Communication Device Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Baudcom
Place of Origin China
Model Number BD-DV4P0000ST

Overview:

BD-DV40000 series video fiber multiplexer can  simultaneously transmit 4 channels broadcast quality video,1-4  channels unidirectional or bidirectional audio,1-4chnnels unidirectional  or bidirectional data,one port Ethernet,Telephone and Dry contact over  one multimode or single-mode optical fiber. These multiplexers are  typically used in applications where the cameras have P/T/Z  capabilities. Plug and Play design ensures the ease installation and  operation. All the electronic and optical interface comply with  international standards,customer need not to do any adjustments during  installation. LED indicators are provided for instantly monitoring  system status. Standalone or rack-mount video fiber multiplexer are  available ,which is suitable for different working environment .

PRODUCT CHARACTERISTICS

4channels encoded and non-compression broadcast quality video transmission
Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocols
Support any high-resolution video signal
Automatic compatible PAL, NTSC and SECAM video system
1-4 channels audio (optional)
1-4 channels asynchoronus data (optional)
1 port 10/100Mbps ethernet (optional)
Power supply and other parameter status indication, which can monitor the operation condition of system
Support no-damage regenerative trunk of video
Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required .
Industry-grade of operating temperature from -40 to 85 degree , which is applied to the different working environment
Hot-swap supportted
Stand-alone type or card-type installed in 19inch 2U or 4U rack-mount chassis.


Technical Specification

Video interface
 Video  4channels
 Video bandwidth  8 MHz
Automatic  compatible video system   PAL,NTSC,SECAM
Video input / output impedance 75 ohm(unbalance)
Video signal-to-noise ratio more than 67dB
Differential gain (10%-90%APL) DG
Differential phase （10%-90%APL） DP
Video connector BNC
Fiber-optic Specification F/O connector: FC/ST/SC   TX ：Power:-8 ~ -3dBm   Sensitivity :less than-35dBm RX：Power:-15 ~ -8dBm   Sensitivity :less than-24dBm                             Transmission Distance :20KM (single mode)   Operating Wavelength: TX1310/RX1550nm(Transmitter);TX1550/RX1310nm(Receiver)
Specification of custom-made options
Data Connector: Terminal Blocks Encoded type : RS485 / RS422 / RS232 / Manchester         Data rate : 0 - 400Kbps BER:  ≤10-9
Audio Connector: Terminal Blocks Audio input / output impedance :600Ω(Balance/ unbalance)   Audio input / output voltage :2Vp-p ( typical value) Audio input / output level :0dBm ( typical value)   Video bandwidth:10HZ~12KHZ Audio digital encoded bandwidth :24bit Audio signal-to-noise ratio: S/N≥95dB  (weighted)
Telephone Connector: RJ11 Bandwidth :8KHZ  Features：Support call-showing function ;support H-F Operating mode : Point to point hotline mode / FXS-FXO
Ethernet Connector: RJ45 Support mode : Half duplex or Full duplex Standards：IEEE802.3 Data rate : 10M / 100Mbps Bandwidth: 25M
Dimensions :19.2(L)x17.3(W)x2.8(H) cm
Operating Voltage: DC5V (we will offer external power supply from AC96-240V to DC5V for each unit )
Operating Temperature: -40 to +85 degree
Storing Temperature :  -55 to +85 degree
Humidity: 0 to 95% non-condensing
MTBF : more than 105 hours
Warranty : 3 years


Application :

Intelligent Transportation System

Connection of Sub-network for Surveillance Center

Highway video monitoring and control system

Industrial Closed Circuit Television Surveillance

Security monitoring and control system

TV program switching channel transmission


4channel video ove fiber multiplexer Order




    • Qustion: How many kinds interface does the video fiber mux device support?

    Answer: The video fiber mux can support Video/Audio/ethernet/data/pots interface,Audio/ethernet/data/pots are optional interface,customer need to notice our company when place order.

    Qustion: Are the ransmitter and receiver on one same device??

    Answer: No,it's sperated. The transmitters is a device connecting with your camera,the receiver is another device connectiong to monitor.

    Qustion:Do the optical video ransmitter and the optical video receiver need to work together?

    Answer: yes,the transmitter and the receiver need work together,they need to work as pair.



Ordering information

BD-DV4P0000ST 4channel video fiber multiplexer,transmitter,single mode,20Km,dual fiber or WDM for option,AC220V
BD-DV4P000SR 4channel video fiber multiplexer,receiver,single mode,20Km,dual fiber or WDM for option,AC220V
BD-DV4P4P00ST 4channel video fiber multiplexer,transmitter,4channels audio,single mode,20Km,dual fiber or WDM for option,AC220V
BD-DV4P4P00SR 4channel video fiber multiplexer,receiver,4channels audio,single mode,20Km,dual fiber or WDM for option,AC220V


Product Tags: video over fiber , Video fiber multiplexer , fiber multiplexer
