HomePlug AV Solution All-In-One EOC Master With ONU and Optical Receiver

Name: HomePlug AV Solution All-In-One EOC Master With ONU and Optical Receiver
Brand: Baudcom
SKU: 158740678

HomePlug AV Solution All-In-One EOC Master With ONU and Optical Receiver thumbnail-1

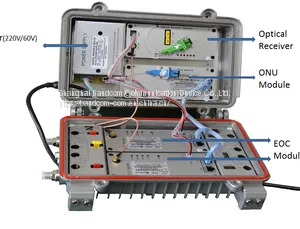

HomePlug AV Solution All-In-One EOC Master With ONU and Optical Receiver thumbnail-2

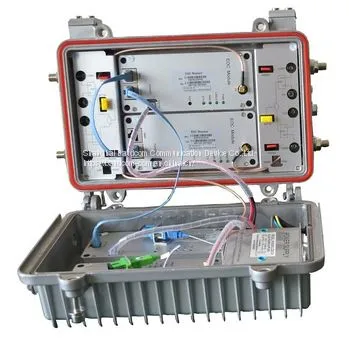

HomePlug AV Solution All-In-One EOC Master With ONU and Optical Receiver photo-1

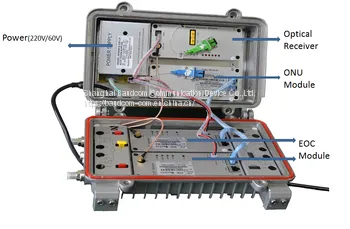

HomePlug AV Solution All-In-One EOC Master With ONU and Optical Receiver photo-2

US$ 220 - 280 MOQ: 1 Unit

Key Specifications

Get Latest Price

Brand Name:

Baudcom

Place of Origin:

China

Model Number:

BD-2EOC-OR-ONU

Contact Supplier Request Quote Chat Now

Shanghai Baudcom Communication Device Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Baudcom

Place of Origin China

Model Number BD-2EOC-OR-ONU

Product Overview

BD-2EOC-OR-ONU is an all-in-one EOC Master with EOC master module, ONU module and OR module.

We can use one BD-2EOC-OR-ONU to instead of three type products, HFC optical node, EPON ONU and EOC mater. It can reduce the number of active node in the system, decreasing failure rate and saving a space. It is the best choice of CATV, Internet and VOD for the operator.

The EOC Master Module in the BD-2EOC-OR-ONU is based the Qualcomm AR7410 chipset solution，with high anti jamming capability OFDM technology. The 7.5-65MHz low frequency band is used for EOC signals. Built in high isolation filter as CATV RF and EOC signal mixer, the EOC signal and CATV signal in 87~862MHz can run on one cable without interference. The EOC Master can provide high speed data service. The PHY Layer speed is 600Mbps, the MAC Layer throughput is up to 320Mpbs.

The OR module in the BD-2EOC-OR-ONU can provide an HFC optical input and one RF output. The CATV signal will convert from optical to RF signal here. The OR module is a high quality optical receiver product. It received the optical signal from the TX of HFC network, and the signal processed by the PIN, Amplifier, EQ and AGC to a stable RF output. The output level will be up to 108dBuv.

The ONU module in the BD-2EOC-OR-ONU designed with one EPON port, two standard 10/100/1000 Base-TX Ethernet ports. It provides the key functionality of 802.3ah EPON ONU. By using the EPON technology, the ONU module provides a high-speed data channel through a single optical fiber with a rate of 1.25 Gbit/s on bi-direction. In addition, it offers the QOS, flexible bandwidth allocated to provide quality high-speed data service, voice service, and video service.

Function Features

n High integration with two EOC Master modules, one ONU module and one OR module

n Aluminum alloy die casting shaping, good heat dissipation

n Outdoor waterproof designed, 60V/220V power supply optional

n 7.5-65Mhz frequency for EOC signals., no influence on CATV Service

n Support data encryption

n Support broadcast storm limitation

n Support data packet statistics

n Support auto-update and auto-configuration

n Support the optical power monitor

n Flexible bandwidth allocation function

n Support various QOS service level

n EMS network management based on SNMP

n Provide a rich fault alarm function, easy to fault diagnosis

n Support software online upgrade

n OR support AGC

n CATV RF output up to 108dBuv

n ONU module compliant with IEEE802.3ah and CTC2.1standards.

n ONU module provides tow auto-negotiation GE ports

n ONU module support interconnection with the third-party OLT

n Support the EMS network based on SNMP

Specification

Item	Parameters	Specification
Specification of EOC Module
Interface and LED Indicator	RF Port	One TV (CATV Signal) Output, metric F-Female One CABLE (Mixed Signal) Input, metric F-Female
	Ethernet Port	Two 10/100/1000Mauto-negotiation, RJ45
	LED Indicator	1 for Power Supply Status 1 CABLE Link Status indicator 2 for Ethernet Ports Status
Performance Parameters	RF Parameters	Frequency Band :7.5-65MHz RF Output Level:110±5dBuv@ output of module Receive sensitivity: 45dBuv Return Loss:>16dB Output Resistance:75Ω
	Transmission	PHY Layer:600Mbps Throughput on MAC Layer:320Mbps
	Modulation Mode	OFDM~ 2690~carriers 4096,1024,256,64,16,8~QAM, QPSK, BPSK, ROBO
	Working Mode	TDMA/CSMA
	Encryption Mode	AES-128
Standard	EOC Standard	IEEE P1901(Draft) HomePlug AV
Standard	Ethernet Standard	IEEE 802.3, IEEE 802.3x, IEEE 802.3u IEEE802.1P, IEEE802.1Q
Software	Network Management	WEB, CLI, SNMP
Software	Software Features	VLAN, QOS, Bandwidth Control, Broadcast storm limitation
Specification of OR
Optical Specifications	Wavelength	1100～1600 nm
	Optical Power Input Range	-8～+2 dBm
	Recommend optical Power Input Range	-6～0 dBm
	Optical Input Return Loss	≥45 dB
RF Specifications	Bandwidth	45～870 MHz
	Flatness	≤±0.75 dB
	Stability of RF output under Operating Temperature	≤5 dB
	Nominal RF Output Level	108 dBuV
	Impedance	75 Ohm
	Return Loss	≥14 dB
	CNR	≥51 dB
	CSO	≥60 dBc
	CTB	≥65 dBc
	Power consumption
Optical and temperature AGC	Stability of RF output under optical AGC	≤±1 dB
Optical and temperature AGC	AGC Scope	-6～0dBm
LED Indicator	Indicator Description	RUN: module operating RF: RF signal PWR：Power is coming up OPTH: Optical power is higher OPTM: Optical power is nominal OPTL: Optical power is lower
Specification of ONU Module
Interface	PON Interface	One EPON port Meet 1000BASE-PX20 standard Up to 1.25Gbps Upstream and Down-stream SC Connector Single-mode fiber, single-strand Maximum split ratio 1:64 Up to 20Km distance @ 1:32
Interface	Ethernet Interface	Two 10/100/1000Mauto-negotiation Full/Half-Duplex RJ45 type connector , Auto MDI/MDI-X Up to 100m distance
Performance Parameters	PON Optical Parameters	Wavelength: Upsteam1310nm, Downstream 1490nm Transmitter Optical Power: -1～4dBm Optical Receive Sensitivity: -27dBm Saturation Optical Power：-3dBm
	Data Transfer Parameters	Data Transfer Rate: Upstream 900Mbps；Downstream 950Mbps LAN Interface: 1000Mbps Packet Loss： latency：
	Business Capability	Layer 2 wire speed switching Support VLAN TAG/UNTAG，VLANconversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast
Network Management	Management Mode	Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management
Network Management	Function	Status monitor, Configuration management, Alarm management, Log management
Indicator	Indicator Description	PWR: Power up or down LOS: Optical Link Status PON：ONU registered LNK: Link Status
Physical Features
Physical Features	Power supply & Consumption	Power Supply：220V/60V optional Consumption：
	Size & Net weight	Dimension：290×220×120mm Weight：3.7kg
	Environment Attribute	Working Temperature：－10～65℃ Storage Temperature：-40～85℃ Working humidity：10%～90%non-condensing Storage humidity：10%～90% non-condensing

Typical Application

2 CATV

2 Internet Access

2 VOD

2 IPTV

2 Camera monitor system

Application Illustration

Figure 1 BD-2EOC-OR-ONU Application Illustration

Ordering information

BD-4EOC-OR-ONU /220VAC	Built-in one ONU Module, one OR module and two 74 series chipset EOC Modules；One EPON uplink port, one CATV optical input, four TV+data mixed output port. Outdoor waterproof designed. 220VAC power supply.
BD-4EOC-OR-ONU /60VAC	Built-in one ONU Module, one OR module and two 74 series chipset EOC Modules；One EPON uplink port, one CATV optical input, four TV+data mixed output port. Outdoor waterproof designed.60VAC power supply.
BD-2EOC-OR-ONU /220VAC	Built-in one ONU Module, one OR module and two 74 series chipset EOC Modules；One EPON uplink port, one CATV optical input, two TV+data mixed output port. Outdoor waterproof designed. 220VAC power supply.
BD-2EOC-OR-ONU /60VAC	Built-in one ONU Module, one OR module and two 74 series chipset EOC Modules；One EPON uplink port, one CATV optical input, two TV+data mixed output port. Outdoor waterproof designed.60VAC power supply.
