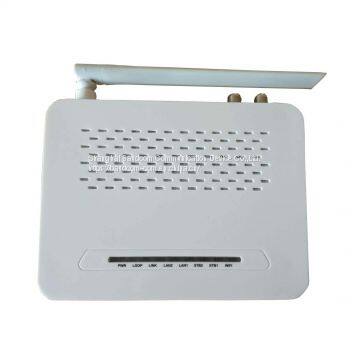

Ethernet over Coax converter EOC Slave Unit with Wifi

BD-EOC-S4-W is the EOC slave based on HomePlug AV solution for Ethernet access over coax. It works together with EOC master which is based on HomePlug AV solution as well to construct a two-layer Ethernet data transmission channel on CATV coax cable, provide the Ethernet access service based on the existing coax cable networking.

The built-in wifi module based on the single chip AR9331 which integrates an 802.11n 1x1 MAC/BB/ radio with internal PA and LNA. It supports 802.11n operations up to 72 Mbps for 20 MHz and 150 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates.

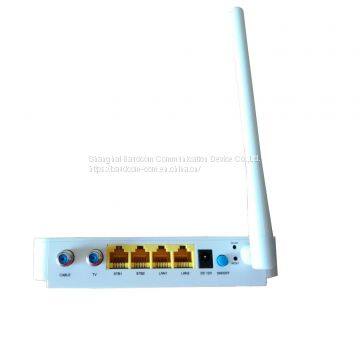

BD-EOC-S4-W is slave with 4 Ethernet ports with Wifi.

• Low-frequency modulated EOC slave is adopted INT7400 chipset, HomePlug AV solution

• Work at low frequency between 7.5MHz and 65MHz, without affecting the existing CATV

• Physical layer speed: 500Mbps; Max MAC layer throughout is 300Mbps

• Support 4 Ethernet ports with 10/100Mbps auto-negotiation function

• Support VLAN configuration based on slave unit or slave’s Ethernet ports

• Support broadcast storm control

• Support WEB, CLI and SNMP management

•  MIPS 24K processor operating at up to 400 Mhz.

•  DD2 memory up to 512 Mb.

•  SPI NOR Flash memory up to 64Mb.

•  4LAN ports and 1 WAN port

•  SPI support.

l        Network access

l        VOD(video on demand service)

l        IPTV

l        Video Surveillance

Application

Question: Does the EOC Question1: slave device supporting PPOE ?static IP and dhcp etc

Answer: Yes,the EOC slave with wifi device support these router function (PPPOE,static IP and DHCP etc).

             The EOC slave without the wifi,can not support the router functions.

Question2: Does the Wifi EOC slave unit support telnet management? If so,what is the user name and password?

Answer: BAUDCOM wifi EOC slave can be managed by TELNET,

             the management account information as below:

             IP address: 192.168.1.1

             user name: root

             password: root626

              Note: The EOC slave device version information

Question3: Does the EOC SLAVE modem support SIP protocol for VOIP? Do you have an RJ11 port for telephone?

Answer: BAUDCOM EOC slave modem can transparently transmit the network data with SIP protocol.

             We can not provide the EOC slave modem with RJ11 telephone port.

Question4: EOC Slave with wifi diplex is 42/54 Mhz?

Answer: Our EOC Slave with wifi diplex can be 42/54 Mhz. There are three options for customer choose: 30/47-42/54、65/87.
