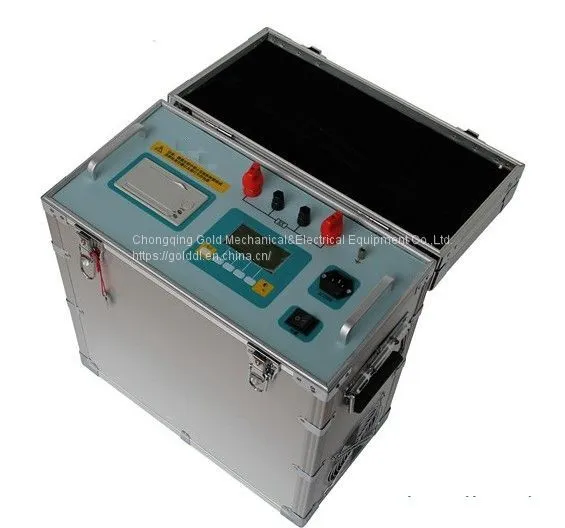

GDZC Transformer DC Winding Resistance Tester

Name: GDZC Transformer DC Winding Resistance Tester
Brand: Gold
SKU: 158720768
Availability: InStock

US$ 2000 - 5000 MOQ: 1 Set

Key Specifications

Brand Name:

Gold

Place of Origin:

China

Model Number:

GDZC

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing

Delivery Detail:

7 days

Brand Name Gold

Place of Origin China

Model Number GDZC

Power Electronic

Usage Other, Transformer Winding Resistance Test

Introduction:

GDZC Transformer DC winding resistance tester uses Constant current source to measure the DC resistance of inductance circuit such as power transformer coil, current transformer coil and so on.

GDZC Transformer DC winding resistance tester has functions of self test, data processing, discharge rapidly, result print and so on.

Functions:

A new switching power supply technology makes output current more stable and power larger than before.

The tester has an advanced signal process circuit which has a good performance at anti-noise. Test data is precise and stable.

The tester has protections to prevent circuit over-current, circuit over-voltage, wrong operation, discharge and so on.

Specifications:

Model	GDZC-2	GDZC-10	GDZC-20	GDZC-40	GDZC-100	GDZC-20S
Test current	2A	10A	20A	40A	25A,50A, 100A	Single phase: 1A, 5A, 10A, 20A, 40A Three phase: 1A, 5A, 10A, 20A
Measuring range	1μΩ~ 4.5kohm	1μΩ~ 20ohm	1μΩ~ 10ohm	1μΩ~ 10ohm	50μΩ-200mΩ(100A) 100μΩ-400 mΩ(50A) 200μΩ-800 mΩ(25A)	Single phase: 10mΩ~20Ω(1A) 1 mΩ~4Ω(5A) 1 mΩ~2Ω(10A) 1 mΩ~1Ω(20A) 1 mΩ~0.5Ω(40A) Three-phase: 10 mΩ~6Ω (1A,each phase) 1 mΩ~1Ω (5A,each phase ) 1 mΩ~0.6Ω (10A,each phase ) 1 mΩ~0.3Ω (20A,each phase )
Resolution	1μΩ
Max. Error	0.2%RDG+2D
Voltage output	20V
Resolution	1μΩ
Power supply	AC220V±10%% 50Hz/60Hz
Working environment	-10℃-+40℃ RH≤85%
