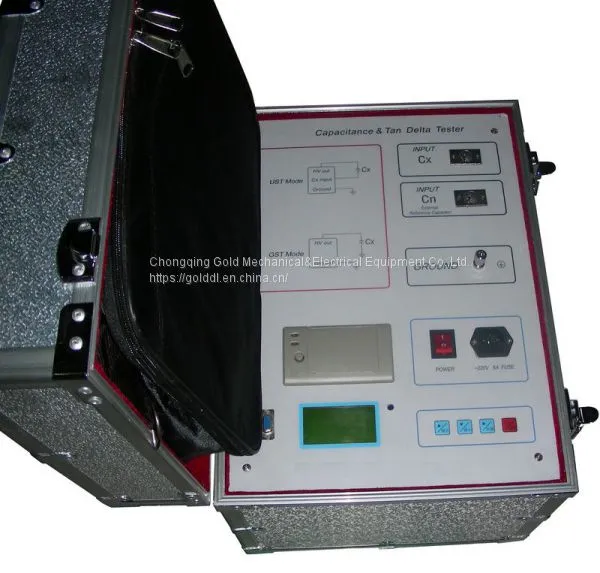

GDGS Transformer Tan Delta and Power Factor Tester

Name: GDGS Transformer Tan Delta and Power Factor Tester
Brand: Gold
SKU: 158720886

US$ 3200 - 6000 MOQ: 1 Set

Key Specifications

Brand Name:

Gold

Place of Origin:

China

Model Number:

GDGS

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing

Delivery Detail:

7 days

Brand Name Gold

Place of Origin China

Model Number GDGS

Power Electronic

Usage Other, Transformer Tangent Delta Test

Introduction:

GDGS Newly Design Transformer Power Loss, Capacitor Value Tester is used to measure dissipation factor (PF) in heavy interference site such as power plants or power substations.

The Transformer Power Loss & Transformer Capacitor Value Tester can also be used in laboratory for high accurate test.

GDGS Newly Design Transformer Power Loss, Capacitor Value Tester is whole in one designed: including precision digital bridge, power unit, reference capacitor (CN), step-up transformer and other electronic circuits.

It’s also using frequency shift technology, FFT (Fast Fourier Transform algorithm) and digital filtering. When started, it’s running automatically and then outputs the results on LCD display and prints the results automatically.

Specifications:

No.	Item	GDGS Newly Design Transformer Power Loss, Capacitor Value Tester
1	Accuracy	Cx±(reading×1%+1pF) PF±(reading×1%+0.00040)
2	Interference Ratio	Interference current is no more than 2 times of test current
3	Capacitance Range	Internal HV: 3pF~60000pF / 10kV,60pF~1uF/0.5kV External HV 3pF~0.3uF/10kV Resolution 0.0001pF, 4 digital
4	PF Range	No limit, Resolution 0.001%, C/L/R specimen test
5	Input current range	10μA~1A
6	Internal HV	0.5~10kV / 200mA (max)
7	HV Adjust	Rise or fall smoothly
8	HV Accuracy	±(reading×1%+10V) Resolving 1V
9	Frequency select	60Hz single point, locked 55Hz/65Hz double point, locked
10	Test Time	40S typical
11	Power Supply	180V~270V 50Hz/60Hz auto
12	Operating Temperature	0℃~60℃
13	Storage Temperature	-20℃~60℃
14	Humidity
