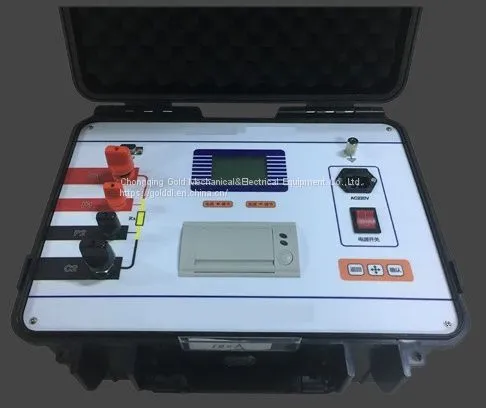

Help CenterGDHL-III High-voltage Switchgear and Cable Contact Resistance Tester
Related Products
-
GDHL-200 Contact Resistance Tester With DC 200A 100A Current OutputUS$ 1 - 6MOQ: 1 Set -
GDHL-400 Contact Resistance Tester With DC 400A Current OutputUS$ 1 - 6MOQ: 1 Set
-
GDJB-PC 3 Phase Secondary Injection Relay System Test SetUS$ 1 - 6MOQ: 1 Set
-
GDHL-600 Contact Resistance Tester With DC 600A 400A 300A 200A 100A Current OutputUS$ 2 - 6MOQ: 1 Set
-
GDRG-H Automatic High Voltage Inductance Capacitance Tester MeterUS$ 1 - 6MOQ: 1 Set
* Contact resistance tester output DC 100A current to test the contact resistance of circuit breaker or high current
cable contacts.
* It is designed according to IEC62271.
* The main application of the tester is measurement of circuit breaker contact resistance.
* All the test results of the tester could be print by the micro-printer which is integrated in the tester.
* Also all the test results saved in the tester could be upload to PC computer and then convert to WORD document.
* Rapid test
* Result print
* Upload data to PC
Technical index:
1. Measuring range: 0-1999.9 μΩ Resolution:0.1 μΩ
2. Measuring current: DC 100A
3. Measuring precision:0.5 %RGD+0.05%FS
4. Display mode: LCD
5. Save no more than 100 groups of data
6. RS232 computer interface
7. Rated power supply:AC220V
8. Size: 340 × 280 × 210mm3
9. Environment temperature:-10 ℃~+40 ℃ Relative humidity
