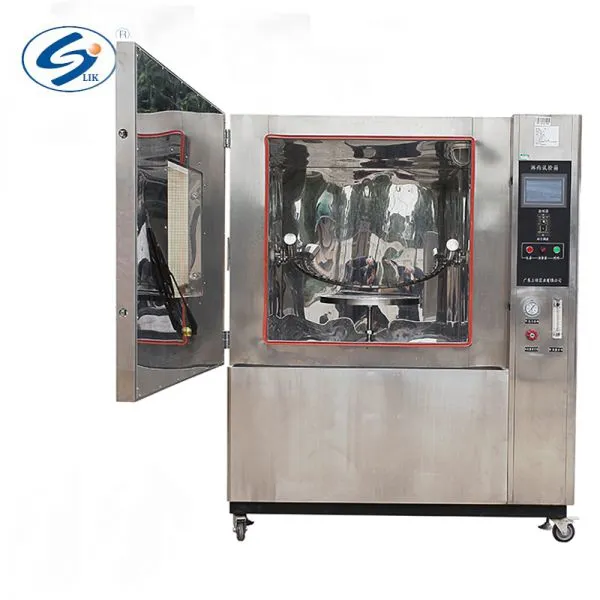

IPX5 X6 Waterproof Performance Test Rain Spray Test Chamber
is applied to test the shell's waterproof effect of electronics, automobile and communication,using rainfall simulation to test the product's waterproof performance and assess the product's waterproof performance's loss classification. It's suitable for electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle parts and other products. It provides the basis to improve the performance of the products.
Water spray test equipment us designed according to the standard of GB/T4942, GB2423.38, DIN40050, JISD0203, IEC60529, GB2423, GB7000.1(IPX3,IPX4), GB4208-1993,(shell protection grade).
Chamber Design Features(Automatic Climatic IP Grade Waterproof Rain Spray Test Machine)
1. Touch screen controller; Transparent window is convenient to observe specimen during testing.
2. Oscillating tubes are stainless steel.
3. Stainless steel nozzles is removable for cleaning or replacing.
4. Nozzles can be turned on or off to adjust the arc of the spray from the tube.
5. Water supply unit includes water filter, pump, flow meter, electromagnetic valve and switch valve.
6. Two available flow rates to meet major standards.
7. Oscillating tube angle can be adjusted freely from 40 ° to almost 360 °
8. Stainless steel specimen support with easy adjustment for height and with two specimen bases.

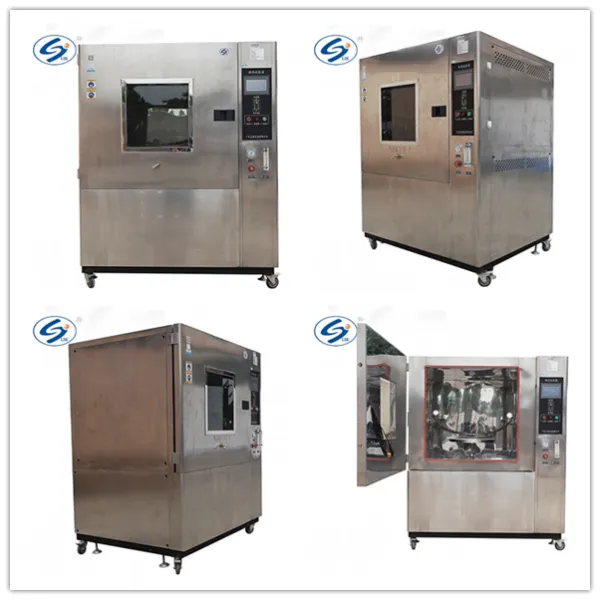

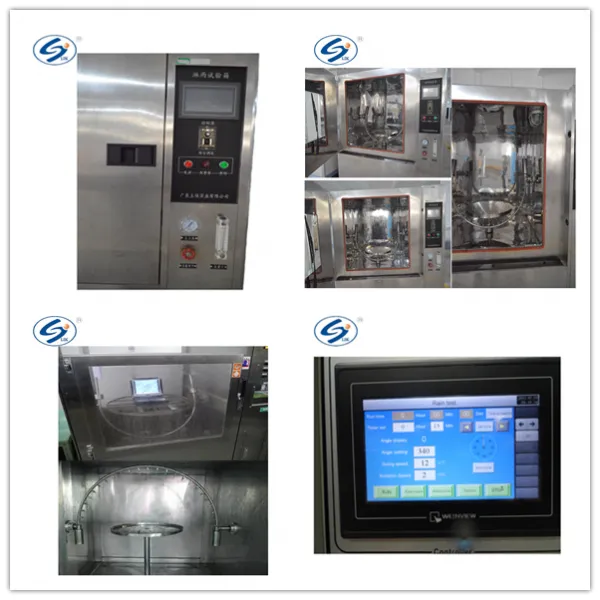

Product Image(Automatic Climatic IP Grade Waterproof Rain Spray Test Machine)
Specifications and technical parameters
| Model No | LY/N-1000 | JP34 |
| Volume | 1000L | 1000L |
| Internal dimension (mm) | W1000 * H1000 * D1000 | W1000 * H1000 * D1000 |
| External dimension (mm) | W1600 * H1850 * D1150 | W1600 * H1850 * D1150 |
| IP Grade | IPX3, IPX4 or other IP1~8 | |
| Sample shelf size | φ400mm | |
| Specimen rotative speed | 4~17rpm (Adjustable) | |
| Spray orifice diameter | φ0.8mm | |
| inside swing pipe diameter | φ15mm | |
| Test chamber material | High quality 304 stainless steel mesh plate | |
| Swing ring radius | R375 *2 | |
| Pendulum Swing tube range | ±45°,±60°,±90°,±160°(theory number) | |
| Spray volume | 0.6L/min *4 | |
| Swing speed | 60°/s adjustable | |
| Water spray hole spacing | 50mm | |
| Swing pipe material | High quality 304 stainless steel seamless pipe | |
| Electrical controller | LCD display touch controller | |
| Testing time | 0-999S adjustable | |
| Power supply | AC 1Ψ 220V;3Ψ380V 60/50Hz | |
| Customization service | OEM and Non-standard or special requirements are all welcome. | |
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
LIK main test equipments:
Environmental test chambers, temperature (humidity) chamber,Thermal shock chamber, High low temperature test chamber, Salt spray test chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in constant temperature and humidity test chamber,Vacuum oven, Drying Cabinet, electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber, Powe battery crush and puncture test machine, Battery shock impact test machine, Battery Squeeze test machine, battery short circuit tester, Battery burning jet test equiopment, Battery needling test machine, etc.
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. We accept on-site service If customers require.
1. Pre-service
24 Hours online service for your consult.
Help choose right model, and a series of service, person, advise. Main web site: /
1) More than 10 years manufacturer experience in test equipments and with strong research and development team.
2) Acceptable customization for all kinds of specical specification products.
3) We value the inquiry sent to us timely, ensure quick and competitive offer.
4) We put your order into our tight production schedule,ensure your punctual delivery time.
5) We are a sales team, with more than 10 years experience, more professional and reliable.
6) Our professional team could provide the best suggestion as long as you tell us what kind of test you need to do and the required specification.
7) Welcome to view our factory at any moment .
2. After sale service
1) We deal with your complains within 24 hours and solution provide within 3 working days.
2) Trainning how to instal the machine, training how to use the machine. We would offer operation video and English operation muanual. We can provide video-con.
3) 1 year warranty service and all life maintenancee; our engineers could go to your place for better service necessarily.
4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be dedicated to provide high quality service and products for you.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Good Packaging: All goods are covered with film and air bubble film before put them into the strong wooden case.
FAQ
Why choose us?
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.Hot selling lab electronic temperature humidity cabinet/Environmental climate test chamber also can be customized.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information about the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate.
Secondly, we had detailed operation manual with chamber , any problems you can find and solve in it.
Thirdly, some of customized chambers we should to install and teach your team to operate .
How to Contact Us?
Please Send your inquiry Details in the below Or send to my mail below directly. We promise reply your inquiry on time.
