Production description
Customized Ipx1~Ipx8 Water-Proof Rain Spray Test Room is applied to test the shell's waterproof effect of electronics, automobile and communication,using rainfall simulation to test the product's waterproof performance and assess the product's waterproof performance's loss classification. It's suitable for electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle parts and other products. It provides the basis to improve the performance of the products.
1. Name: Intergrative rain spray equipment |
2. Model no. ZHLX-C |
3. Constitution: The lab is maily consist of room body, swing pipe tester, dripping,tester, jawp tester, inundating tester. |

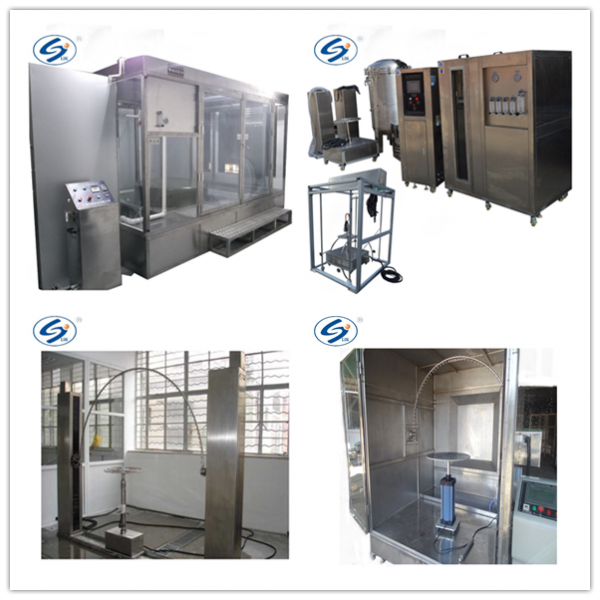

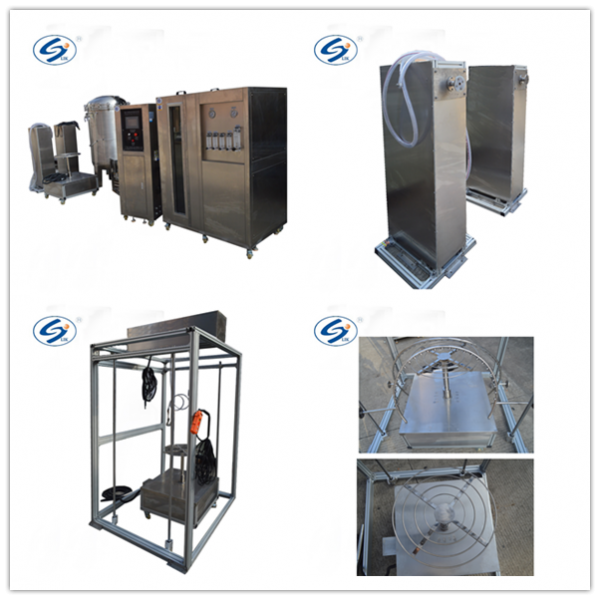

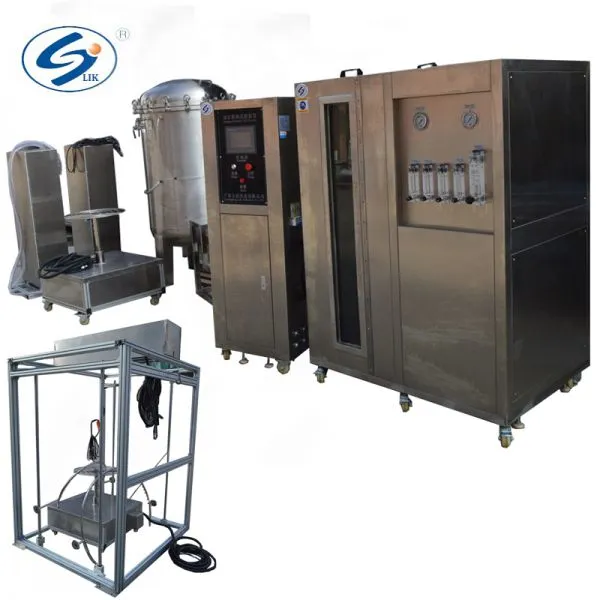

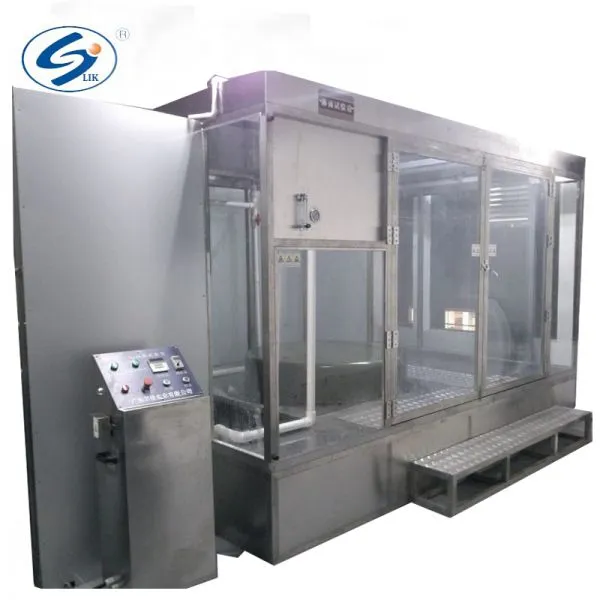

Product Image(Simulate Enviroment IP Grade Rain Spray Waterproof Test Equipment)
Specifications and technical parameters
| 1. Dimesion of working room: 4000*6000*2600mm(D*W*H), it can be made as requirement. |
| 2. Door dimention: Swing-hinged door 1600*2000mm(W*H), the color is sea-blue(PB05). |

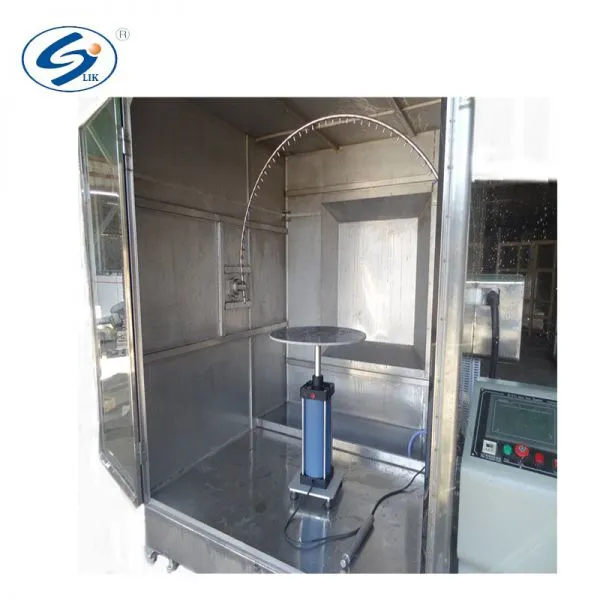

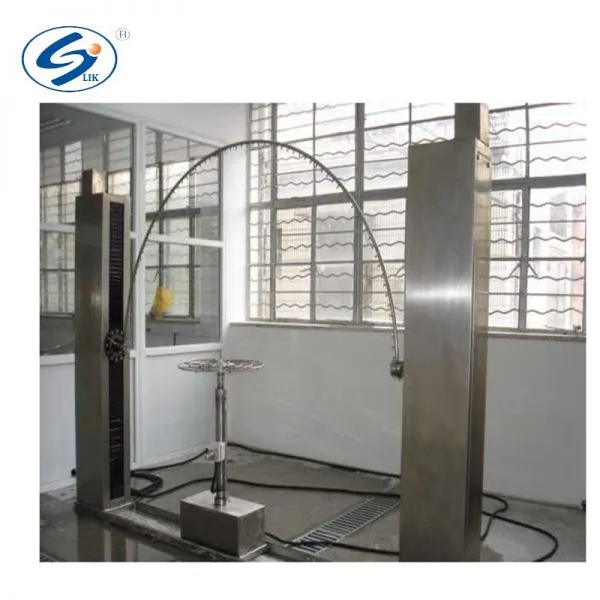

| 3. Swing pipe rain rester LK8101(IPX3,IPX4) |
| 3.1 Spray orifice diameter: φ0.8mm, φ0.4mm; space between 50mm |
| 3.2 swing pipe inside diameter: φ15mm |
| 3.3 Pendulum Swing tube range: ±45°,±60°,±90°,±180°(Continuous adjustable) |
| 3.4 Swing ring radius: R1000mm, R800mm, R400mm(adjustable) |
| 3.5 Swing pipe speed: non-polar timing |
| 3.6 Swing pipe height: 800mm higher off the ground |
| 3.7 Rain hydraulic pressure: 80-400Kpa(adjustable) |
| 3.8 Amount of nozzle: it depends on international standard and swing pipe radius |
| 3.9 Spiracle flow rate: 0.067-0.074L/min/hole(adjustbale) |
| 3.10 Test-bed dimension: φ400mm rotating floor(lifting), bearing capacity is 200kg |
| 3.11 Electric installation: four-way output defend from wire intertwist device,electrify sample 5-15V |
| 3.12 Test-bed rotate speed: 5-17r/min non-polar timing |
| 3.13 Test-bed angle: 0°- 15°(adjustable) |
| 3.14 Spray pump water: clean soft running water |
| 4. Dripping tester LK8102(IPX1 IPX2) |
| 4.1 Dripping amount: IPX1:1mm/min(+0.5mm/min, -0mm/min); IPX2:1mm/min(+0.5mm/min, -0mm/min) |
| 4.2 Dripping aperture: φ0.4mm |
| 4.3 holes pitch: 20mm |
| 4.4 Dripping range: 1000*1000mm |
| 4.5 Test-bed angle ajusting: 0°- 45° |
| 4.6 Dripping chamber adjustable: 200mm-2000mm |
| 4.7 Test-bed dimenstion: 500*500mm |
| 4.8 Test-bed rotating speed: 1-5r/min |
| 5. Handheld spray device (IPX5, IPX6) |
| 5.1 IPX5 rainproof experimental nozzle |
| 1) Nozzle inside diameter: 6.3mm |
| 2) Water discharge: 10-20L/min(adjustable) |
| 3) Control valve with flow rate, flowmeter, water discharge and hydraulic pressure are ajustable; shower water can be recycled |
| 4) The mainstream central part: the circle that diamter is about 40mm which 2.5m far away from nozzle |
| 5) Equipped with time relay, testing time is presetted within 0-99h |
| 6) The distance from nozzle to test pieces shell: 2.5-3m |
| 5.2 IPX5 rainproof experimental nozzle |
| 1) Nozzle inside diameter: 12.5mm |
| 2) Water discharge: 20-120L/min(adjustable) |
| 3) Control valve with flow rate, flowmeter, water discharge and hydraulic pressure are ajustable; shower water can be recycled |
| 4) The mainstream central part: the circle that diamter is about 120mm which 2.5m far away from nozzle |
| 5) Water spraying time of shell surface per square meter: at least 3min |
| 6) Equipped with time relay, testing time is presetted within 0-99h |
| 7) The distance from nozzle to test pieces shell: 2.5-3m |
| 6. Inundating tester LK8106(IPX7, IPX8) |
| Major structure is made of stainless steel |
| 6.1 Inundate chamber inside dimension is φ2.2*1.2m |
| 6.2 Provide test sample bracket |
| 6.3 Pressuring way: air-powered |
| 6.4 Pressure display way: digital display |
| 6.5 Pressure: 5 atmospheric pressures(approximate pressure of 50m deep of water) |
| 6.6 Water temperature and sample shell temperature all can display |
| 6.7 Can meet IPX7 and IPX8's requirement of quick/long-term inundation as EN60529/IEC529 and GB4208 standard rule, the whole instrument is processed by stainless steel, the wall thickness is 8mm; gas compressor do not need connect to air supply; inundating depth can be operated on panel directly, the water enters into container automatically; it provides water treatment tank(drain automatically) and liquid-meter to display the height of water in container, the constant experimental time can be set and it has prompt facility; display water temperature in container and surface temperature of test sample(out of control). |
| 6.8 Supply power: three phase five wire, AC380V 2.5KW |
| 6.9 Open cover mode: air-lifted with manual security lock catch |
