1 ton mini beam mounted wall bracket jib cranes price

Wall mounted jib crane is a new generation of the hoist equipment developed to meet the requirement

of modernized production. It doesn’t require modification of the building structure in which it is being

installed and it doesn’t take up much space, but it allows transporting goods on a three- dimensional

plane.

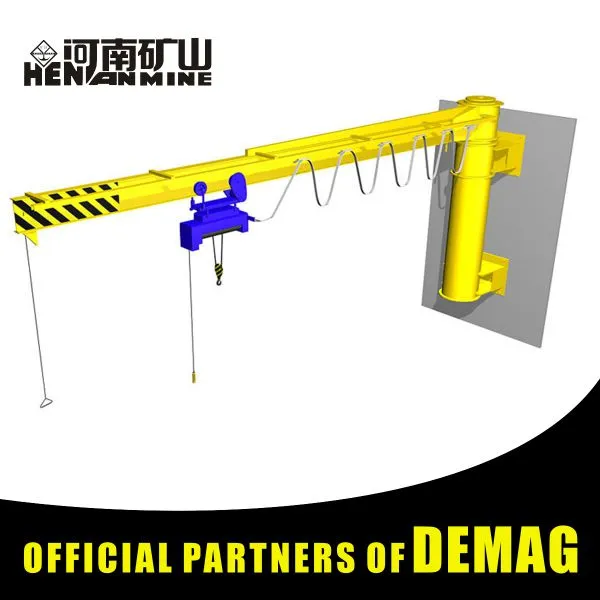

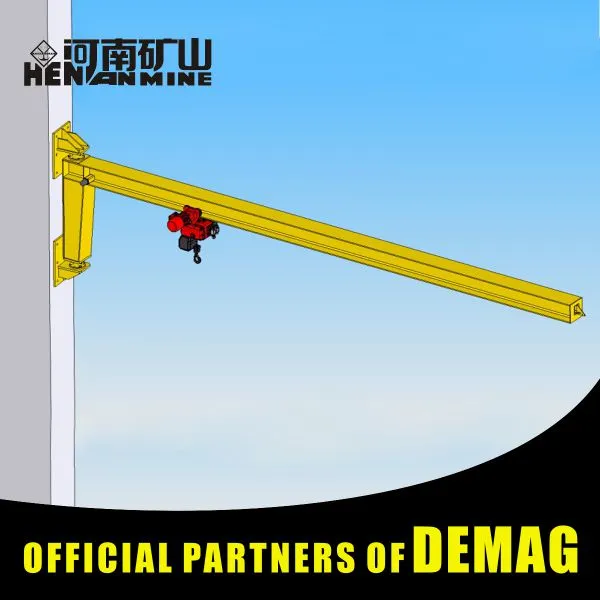

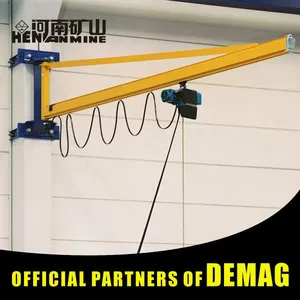

This type of wall running  jib crane is mounted horizontally on the wall and instead of a vertical shaft has a RCC column bracket mounting. The hoist mechanism is similar to the floor mounted type, but without a vertical boom. The RCC column bracket allows a max rotation of 200 degree but covers the area near the bracket mounting without obstruction a floor level.

1.A new type material lifting device, designed based on mural jib crane.

2.Its rail is installed on concrete post in workshop, it can move on longitudinal direction, at the same time, the electric hoist can achieve the horizontal direction off the jib and vertical lifting direction.

3.This crane greatly expand and make full use of the work space, which is more convenient to use.

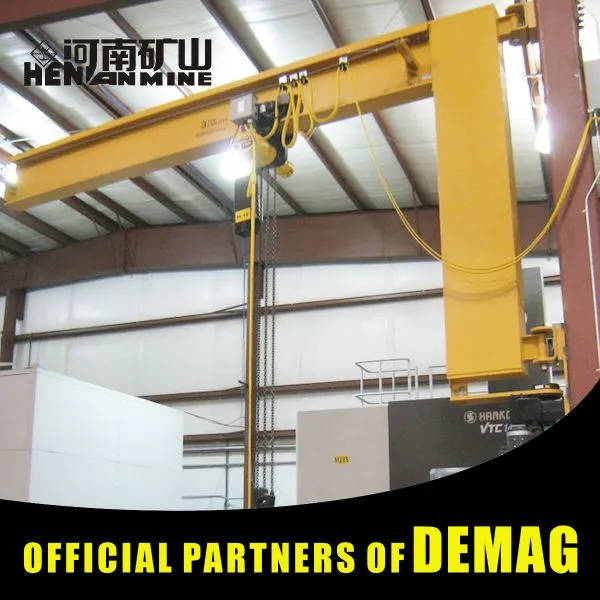

4.Used in workshop or storage, where is wide and high. If it is nesr to wall, it is applaied to work in high frequency.

5.The crane is usually used matching with bridge crane on ceiling. It is placed near to wall working in a cuboid space, mainly lift light objects.

Under the cantilever, it equipped with rack, hoist running dolly output gear and rack driven of

occlusion, this could ensure the stability of the electric hoist.The hoist make shuttle running along the

way of I-shaped beam, slewing of cantilever is finished by the motor to drive the reducer device.The

cantilever is made of hollow steel structure, it is has a light weight, wide span, large lifting capacity,

it is also more economic and durable.The jib crane which adopt special engineer plastic wheels with

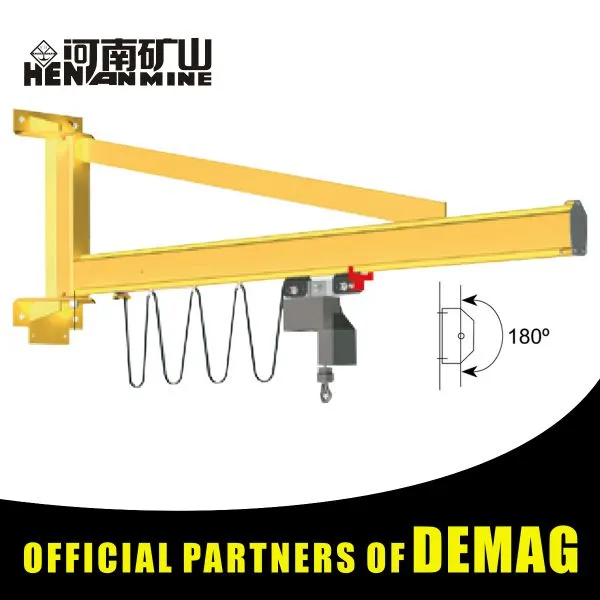

rotary bear could reduce the abrasion, running more smooth .It could install in any position with

ranges of rotation 180°, 270°, 345°, 360°.

 > Loading capacity: 0.5~20ton ;

 > Lifting height:3~10m ;

 > Jib length:2~10m;

 > Slewing degree:0~360°;

 > Power supply:220~440V,50/60HZ,three phase or customized design.
