Company Introduce
Kuangshan Crane Group
Ever since 1984, Kuangshan has been and continues to be a professional crane manufacturer. And from 2002
year, up to now, Kuangshan Group has been a crane industry leader, especially in cranes for steel industry.
Our focus is to provide our customers a cost effective solution that will meet their material handing needs.
Year Established: 1984 Total Asset:690miliion RMB
Engineer: 185 Employee: 2360
Equipment:1200sets Area:600000 square meters
Product Introduce
T SERIES -3-Way Adjustable gantries, fabricated from heavy gauge square mechanical tubing, offer the greatest under
I-beam height and range of adjustability. Maximum flexibility of span, height, and tread adjustment allows use on uneven
flooring. Adjustability allows travel through doorways and aisles, under mezzanines, or other overhead obstructions.
Motorized option available.
All steel construction capacities to 10 Ton. -maximum overall heights to 24'-3" -standard spans to 40 ft.
Steel construction with aluminum I-beam capacities to 3 Ton. -maximum overall heights to 22'-6" -standard spans to 15 ft.
All aluminum construction capacities to 3 Ton. -maximum overall heights to 21' -11" -standard spans to 15 ft.
A SERIES gantries, fabricated from heavy gauge rectangular mechanical tubing, provide a lower cost and lighter weight
lifting alternative to the T Series for applications requiring movement through doorways and under obstructions. Design
does not require brace legs, allowing greater clear span. Adjustable span optional. Motorized option not available.
All steel construction, adjustable and fixed height capacities to 10 ton. -maximum under beam heights to 16 ft.
-standard spans to 40 ft.
All aluminum construction, adjustable height/span capacities to 2 ton. -maximum under beam heights to 12'-2"
-standard spans to 15 ft.

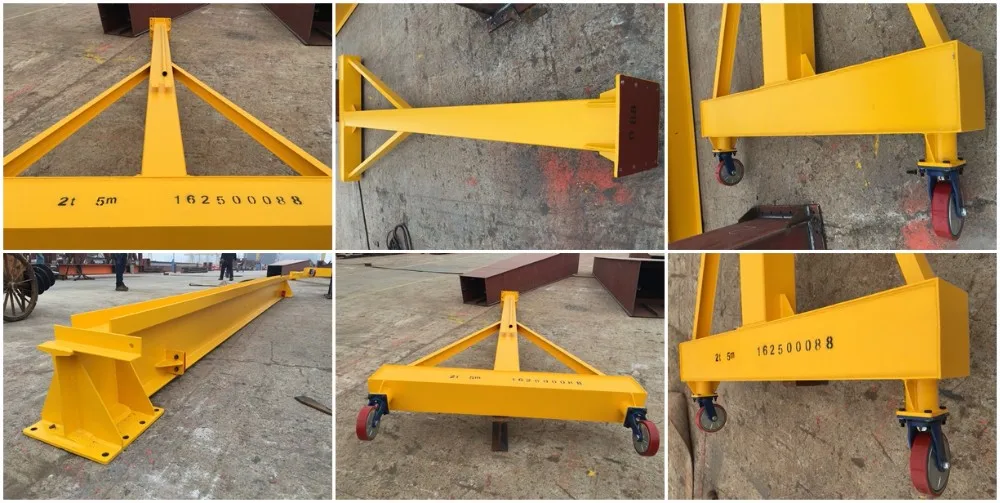

>> Scale photos about mini gantry crane

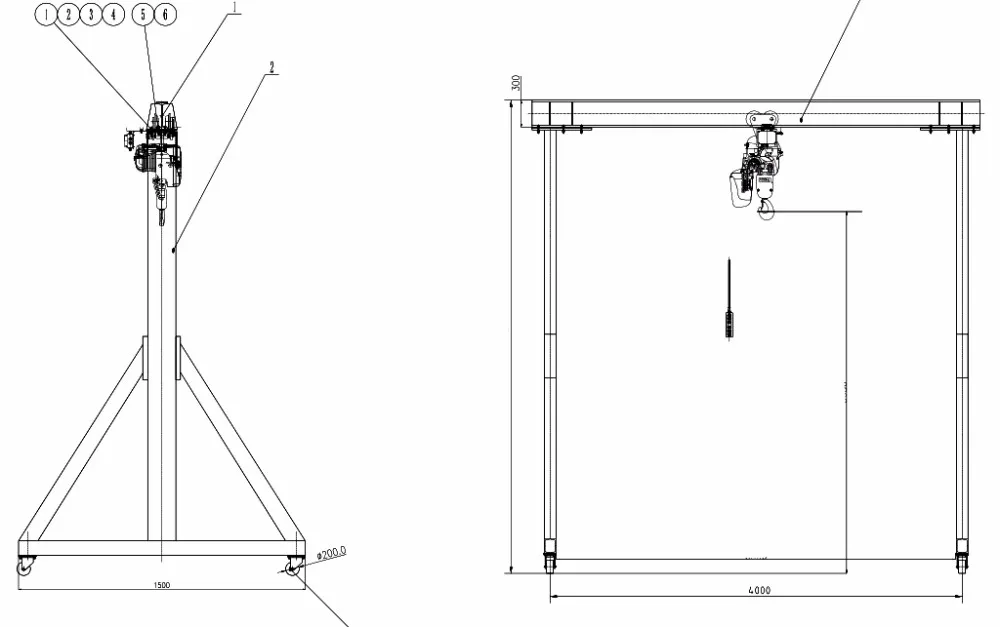

>> Parameter of mini gantry crane
Item |
Simple gantry crane |
Simple gantry crane |
Simple gantry crane |
Simple gantry crane |
Simple gantry crane |
Simple gantry crane |
Capacity |
0.5 |
1 |
2 |
3 |
5 |
10 |
|
Span (meters) |
2-12 (as your require) |
|||||
|
Height (meter) |
1-10 (as your require) |
|||||
Wheel |
4 |
4 |
4 |
4 |
4 |
4 |
Lifting equipment(hoist) |
Manual or Electric or Chain |
Manual or Electric or Chain |
Manual or Electric or Chain hoist |
Manual or Electric or Chain hoist |
Manual or Electric or Chain hoist |
Manual or Electric or Chain hoist |
Certificate |
CE and BV |
CE and BV
|
CE and BV
|
CE and BV
|
CE and BV
|
CE and BV |

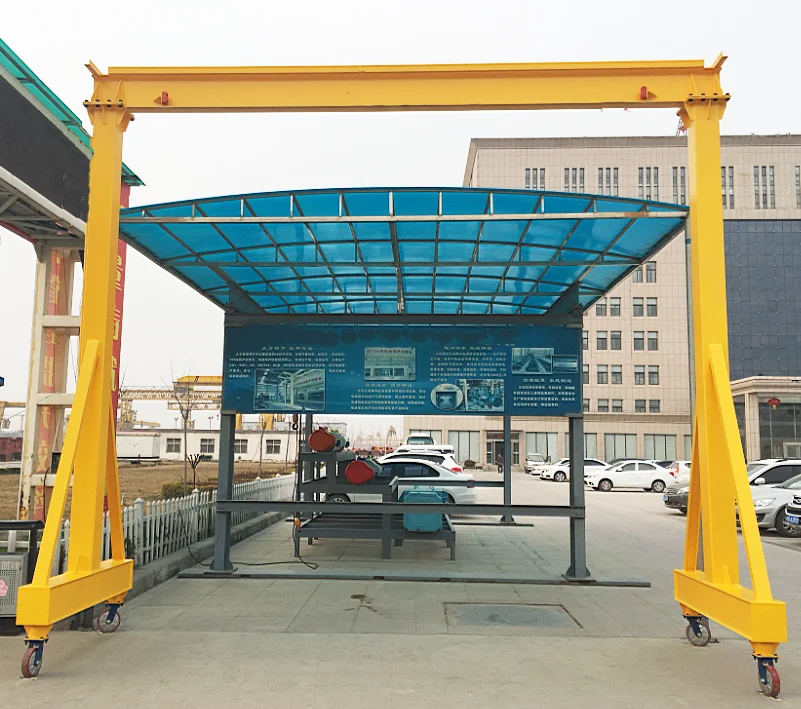

>>Finished mini gantry crane
Why Chose Us
>> Our philosophy:
Quality makes brand , honest weaves the future.We hope Kuangtyan make contribution to economy
indusry‘s taking off. Hold hands of Kuangyuan being friends for ever.We will sincerely seek for
common progress and resplendence cooperatiing with all friends and establish brilliance.
>> Certificate
>> Professional
Technology Dept.
Kuangshan Crane have more than 100 engineer to design the drawing, we can supply CAD and 3D
drawing for your workshop.
Quality inspection Dept.
As for the quality, no need to worry. Our inspection team deal with it strictly. They sign together when
finished the inspection.
>>Oversea Reputation
>> Good Service
FAQ
In order to make a very quick offer and saving your time, it’s better to fill the information below. Copy
and send us the information together with the inquiry.It’s better to send us a drawing,sketch or show us
data and then our engineer can work out a full suitable solution just for you.
Load capacity |
( ) |
Tips:5t 10t 16t 20t 30t 40t 20t up to 550t |
Span |
( ) |
Tips:6m-40m |
Lift height |
( ) |
|
voltage |
( ) |
Tips: 380V 50Hz AC 3-phase or please note |
Duty class |
( ) |
Tips:A5 A3 if you don;t know, please note |
Hours per day |
( ) |
|
Control way |
( ) |
Tips: remote control, cabin control or pendent control |
Lift speed |
( ) |
Tips:single speed or double speed |
Cross &long travel speed |
( ) |
|
Rail supply needed |
( ) |
Tips:if yes please note the length |
Power supply needed |
( ) |
Tips:if yes please note the length |
Your nearest port |
( ) |
