| LANRI - Xinxiang Kuangshan Crane Co.,LTD (BV Certified Company) |
|
- Ever since 1984, Lanri has been and continues to be a professonal overhead crane manufacturer. Since 2003 year, we have new brand KUANGYUAN, then Kuangshan Group is produced. - Up to now, lanri has been an Overhead Crane Industry Leader, expecially in overhead cranes for steel industry. - Our focus is to provide our customers a cost effective solution that will meet their material handling needs. - We provide whole series of overhead bridge cranes with capacity from 0.5 ton to 550 ton. - Our products not only for overhead crane, we still have transfer cart, gantry crane, jib crane, hoist and other crane parts. |
| Brief introduction of heavy-duty gantry crane ,1000 ton crane | |
|
| |
|
|
|

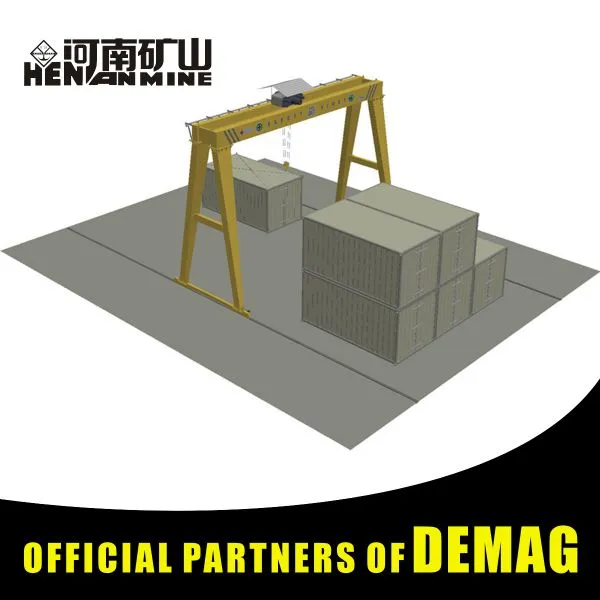

Single girder gantry Crane 1.It is a track travelling small and medium-sized crane. 2.This product is a regular crane widely used at open ground warehouses to load, unload or grab materials. 3.It usually used together with CD1, MD1 model electric hoist. 4.Capacity: 1-50ton Span:10-18m 5.Working Temperature: -20°C-40°C 6.Operational Method: Ground Control ; Room Control |

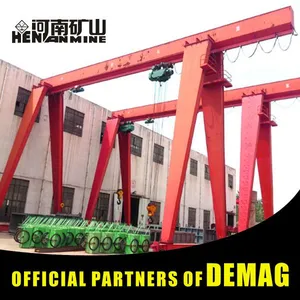

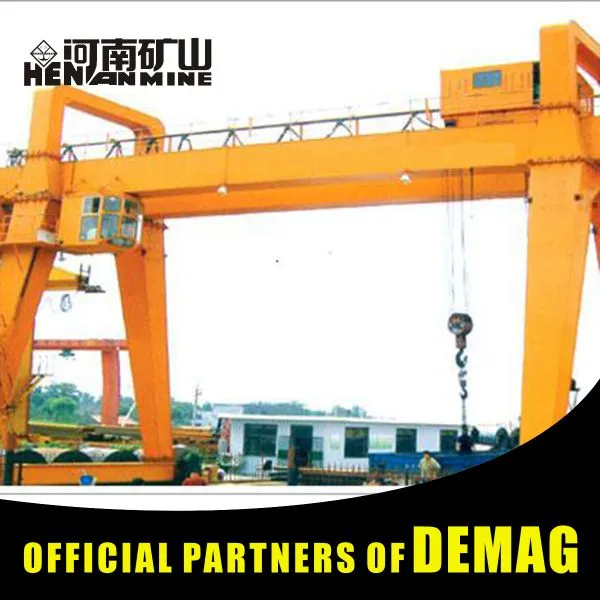

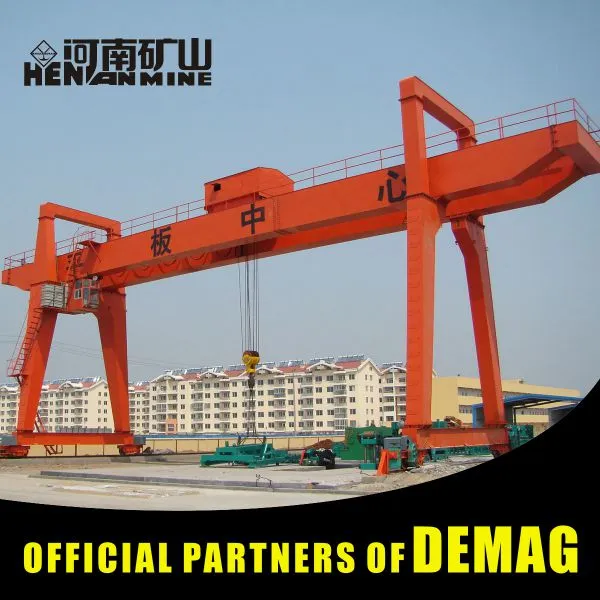

Double Girder Gantry Crane 1.A Model Double Girder Gantry Crane applied outside warehouse or railway sideways to do common lifting and unloading works. 2.It is composed of bridge, support legs, crane traveling organ, winch trolley,electric equipment, strong lifting winch, the frame adopts box-type welding machanism. 3. Operational methods:cabin or remote control. 4. Power is supplied by cable or slide wire. 5. We offer different capacity according to your requirement. |
|
|
|
Trussed Type Gantry Crane 1. This kind of crane is mainly applied to port, the freight yard, windy areas and other outwork places for material handling. 2. The Double Girder adopts truss-type welded structure, this result to small windward side.(The wind-pressure is less than 125Pa.) 3. Electric equipment for the trolley adopts soft conductive cable, large carts adopt sliding contact line, and cable reel-type is available. |
Semi Gantry Crane 1.This is a kind of middle or small size crane, equipped with CD, MD type hoist, traveling on rail. 2.Widely used in outdoor of warehouse, material yard to load and unload cargo. 3.Capacity: 2-10t Span: 10-20m 4.Optional Method: Cabin Control; Remote Control; Pendent line with push botton |
| Production of heavy-duty gantry crane ,1000 ton crane |
|
|
| Delivery of heavy-duty gantry crane ,1000 ton crane |
|
|
| Some details of heavy-duty gantry crane ,1000 ton crane | |
Control method |
Remote control or pendent line with press button. |
| Design and construction rules | All the standards which is required for the crane is the Chinese standard |
| Painting |
Primer and finishing paint Color: according to your demand. Average thickness: about 100 microns |
| Power supply | 380V/50Hz or as per client's requirement |
| Motors | Nanjing Zongchang (Number 1 in China.) |
| Speed | Single speed/Dual speed |
| Manufacturing standard | All crane design and manufacturing is according to Chinese Standard but customized products are avialable. |
Technical featrues |
1.Welded construction of structural steel 2.Lugs for securing loads 3.Four steel wheels 4.Capacity signs both sides 5.Cable pendant controlled 6.Brakes- Steel wheels 7.Steel deck |
Safety features |
1. Limit switch. 2. Overload stop device for hoisting. 3. Long bearing buffer for crane traveling. 4. Power faliure backup. |
| Payment term | 40% payment in advance and the balance paid defore delivery by TT. |
| Shipping port | Qingdao port by Containers; Tianjin port by bulk cargo. |
| Warranty | 12 months |

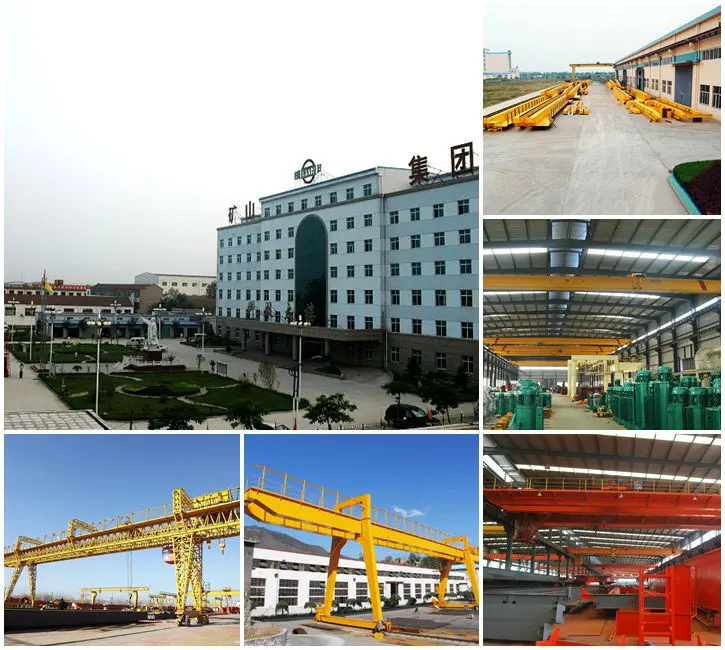

| An overview of our factory - heavy-duty gantry crane ,1000 ton crane |
|

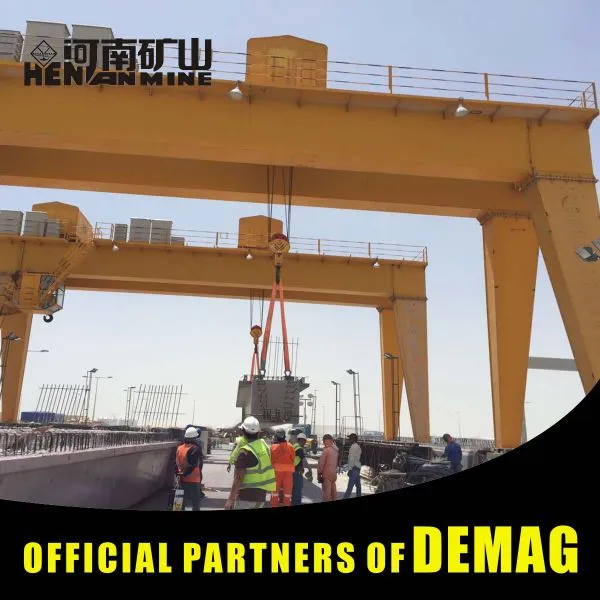

| Customer visit for heavy-duty gantry crane ,1000 ton crane |
|
| Hot-selling in these countries and regions |
|
Our cranes are hot-selling in: United Kingdom, India, Negeria, Pakistan, Egypt, Bangladesh, Philippines, Australia, Malaysia, Singapore, Malta, Turkmenistan, Saudi Arabia, Peru, Ethiopia, Malta, Albania, South Africa and so on, and get well feedback and many new orders again from them. If you want to have any details of these projects, please TELL US! |
| Service we can provide |
|
1. Payment terms is flexible. 2. Design the crane according to your technical request. 3. Delivery on time 4. Our engineer can arriving to the installation site to help fixing the crane for you. 5. Diversity products. 6. Warranty: 12 months. |
| Please never hesitate to contact us! |
|
We Don't Just Sell heavy-duty gantry crane ,1000 ton crane, We Build Solutions. If the information above about heavy-duty gantry crane ,1000 ton crane does not meets with your requirment, Please never hesitate to contact us, we will be pleased to submit our offer together with our solution. Ms. Jas yangDepartment: Foreign TradeJob Title: ManagerTelephone: 86-373-3872232Mobile Phone: 86-18238776721Address: Changnao.Industrial District.Xinxiang,Henan province,ChinaZip: 453000 |
