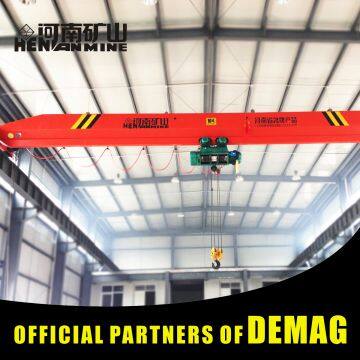

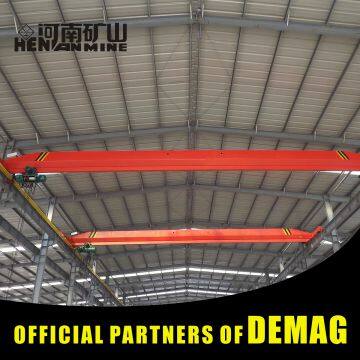

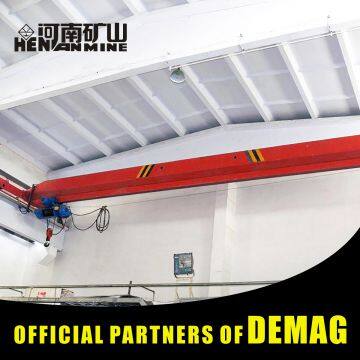

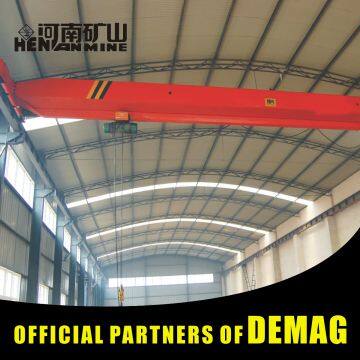

10ton 20ton 30ton Single girder Electric traveling Overhead Crane Specification With hoist
Company Introduce
Kuangshan Crane Group
|
DEVELOPMENT HISTORY: > 1984 established. > 2002 be a joint-stock industrial enterprise. > 2008 been top best factory in China crane filed. > 2010 engage in exporting and servicing to the world. > 2016, the new type double girder crane produce line finished |
ADVANTAGES: > 68 million square meters. > 2700 employees; 180 engineer; > 2.3 billion RMB annual sales ; > 1300 units of all kinds of processing equipment. > CE, BV, GOST. |
| |
Product Introduce
Overhead cranes sometimes also called bridge cranes and eot crane, which are cranes with a hoist or
winch traveling along the bridge beween parallel runways.
Specification Advantage
1.Capacity range:5/3.2-250 ton. 1.Reasonable structure
2.Span length:10.5-32m 2.Favorable performance
3.Lifting height:7.5-22.5m 3.Smooth starting and stopping
4.Working Duty:A3 -A7 4.Safe and reliable traveling
5. Working temperature:-25~40°C 5.Low noise,Saves electricity
>> Classification of Single girder Overhead Crane
|
European type Single Girder Overhead Crane
The design strictly carries out the relevant standards of FEM. It employs motor of hoisting mechanism and reducer imported from Germany. ABB and SEW brand; Control mode: remote control/control panel with pendant line |
|
LD Single Girder Overhead Crane
Single Girder Overhead Cranes utilized for medium to heavy fabrication.. These overhead cranes are ideally suited to low buildings, where a high hook lift height is required.The top running configuration is best used in cases where the end user has issues with headroom. The most space efficient configuration is the double girder, top running crane system. |
|
|
LX Single Girder Underslung Crane Single Girder Underslung Cranes, usually suspended from roof trusses, are mainly utilized inside pumping stations and small workshops, for maintenance purposes. The cranes are compact in design and construction, making them ideal for low buildings where maximum hook height is required. |
|
HD Single Girder Overhead Crane HD type single girder hoist crane adopt with low-head room hoist which can realize the hook lift height maxmumized. It is more suitable for the workshop with low proof but high demand of lift height.
|
|
|
LDP Single Girder Overhead Crane
LDP Overhead Cranes utilized for medium to heavy fabrication. It adopt with hoist trolley on side of main beam which can realize the hook lift height maxmumized. It is more suitable for the workshop with low proof but high demand of lift height. Control mode: remote control/control panel with pendant line |
|
LB Single Girder Overhead Crane
LB type explosion-proof electricsingle-girdercrane is based on the LD type crane, designed and manufactured according to GB3836.1-2000 and GB3836.2-2000. This crane has the characteristics of reasonable structure,strong rigidity, beautiful shape, strong explosion-proof ability. |
|
>>Parameters of Overhead Crane
| Capacity(T)1,2,3,5,1016,20Span (M)7.5-31.5Crane travel mechanismTravel speed (m/min)20304560752030456075Reducer ratio58.7838.3826.3619.3715.8858.7838.3826.3619.3715.88MotorModelZDY21-4ZDY21-4ZDY122-4ZDY131S-4ZDY112L1-4Power(kw)2*0.82*1.51.5*22.2*22.2*2Rotation(m/min)13801380Crane lift and hoist travelElectric hoist modelCD1 MD1CD1 MD1 HCLift speed (m/min)8, 0.8/83.5, 3.5/0.35Lift height (m)6,9,12,18,24,3012,18,24,30Travel speed (m/min)20 (30)20 (30)MotorTaper squirrel cage typeTaper squirrel cage typeWork dutyA3-A5Power supply380v/220v/415v/50hz/60hz/3phWheel diameter270mm370mmWidth of rail37-70mm37-70mm |
Service
Quality inspection Dept:
Installation service team:
Company Culture:
FAQ
In order to make a very quick offer and saving your time, it’s better to fill the information below. Copy
and send us the information together with the inquiry.It’s better to send us a drawing,sketch or show us
data and then our engineer can work out a full suitable solution just for you.
Load capacity |
( ) |
Tips:1t 2t 3t 5t 10t 16t 20t 30t |
Span |
( ) |
Tips:7.5m-40m |
Lift height |
( ) |
Distance from Hook center to ground |
voltage |
( ) |
Tips: 380V 50Hz AC 3-phase or please note |
Duty class |
( ) |
Tips:please note the average load |
Hours per day |
( ) |
operation frequency each hours, how many hours per day. |
Control way |
( ) |
Tips: remote control, cabin control or pendent control |
Lift speed |
( ) |
Tips:single speed or double speed |
Cross &long travel speed |
( ) |
If any special demand, please note. |
Rail supply needed |
( ) |
Tips:if yes please note the length |
Power supply needed |
( ) |
|
Your nearest port |
( ) |
