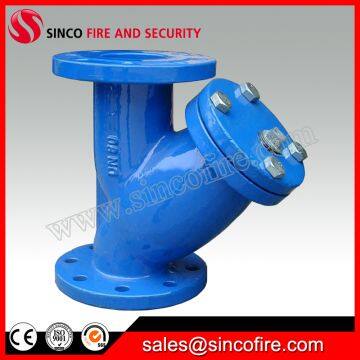

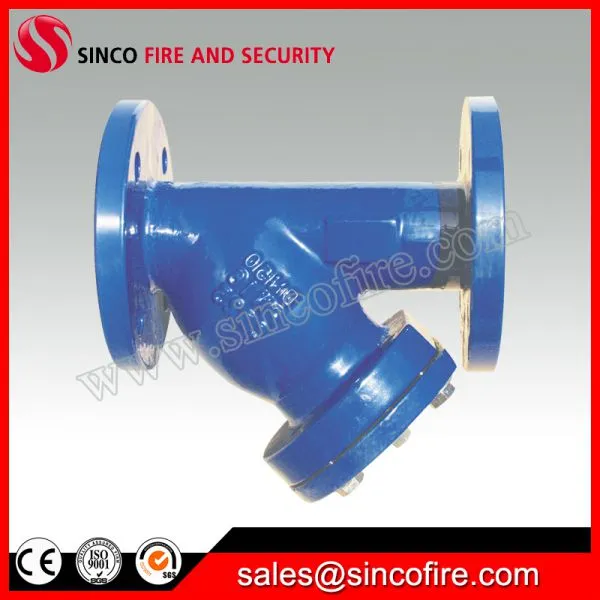

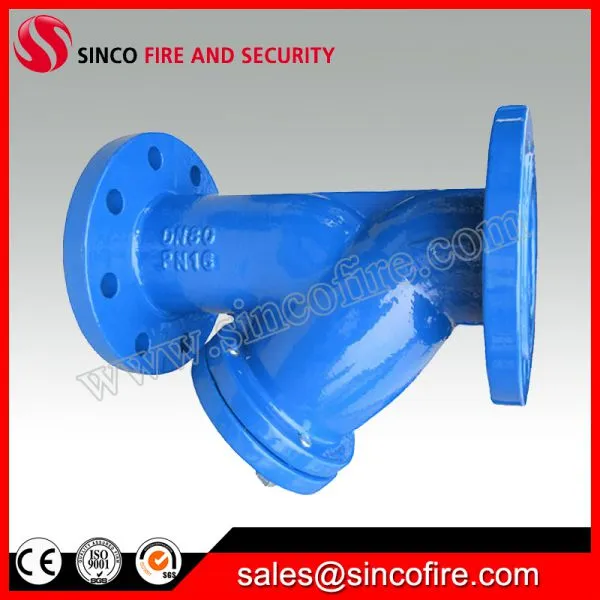

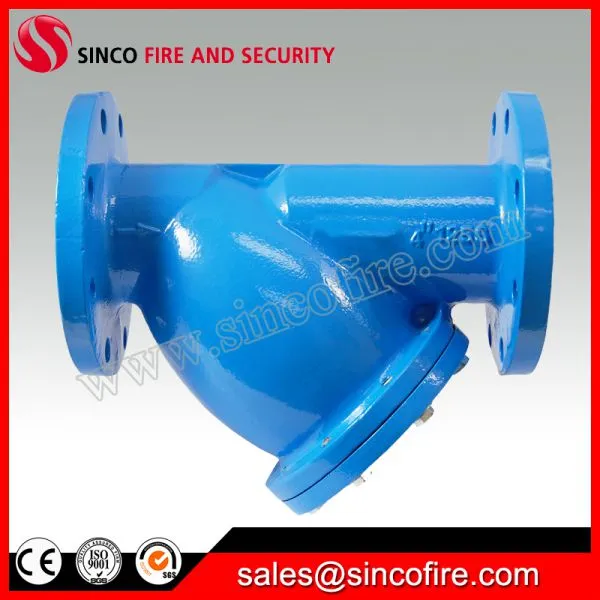

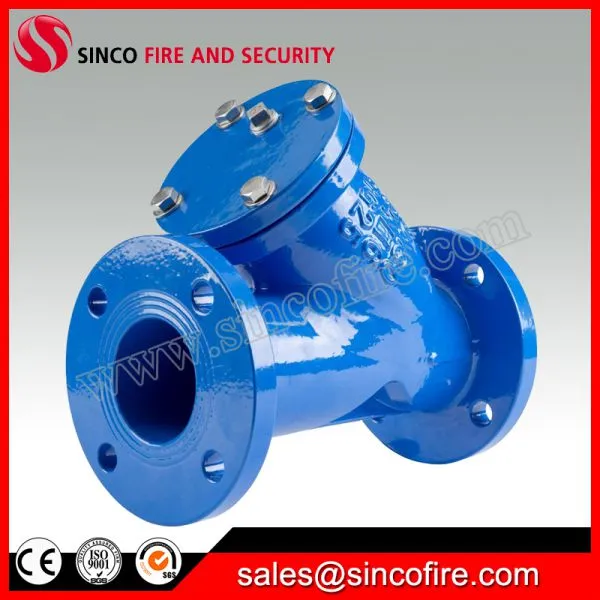

Cast Iron Flanged End Y Strainer
Introduction
The flange Cast Iron Y Strainer is applicable to water, oil and gas. It's function is to allow scale and dirt residue to be caught, preventing the chance of damage to equipment. The strainer allows full flow of liquid with only minimal pressure loss. The removable cover allows easy access to the basket for cleaning.It is epoxy coating, for water conduits in pressure. Face to face dimensions according F6. Stainless steel filter with round pierced screen, pierces diameter 1,5 mm for strainers up to DN 150, and 2 mm for strainers up to DN 300. Removable filtering element, threaded drain. Maximum working temperature
Specification
Materials of major parts | ||
No. |
Part |
material |
1 |
Body |
Ductile Iron |
2 |
Filter |
SS304 |
3 |
Bonnet |
Ductile Iron |
4 |
O-Ring |
NBR |
5 |
Bolt |
SS304 |
6 |
Coating |
Epoxy Resin |
Dimensions(mm) | |||||||
DN |
L |
D |
f |
s |
c |
b |
n-d |
50 |
203 |
165 |
125 |
99 |
19 |
3 |
4-19 |
65 |
216 |
185 |
145 |
118 |
19 |
3 |
4-19 |
80 |
241 |
200 |
160 |
132 |
19 |
3 |
8-19 |
100 |
292 |
220 |
180 |
156 |
19 |
3 |
8-19 |
125 |
330 |
250 |
210 |
184 |
19 |
3 |
8-19 |
150 |
356 |
285 |
240 |
211 |
19 |
3 |
8-19 |
200 |
495 |
340 |
295 |
266 |
20 |
3 |
12-23 |
250 |
622 |
400 |
355 |
319 |
22 |
3 |
12-28 |
300 |
698 |
455 |
410 |
370 |
24.5 |
4 |
12-28 |
