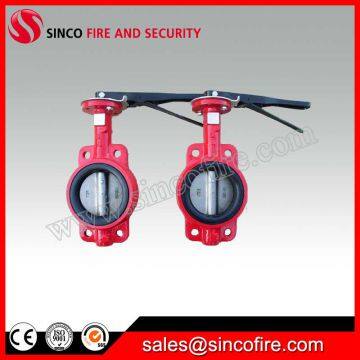

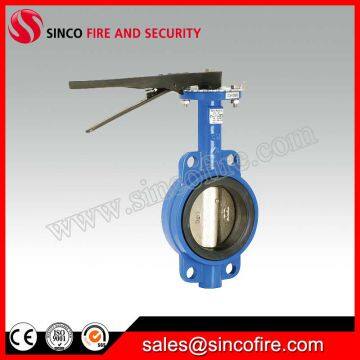

Help CenterCast Iron Gear Wafer Butterfly Valve for Fire Fighting
Related Products
-
Fire Control Valve Signal Butterfly ValveUS$ 10.7 - 39.9MOQ: 1 Piece -
Pn16 Handle Manual Wafer Center Butterfly Valve D71X-16US$ 10.7 - 39.9MOQ: 1 Piece
-
Ductile Iron Water Butterfly ValvesUS$ 10.7 - 39.9MOQ: 1 Piece
-
Butterfly Valve With Tamper SwitchUS$ 10.7 - 39.9MOQ: 1 Piece
-
Female Thread Brass Gate ValveUS$ 1 - 25.3MOQ: 1 Piece
Cast Iron Non-Rising Resilient Seat Gate Valve
Introduction
A butterfly valve is a valve which can be used for isolating or regulating flow. The closing mechanism takes the form of a disk. Operation is similar to that of a ball valve, which allows for quick shut off. Butterfly valves are generally favored because they are lower in cost to other valve designs as well as being lighter in weight, meaning less support is required. The disc is positioned in the center of the pipe, passing through the disc is a rod connected to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, therefore a pressure drop is always induced in the flow, regardless of valve position.
l Materials of major parts
No. |
Part |
Material |
1 |
Body |
Ductile Iron |
2 |
Disc |
DI/SS/Bronze |
3 |
Stem |
SS304/316 |
4 |
O-ring |
EPDM/NBR/VITON |
5 |
Seat |
EPDM/PTFE |
6 |
Bushing |
PTFE/Bronzel |
7 |
Hand Wheel |
Cast Iron |
8 |
Worm Gear |
Cast Iron |
l Dimensioons(mm)
DN |
L |
L1 |
Φ |
H1 |
H2 |
H3 |
N |
Φ3 |
40 |
42 |
250 |
110 |
66.5 |
142 |
26 |
4 |
18 |
50 |
42.3 |
260 |
125 |
66.5 |
142 |
26 |
4 |
18 |
65 |
43.3 |
280 |
145 |
74.1 |
151 |
26 |
4 |
18 |
80 |
45.6 |
284 |
160 |
94 |
161 |
26 |
4 |
18 |
100 |
50.6 |
357 |
180 |
110.8 |
181 |
26 |
4 |
18 |
125 |
53.6 |
374 |
210 |
128.8 |
191 |
28 |
4 |
18 |
150 |
54.4 |
374 |
240 |
140.5 |
204 |
28 |
4 |
22 |
200 |
59.6 |
384 |
295 |
172.5 |
238 |
29 |
4 |
22 |
250 |
65.4 |
384 |
350 |
206.2 |
268 |
29 |
4 |
22/26 |
300 |
75 |
537 |
400 |
235.8 |
306 |
30 |
4 |
22/26 |
