Product Details
Brand Name: | more super hard | Place of Origin: | China | Model Number: | 1 |
Size: | all | Type: | Other, tools |
Product Description

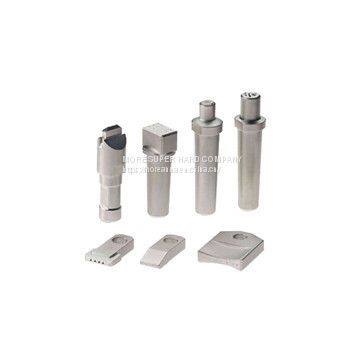

chisel diamond dressing tools
diamond dresser for grinding wheel
diamond dressers are used for dressing specific forms into conventional abrasive grinding wheels require longer tool life.
Natural diamond have very high resistance while they could be easily broken and have unsteady tool life. On the other hand, synthetic diamonds (CVD) have steady tool life. Generally, the bigger radius of diamond can ensure longer tool life. However, the much bigger radius can get grinding wheel to be burned because it makes the grinding wheel's grit blunt.
Customers can choose diamond carat and materials dependent upon working conditions such as wheel size, wheel width, depth of cut, etc.
*Type: Single-point Diamond Dresser
*Material: Natural Diamond; Synthetic Diamond
*Is Customized: Yes, (The tools can be customized according to customer’s requirements)
*ODM & OEM Service: Accept
*MOQ: 5pcs; 10pcs; 100pcs all accept.
Specification:
Specification | Material | Work Area |
C5010—L1509 | CXT+CVDD | Grinding Wheel Diameter<250mm, Grain Size 80#—120# |
C5010—L161616 | CVDD | Grinding Wheel Diameter<250mm, Grain Size 60#—150# |
C5010—L202020 | CVDD | Grinding Wheel Diameter<250mm, Grain Size 46#—150# |
C5010—L501515 | CVDD | Grinding Wheel Diameter<250mm, Grain Size 46#—60# |
C5010—4*L901010 | CXT | Grinding Wheel Diameter<250mm, Grain Size 46#—100# |
C5010—4*L701010 | CVDD | Grinding Wheel Diameter<250mm, Grain Size 46#—60# |
C5010—4*L700808 | CVDD | Grinding Wheel Diameter<250mm, Grain Size 60#—80# |
C5010—4*L700606 | CVDD | Grinding Wheel Diameter<250mm, Grain Size 80#—120# |
C5010—4*L901212 | CVDD+MD | Grinding Wheel Diameter<250mm, Grain Size 46#—100# |
C5010—4*L901212 | CVDD+MD | Grinding Wheel Diameter<250mm, Grain Size 46#—60#For instance, C50 10 —5*L 901515 |
C50: Length of Shank 50mm
10: Diameter of Shank 10mm
5: Amount of Diamond Logs 5
90: Length of Diamond Log 9mm
15: Width of Diamond 1.5mm
15: Thickness of Diamond 1.5mm
