Tungsten Carbide Supported Diamond Die Blanks

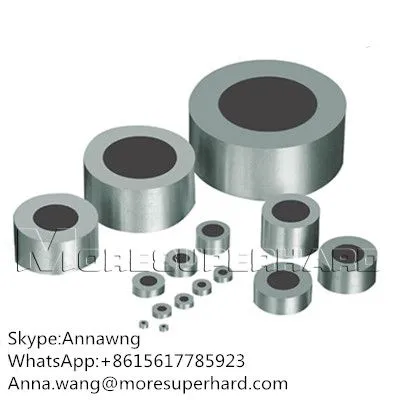

Tungsten Carbide Supported Diamond Die Blanks photo-1

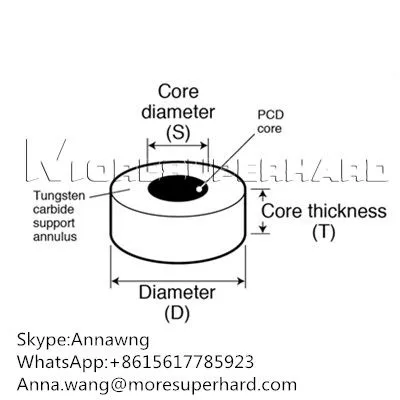

Tungsten Carbide Supported Diamond Die Blanks photo-2

Descriptions Of Tungsten Carbide Supported Diamond Die Blanks:

Tungsten Carbide Supported Diamond Die Blanks Is Manufactured By Means Of Cold Pressing Insertion. Polycrystalline Diamond (PCD) Core Integrally Bonded To A Tungsten-Carbide-Supported Ring Which In Turn Enhances Strength Of Die Blanks. All Blanks Contain Metal Catalyst In PCD Structure. These Features Give The Products Stronger Ability To Withstand Wire Drawing With High Intensity.

Features Of Tungsten Carbide Supported Diamond Die Blanks:

* Special Design Of Taper Shape Makes The Tungsten Carbide Supported Diamond Die Blanks Easy To Distinguish Between The Inlet And The Outlet.

* The Alloy Ring Can Protect The Material To Enable It To Bear Larger Impact.

* The Large External Diameter Of The Alloy Ring Can Provide Enough Centripetal Bearing Force For Diamond&Enough Resisting Force Against Wire Drawing.

Specifications Of Tungsten Carbide Supported Diamond Die Blanks:

ADDMA Code	Product Code	Total Blank Diameter (Mm)	Diamond Diameter (Mm)	Diamond Thickness (Mm)	Maximum Recommended Hole Size (Mm)	Grain Sizes Available (Um)
D12	T4015	8.12	4.0	1.5	1.0	5,10,15,25,50
D15	T4023	8.12	4.0	2.3	1.8	5,10,15,25,50
D18	T4029	8.12	4.0	2.9	2.3	5,10,15,25,50
D21	T7040	13.65	7.0	4.0	3.5	5,10,15,25,50
D24	T7053	13.65	7.0	5.3	4.6	5,10,15,25,50
D27	T13086	24.13	13.0	8.6	6.1	10,15,25,50
D30	T130116	24.13	13.0	11.6	7.6	10,15,25,50
D31	T150120	24.13	15.0	12.0	8.0	25,50
D33	T150150	26.80	15.0	15.0	11.0	25,50
