3G SDI HD BNC connector Right Angled Jack For PCB BNC Connector for CATV
---Specifications:
|
Electrical Characteristics |
Impedance |
50 ohm or 75 ohm |
Frequency Range |
0-4 GHz |
|
|
VSWR (Voltage Standing Wave Ratio) |
Straight type ≦ 1.22/3GHz, R/A type ≦ 1.30/3GHz |
|
Dielectric Withstanding Voltage |
1500 V rms |
|
Working Voltage |
500 V rms |
|
Center Contact Resistance |
≦ 1.5 m Ω (Milliohms max.) |
|
Outer Contact Resistance |
≦ 2.0 m Ω (Milliohms max.) |
|
Insultation Resistance |
≧5 × 10³ m Ω (Milliohms min.) |
|
Mechanical Characteristics |
Coupling |
Bayonet |
Contact Retention |
6 lbs min. |
|
Mating Durability |
≧500 cycles |
|
Environmental Characteristics |
Temperature Range |
Teflon -55℃~+155℃ / POM -40℃~+60℃ |
Coupling Nut Retention |
100 lbs. min. |
|
Vibration |
MIL-STD-202 Meth. 204 |
|
Corrosion Resistance |
MIL-STD-202 Meth. 101 |

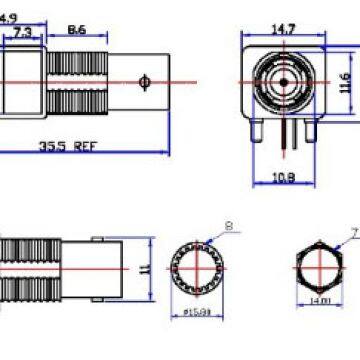

---Drawing:
---Payment & Shipping:
* Payment Terms: T/T, PayPal, West Union, L/C, ect.
* Please contact with me to discuss payment terms and shipping port
