Cheap and High Quality 4 Pins Type C Plug USB Connector Made by Copper Alloy and PBT Used for Data Cable
US$ 0.01 - 0.1
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Brand Name:
CNB electronics
Place of Origin:
China
Model Number:
CNB-UAFRTBBB99-CC
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian
Delivery Detail:
5 days
Related Products
-
9 Pins Blue 3.0 USB Male Connectors With SPCC or Copper Terminals for Cable AssemblyUS$ 0.01 - 0.1MOQ: 1000 Pieces -
OEM 2.0 4 Pin Type A Female USB Connector USB Port Plug From Shenzhen ManufacturerUS$ 0.1 - 0.5MOQ: 1000 Pieces
-
OEM 4 Pin Type A USB Connector From Shenzhen ManufacturerUS$ 0.1 - 0.5MOQ: 5000 Pieces
-
Flameproof Female USB 2.0 Connector With CE RoHS SGSUS$ 0.1 - 0.5MOQ: 1000 Pieces
-
Short Solder A Type USB 2.0 Male Connector With HousingUS$ 0.1 - 0.5MOQ: 1000 Pieces
Brand Name
CNB electronics
Place of Origin
China
Model Number
CNB-UAFRTBBB99-CC
Cheap and High Quality 4 Pins Type C plug USB Connector made by Copper Alloy and PBT Used for Data Cable
---Specifications:
| Model No. | CNB-UAFRTBBB99-CC | ||
| Material | Contact | Copper Alloy (C2680) | |
| Shell | Copper Alloy (C2680)/SUS | ||
| Housing | PBT / LCP | ||
| Finish | Contact | 1u Au Plated ON Contact Area Over 60~80U Ni, Sn Plated On Solder Tails |
|
| Shell | Ni Plated 100u | ||
| Plating Time | 24 Hours/48 Hours | ||
| Electrical Characteristic |
Contact Resistance | 30mΩ Max | |
| Insulation Resistance | 1000mΩ Min | ||
| Rated Current | 1.5A | ||
| Rated Voltage | 30V | ||
| Dielectric Withstanding Viltage |
500V AC for 1 minute | ||
| Environmental | Opterating Temperature | -55~85℃ | |
| Mechanical Characteristic |
Duribility | 10000 cycles | |
| Insertion Force | 35N (3.57kgf) Max | ||
| Unnmating Force | 10N (1.02kgf) Min | ||

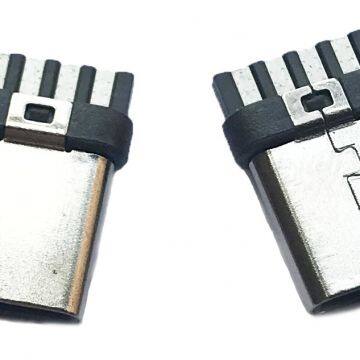

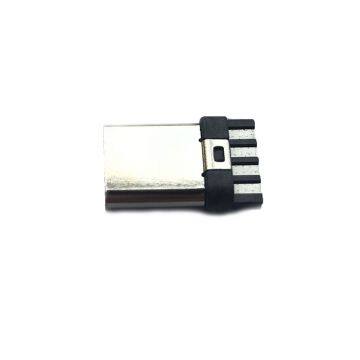

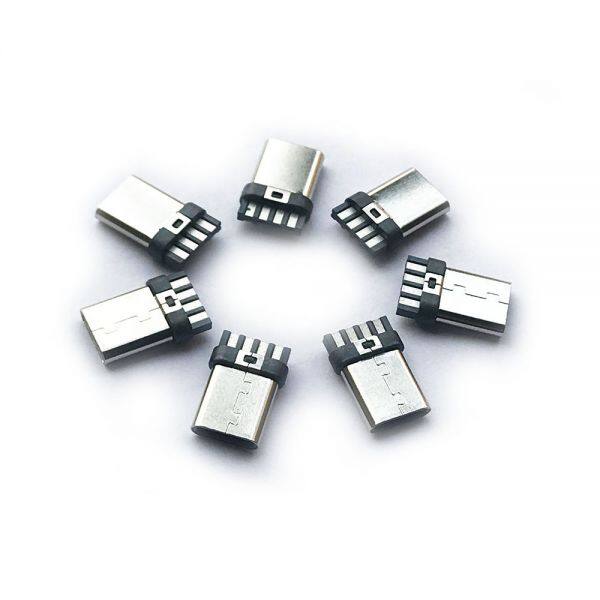

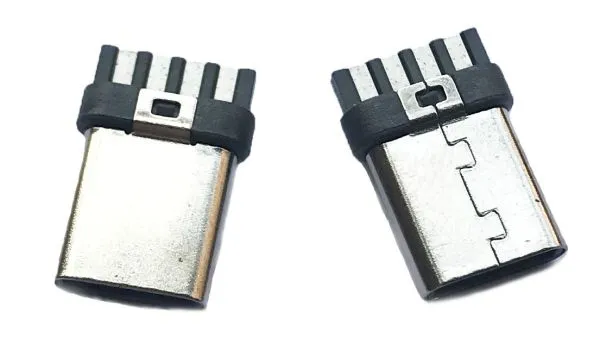

--- Details:

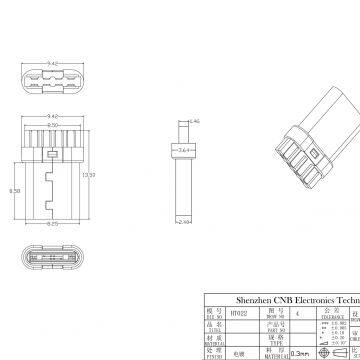

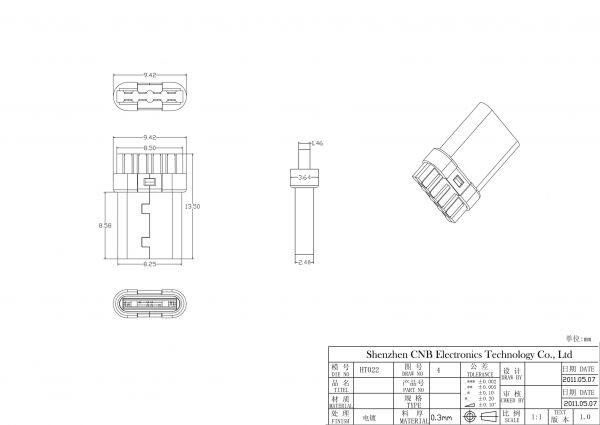

---Drawing:
---Packaging:
* 1000pcs in a bag
* 10 bags in a carton
* the size of carton: 36.5*24.5*20 cm
* Weight: about 8.5kg (500pcs in one carton)
---Payment & Shipping:
* Payment Terms: T/T, PayPal, West Union, L/C, ect.
* Please contact with me to discuss payment terms and shipping port
* Contact Person:
