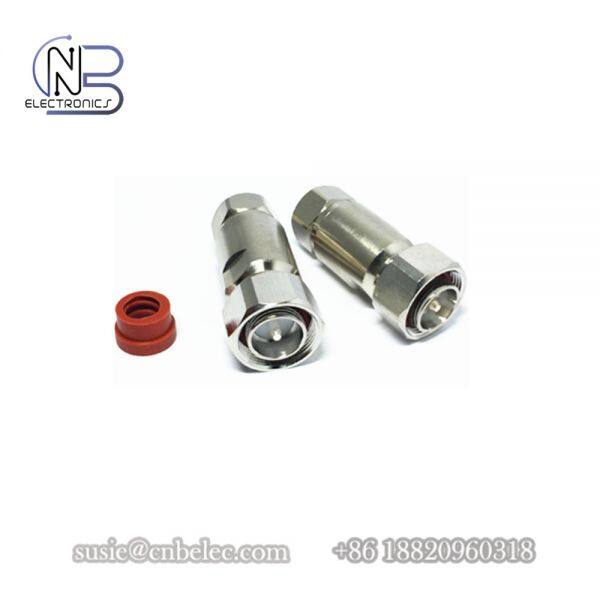

4.3 - 10 mini din 4310 RF Male connectors for 1 / 2 super flexible coxical cables
---Specifications:
Electrical Specifications | |
Impedance |
50 ohm |
Frequency |
DC-3GHz |
VSWR |
≤1.10 (DC-2.2GHz); ≤1.15 (2.2-3GHz) |
Dielectric Strength |
≥2500V RMS, at sea level |
Dielectric Resistance |
≥5000MΩ |
Insertion Loss |
≤0.12dB (@2200MHz) |
Center contact resistance |
≤1.0mΩ |
Outer contact resistance |
≤0.25mΩ |
PIM (900MHz, 1800MHz 2×20W) |
≤-155dBc |
Mechanical Feature | |
Mating cycles |
≥500 times |
Termination cable retention |
≥500N |
Apply with the electric cable |
1/2 Super flexible Cable |
Environmental parameters | |
Temperature range |
-40℃ to +85℃ |
Environmental standards |
RoHs |
---Drawing:
---Payment & Shipping:
* Payment Terms: T/T, PayPal, West Union, L/C, ect.
* Please contact with me to discuss payment terms and shipping port
* Contact Person:
