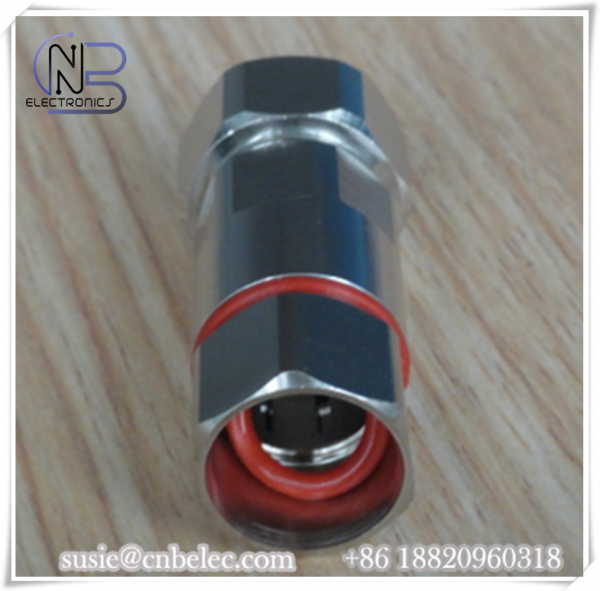

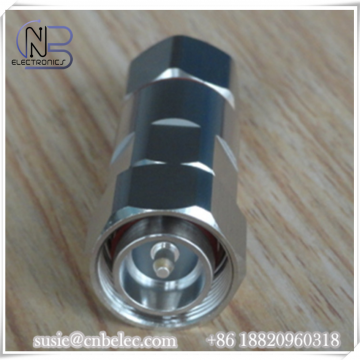

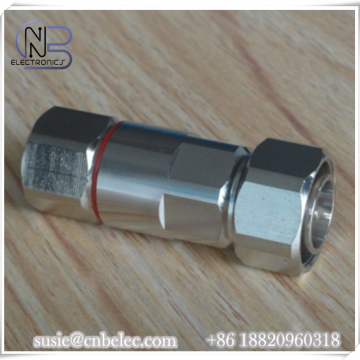

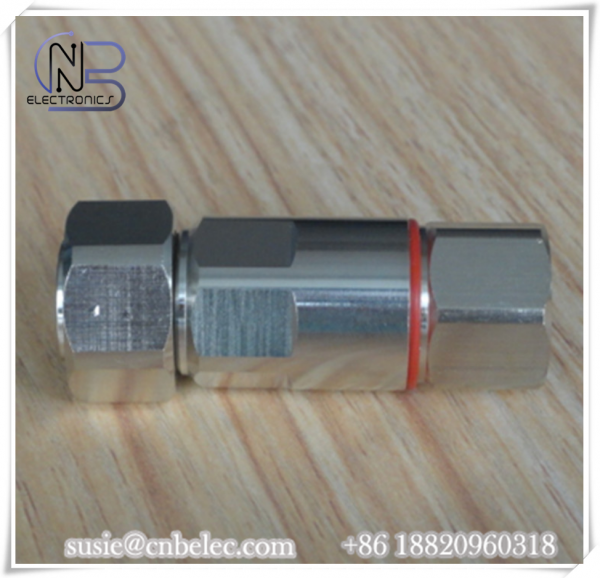

RoHS 4.3/10 MINI DIN Male RF Feeder Connectors made by fined copper alloy For 1/2

Name: RoHS 4.3/10 MINI DIN Male RF Feeder Connectors made by fined copper alloy For 1/2
Brand: CNB electronics
Price: USD $0.01 - 0.1 / Piece

FOB Price

USD $0.01 - $0.1 / Piece

100 Pieces(Min.Order)

Supply Ability 1500000 Piece / Pieces per Month
Port Yantian
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Delivery Detail:5 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

CNB electronics

Place of Origin:

China

Model Number:

CNB-RFBM4310

Product Description

RoHS 7 / 16 DIN Male RF Feeder Connectors made by fined copper for 1 / 2 " Super flexible Cable

---Specifications:

Product Description
1). Cable Type:		for 1/2 superflex cable
2). Cable Length:
Inner Conductor		Copper
Dielectric		Physical Foam Polyethylene
Outer Conductor		Helical Copper
Jacket		PE
3). Connectors		DIN 7/16 MALE
Inner Conductor Pin		Brass/silver Plating
Body&Outer Conductor		Brass/CuSnZn Plating
Insulator		PTFE
Gasket		Silicone Rubber
Nut		Brass/CuSnZn Plating

Electrical Characteristics
Characteristics Impedance		50 Ohm
Frequency Range		DC~3GHz
Insulation Resistance		≥5000MΩ
Dielectric Withstanding Voltage		2500V rms (DC)
Operating Voltage		1000V rms
Insertion Loss	@DC-3.0 GHz	≤0.15
VSWR	@DC-3.0 GHz	≤1.15
PIM		≤-155DBC

Environmental and Mechanical Specifications
Durability (matings)		≥500 cycles
Mechanical Shock Test Method		MIL-STD-202, Method 213, Test Condition D
Vibration Test Method		MIL-STD-202, Meth. 204, Cond. A
Temperature Range		-40°C to +85°C
RoHS		Compliant
Sealing Class		IP67

The facts and figures contained herein are carefully complied to the best of our knowledge, but they are intended for general informational purposes only.

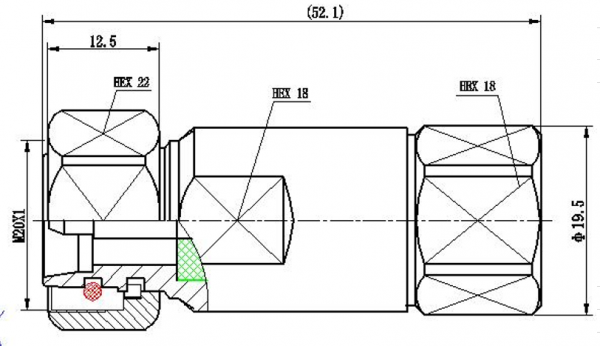

---Drawing:

---Packaging:

* 200 pcs per carton
* Carton's size: 21x23x37 cm
* Weight/carton: 0.072KG/PC,14.5kg/carton
