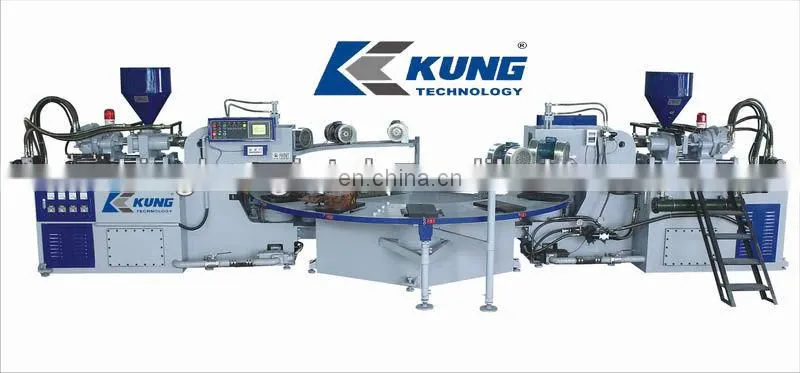

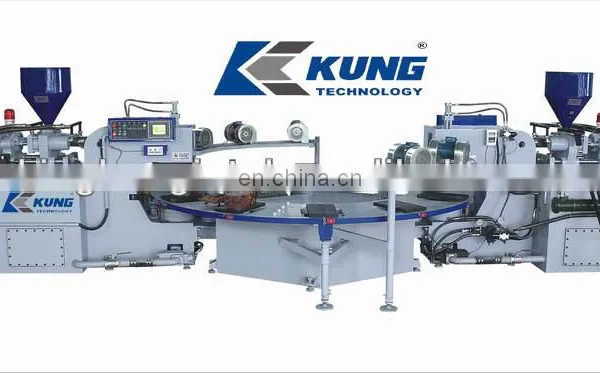

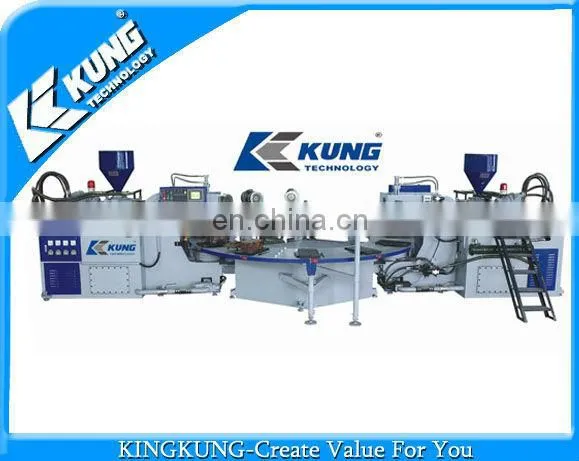

Small-Scale Automatic Two Color Shoes Injection Machine
1. Many brands for you choose
2. Engineers available to service machinery overseas
3. We also can offer the high quality second hand plastic injection machine, we change the main spare parts, so the machine looks almost new.
4. We are specialized in making Plastic injection moulds and can make new drawing according to customer,s request if any design need change.
5. We can offer many newly styles for you reference.
6. We also can offer the raw material for you according to your request.
If any new inquiry, pls feel free contact with us! We will offer you the high quality goods
Features:
1.The machine specially for kinds of TPR & PVC single color and double color Sole and Upper.
2.The reasonable material configure make the output capacity high and power of the whole machine low, save much power for the foot wear factory.
3.The specially designed assembly system. The action that the high speed mould close change to low speed and the pressure adding finished by the system inside. The speed much higher than the machine used to be.
4.Electrical system made by PLC touch control screen. Steady and Easily control and Change the parameter
Technical Terms |
Unit of Paramter |
HJ-6220B |
Injection Capacity |
g |
600x1/480x1 |
Injection precision |
g |
±0.45 |
Injection hydraulic presure |
Mpa |
12 |
Screw rotary speed |
r/min |
0-200 |
Injection speed |
CM/sec |
10 |
Molud clamping force |
Ton |
90 |
system hydraulic presure |
Mpa |
16 |
Max.injection stroke |
mm |
180 |
Molud opening stroke |
mm |
200 |
Oil tank capacity |
KG |
560 |
Heating power |
Kw |
11/9 |
Power of motor |
kw |
15/11 |
Mould station number |
a |
20 |
Max.dimension of mould |
M |
8.5x3.6x2 |
Machine werght |
Ton |
12.5 |
Our machine factory pic:
If any new inquiry, plsl let us know, w ewill reply you asap! Thank you very much!
