Specifications
Specially producing all kings of single/double/three colors soles of sports shoes, slipper, sandal, sole of casual shoes.

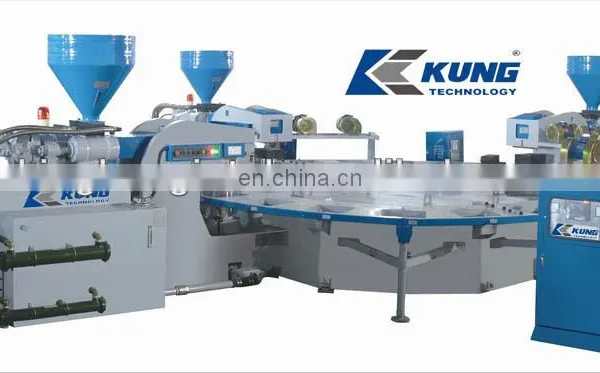

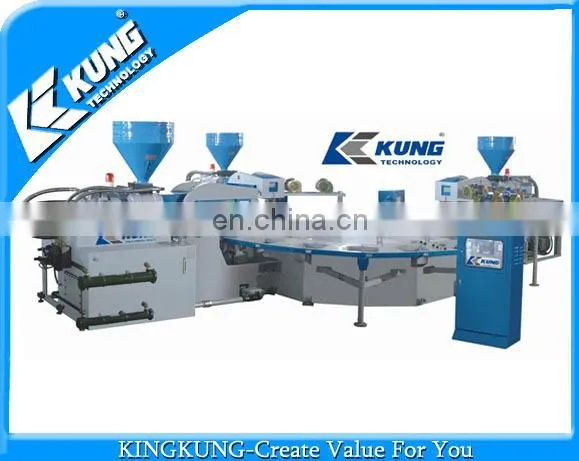

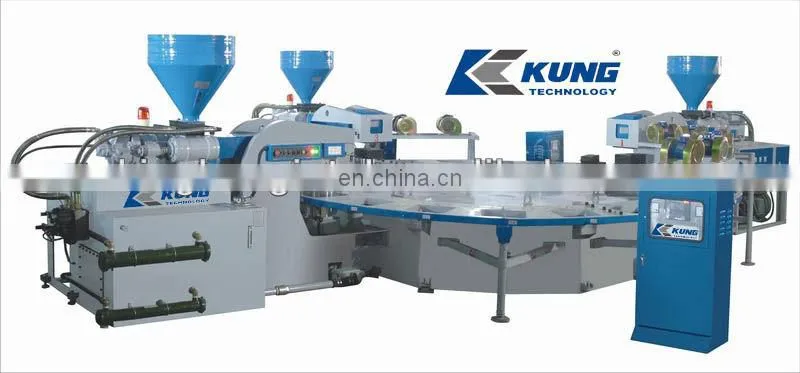

Full-Automatic Type Three-Color Plastic Shoes Injection Moulding Machine
1. Many brands for you choose
2. Engineers available to service machinery overseas
3. We also can offer the high quality second hand plastic injection machine, we change the main spare parts, so the machine looks almost new.
4. We are specialized in making Plastic injection moulds and can make new drawing according to customer,s request if any design need change.
5. We can offer many newly styles for you reference.
6. We also can offer the raw material for you according to your request.
If any new inquiry, pls feel free contact with us! We will offer you the high quality goods
Features:
1.Specially producing all kings of single/double/three colors soles of sports shoes, slipper, sandal, sole of casual shoes, ladies and gentlemen's shoes, etc.
2.Specially for producing the foaming, unfoaming soles of thermoplastic materials, PVC, TPR or TPU.
3.Full automatic computer controlling system, with pressure and flow proportional control, can control its technological requirements of different mould.
4.Adopts import linear potentiometer to control plastic volume. The injection accuracy is up to 0.lmm, and then ensures its stable quality.
5.The heating zone adopts advanced electronis solid relay. It can frequently electrify for long time without any the temperature will be shown on the control box.
6.Aoutomratic adjustment system of mould parallelizing can ensure regular products with smooth edge.
7.With strong close mould base and lock mould power, close mould at one step, three colors material injected simultaneously to save time and increase production and profit.
8.This machine can produce single, double and three colors products.
9.The output is about 180 pairs per hour.
Technical terms |
Unit of parmerter |
HJ-6324B |
Injection Capaclty |
g |
780x1/620x2 |
Injection precision |
g |
±0.45 |
Injection Hydraulic pressure |
Mpa |
12x3 |
Screw rotary speed |
r/min |
0-200 |
Injection Speed |
CM/sec |
10 |
Mould clamping froce |
Ton |
90 |
System hydraulic pressure |
Mpa |
16 |
Max.injection stroke |
MM |
200 |
Mould-opening stroke |
MM |
300 |
Oil tank capacity |
Kg |
720 |
Heating power |
Kw |
10 |
Power of motor |
Kw |
18.5x3 |
Mould station number |
a |
24 |
Max.dimension of machine |
M |
10x8.5x2.2 |
Machine weigh |
Ton |
25.5 |

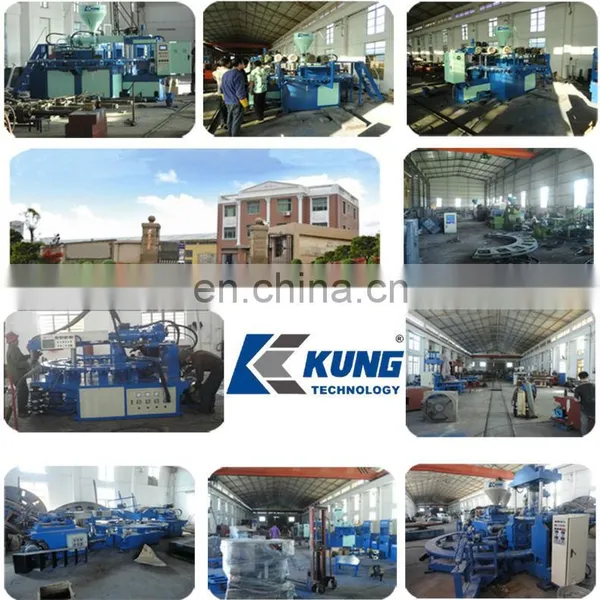

Our machine factory pic:
